About the CNCHat PCB

CNCHat is an open source PCB design by kajusK, published on GitHub. It is a 2-layer board measuring 85 × 56 mm, with 98 components from 42 distinct parts.

Other key parts include the 74HC4050, AP1117-33 and MIC6211YM5. By type, the board carries 43 resistors, 17 connectors, 16 diodes, 11 capacitors, 7 ICs and 2 transistors.

It belongs with the robotics & motion and dev boards & breakouts designs in this gallery.

From the project

OrangePi CNC shield for LinuxCNC

This repo contains a HW design files for OrangePi CNC shield for making the OrangePi a LinuxCNC machine.

The allwincnc project can be used to do the realtime heavy lifting (stepper control) while the OrangePi does the slower tasks (kinematics calculations,...).

More details about making this all work with a real CNC machine can be found on my blog

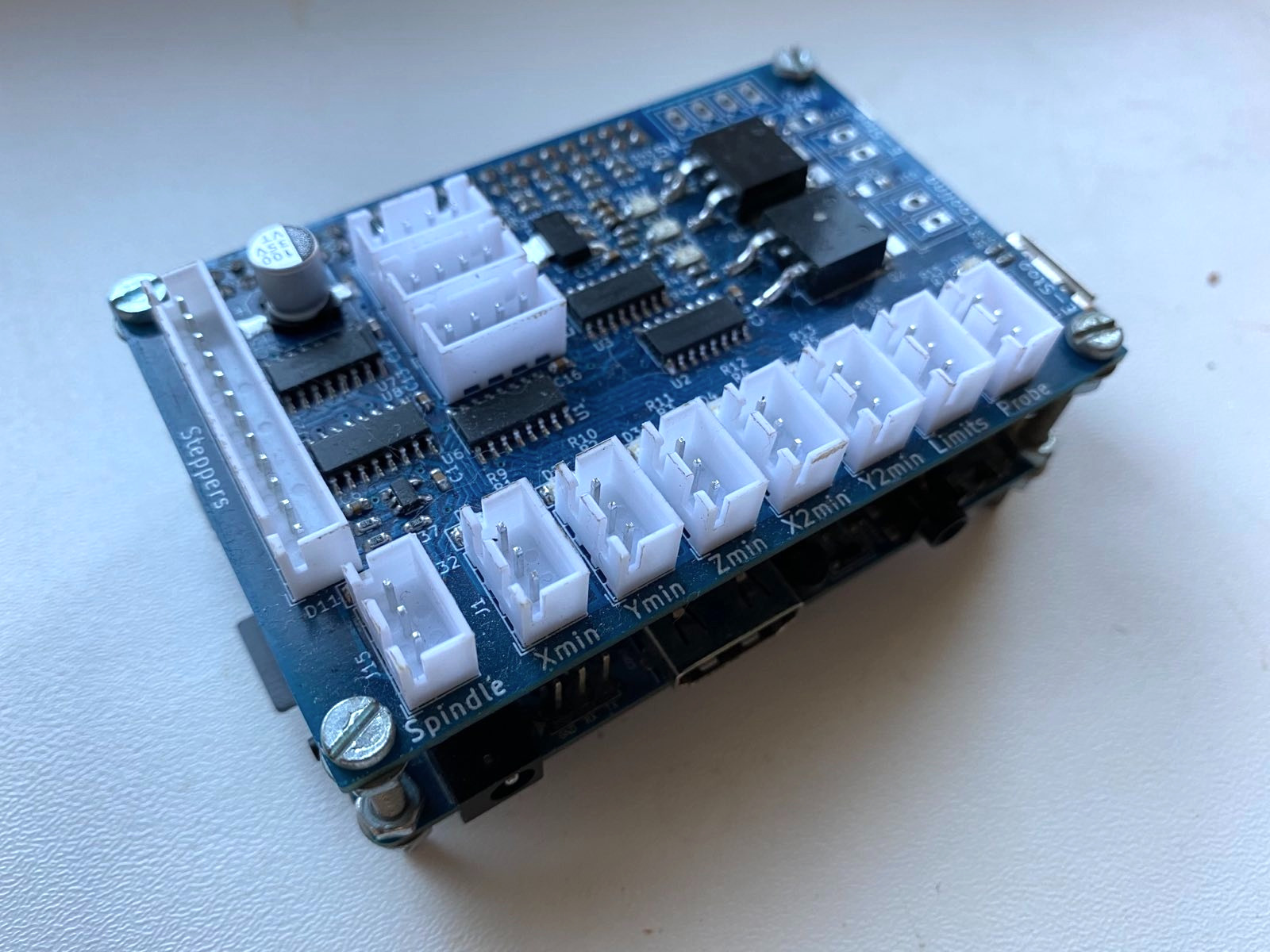

CNCHat, from the project README
From the project README

Main components on the CNCHat

74HC4050AP1117-33MIC6211YM5

CNCHat bill of materials (BOM)

98 components, 42 distinct parts.

QtyPartRefs
5
74HC4050
U1, U2, U3, U7, U8
1
AP1117-33
U4
1
MIC6211YM5
U6
2
BUK9675-55A
Q1, Q2
1
X_MIN
J1
1
Y_MIN
J2
1
Z_MIN
J3
1
X2_MIN
J4
1
Y2_MIN
J5
1
LIMITS
J6
1
PROBE
J7
1
ESTOP
J8
1
PWR
J9
1
ESTOP
J10
1
ENC_A
J11
1
ENC_B
J12
1
ENC_C
J13
1
Orange
J14
1
SPINDLE
J15
1
COOLING
J16
Show 22 more
QtyPartRefs
1
STEPPERS
J21
1
3413.0332.22
F1
1
MP005467
F2
8
LED
D1, D2, D3, D4, D5, D6, D7, D8
1
24V
D9
1
COOLING
D10
1
SPINDLE
D11
1
5V
D12
1
3V3
D13
1
ESTOP
D14
2
S1JL
D15, D16
7
100n
C1, C3, C12, C13, C14, C16, C17
2
10u
C2, C4
1
1u
C6
1
100u
C15
7
1k
R1, R2, R3, R4, R5, R6, R7
19
10k
R8, R17, R18, R19, R20, R21, R22, R23 +11
12
330
R9, R10, R11, R12, R13, R14, R15, R16 +4
1
2k2
R31
1
680
R33
1
20k
R37
2
100
R42, R43

CNCHat design files

The KiCad project lives in the kajusK/CNCHat repository on GitHub; these links point at the commit this page was built from.

CNCHat: common questions

How big is the CNCHat PCB?

The CNCHat measures 85 × 56 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CNCHat?

98 components, from 42 distinct parts. The full bill of materials is listed on this page.

Where can I download the CNCHat design files?

From the kajusK/CNCHat repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the CNCHat design in my own project?

The repository has no license, so all rights stay with kajusK. Use it as a reference, and ask the author before reusing the design.
