About the Arctyx-Nano PCB

Arctyx-Nano is an open source RP2040/RP2350 PCB design by Keyaan-07, published on GitHub under the MIT license. It is a 4-layer board measuring 51 × 21 mm, with 63 components from 25 distinct parts.

Its main chip is the RP2350A-QFN60, from the RP2040/RP2350 family. Other key parts include the ICE40UP5K-SG48ITR, W25Q128JVP, RT8075ZQW and TJ-S1608SW6TDSLCCYRGB-A5. By type, the board carries 24 capacitors, 20 resistors, 6 diodes, 5 ICs, 3 connectors and 3 inductors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

An open-source FPGA development board in RaspberryPi Pico form factor.

Arctyx Nano is an FPGA development board carrying the ICE40UP5K FPGA from Lattice. It also carries RP2350A from Raspberry Pi.

Open to contributions in both software and hardware!

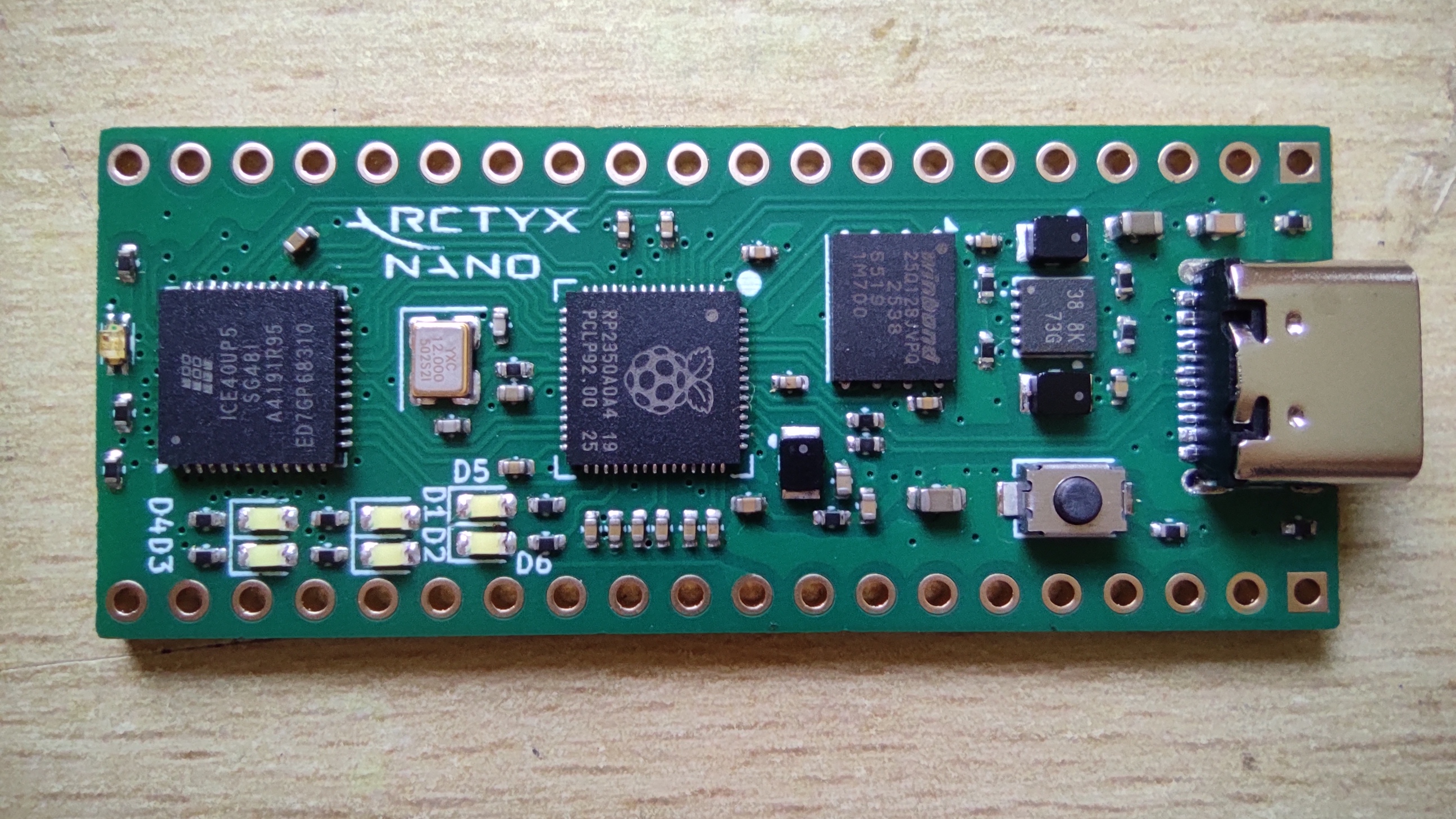

Arctyx-Nano, from the project README — From the project README

Main components on the Arctyx-Nano

ICE40UP5K-SG48ITR RP2350A-QFN60 W25Q128JVP RT8075ZQW TJ-S1608SW6TDSLCCYRGB-A5

Arctyx-Nano bill of materials (BOM)

63 components, 25 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	ICE40UP5K-SG48ITR	QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm	U1
1	RP2350A-QFN60	RP2350A_QFN-60_EP_7.75x7.75_Pitch0.4mm	U2
1	W25Q128JVP	WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm	U3
1	RT8075ZQW	WDFN-10_L3.0-W3.0-P0.50-BL-EP	U4
1	TJ-S1608SW6TDSLCCYRGB-A5	LED-ARRAY-SMD_4P-L1.6-W0.8-BL-FD	U5
1	CRYSTAL_GND24 Crystal_GND24	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P	USB_C_Receptacle_XKB_U262-16XN-4BVC11	J1
2	CONN_01X20_PIN Conn_01x20_Pin	PinHeader_1x20_P2.54mm_Vertical	J2, J3
1	SW_Push	SW-SMD_L3.9-W3.0-P4.45	SW1
6	LED	LED_0603_1608Metric	D1, D2, D3, D4, D5, D6
3	AOTA-B201610S3R3-101-T	IND-SMD_L2.0-W1.6_AOTA-B201610S3R3-101-T	L1, L2, L3
2	15P 15p	C_0402_1005Metric	C1, C2
5	4.7U 4.7u	C_0402_1005Metric	C3, C4, C5, C16, C23
14	100N 100n	C_0402_1005Metric	C6, C7, C8, C9, C10, C11, C12, C13 +6
2	22U 22u	C_0603_1608Metric	C20, C22
1	10U 10u	C_0603_1608Metric	C24
2	5.1K 5.1k	R_0402_1005Metric	R1, R2
2	27	R_0402_1005Metric	R3, R4
2	1k	R_0402_1005Metric	R5, R7
1	33	R_0402_1005Metric	R6

Show 5 more

Qty	Part	Footprint	Refs
2	51K 51k	R_0402_1005Metric	R9, R10
1	22K 22k	R_0402_1005Metric	R11
1	100K 100k	R_0402_1005Metric	R12
1	120	R_0402_1005Metric	R13
8	100	R_0402_1005Metric	R14, R15, R16, R17, R18, R19, R20, R21

Arctyx-Nano design files

The KiCad project lives in the Keyaan-07/Arctyx-Nano repository on GitHub; these links point at the commit this page was built from.

Arctyx-Nano: common questions

What microcontroller does the Arctyx-Nano use?

The Arctyx-Nano is built around the RP2350A-QFN60, from the RP2040/RP2350 family.

How big is the Arctyx-Nano PCB?

The Arctyx-Nano measures 51 × 21 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Arctyx-Nano?

63 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Arctyx-Nano design files?

From the Keyaan-07/Arctyx-Nano repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Arctyx-Nano design in my own project?

Yes, under the terms of its MIT license, which Keyaan-07 chose for the repository.

Can I test firmware for the Arctyx-Nano without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
