About the RP2040-mini-SDR PCB

RP2040-mini-SDR is an open source RP2040/RP2350 PCB design by Keyaan-07, published on GitHub under the MIT license. It is a 4-layer board measuring 74.3 × 20 mm, with 51 components from 25 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the PSA4-5043+, ADE-11X+, SI5351A-B-GTR, GALI-84+ and ADCS7476AIMFX/NOPB. By type, the board carries 26 capacitors, 8 ICs, 7 resistors, 4 inductors, 2 crystals and 2 connectors.

It belongs with the rf & radio designs in this gallery.

From the project

An attempt to make an SDR using the RP2040.

I am in no way an RF expert and would love it if someone pointed out my errors and mailed them to me or DM on hackclub Slack

I think I am gonna make another RF board that could legally transmit too! but that's just an idea for now.

I am not making a 3D model for this project as i feel this is not required for now.

So, i planned to make out an SDR using the goated RP2040 chip and a few mixers and oscillators.

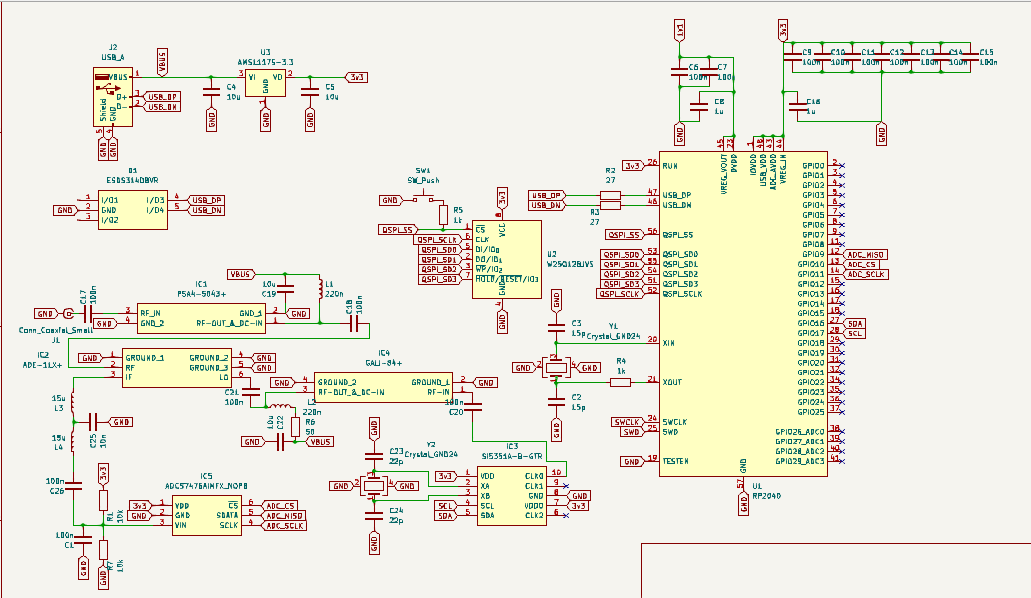

RP2040-mini-SDR, from the project README — From the project README

Main components on the RP2040-mini-SDR

PSA4-5043+ADE-11X+SI5351A-B-GTR GALI-84+ADCS7476AIMFX/NOPB RP2040 W25Q128JVS AMS1117S-3.3

RP2040-mini-SDR bill of materials (BOM)

51 components, 25 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	PSA4-5043+	PSA45043	IC1
1	ADE-11X+	ADE-11X+_SOTFL254P691X284-6N	IC2
1	SI5351A-B-GTR	SI5351_SOP50P490X110-10N	IC3
1	GALI-84+	GALI5	IC4
1	ADCS7476AIMFX/NOPB ADCS7476AIMFX_NOPB	ADCS7476_SOT95P280X145-6N	IC5
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	W25Q128JVS	SOIC-8_5.3x5.3mm_P1.27mm	U2
1	AMS1117S-3.3	SOT-89-3	U3
2	CRYSTAL_GND24 Crystal_GND24	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1, Y2
1	Conn_Coaxial_Small	SMA_Amphenol_132289_EdgeMount	J1
1	USB_A	USB_A_Connfly_DS1098_Horizontal	J2
1	SW_Push	SW_SPST_PTS810	SW1
1	ESDS314DBVR	ESDS314BVR_SOT95P280X145-5N	D1
2	220N 220n	L_0805_2012Metric	L1, L2
2	15U 15u	L_0805_2012Metric	L3, L4
15	100N 100n	C_0402_1005Metric	C1, C6, C7, C9, C10, C11, C12, C13 +7
2	15P 15p	C_0402_1005Metric	C2, C3
4	10U 10u	C_0805_2012Metric	C4, C5, C19, C22
2	1u	C_0402_1005Metric	C8, C16
2	22P 22p	C_0402_1005Metric	C23, C24

Show 5 more

Qty	Part	Footprint	Refs
1	10N 10n	C_0402_1005Metric	C25
2	10K 10k	R_0402_1005Metric	R1, R7
2	27	R_0402_1005Metric	R2, R3
2	1k	R_0402_1005Metric	R4, R5
1	50	R_0402_1005Metric	R6

RP2040-mini-SDR design files

The KiCad project lives in the Keyaan-07/RP2040-mini-SDR repository on GitHub; these links point at the commit this page was built from.

RP2040-mini-SDR: common questions

What microcontroller does the RP2040-mini-SDR use?

The RP2040-mini-SDR is built around the RP2040, from the RP2040/RP2350 family.

How big is the RP2040-mini-SDR PCB?

The RP2040-mini-SDR measures 74.3 × 20 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the RP2040-mini-SDR?

51 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RP2040-mini-SDR design files?

From the Keyaan-07/RP2040-mini-SDR repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RP2040-mini-SDR design in my own project?

Yes, under the terms of its MIT license, which Keyaan-07 chose for the repository.
