About the KnGXT PCB
KnGXT is an open source RP2040/RP2350 PCB design by kodachi614, published on GitHub. It is a 2-layer board measuring 94 × 108.4 mm, with 106 components from 17 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AMS1117-3.3, W25Q128JVS and 74125. By type, the board carries 48 capacitors, 29 LEDs, 16 diodes, 6 resistors, 4 ICs and 1 crystal.
It belongs with the keyboards designs in this gallery.
From the project
MacroPaw PCB

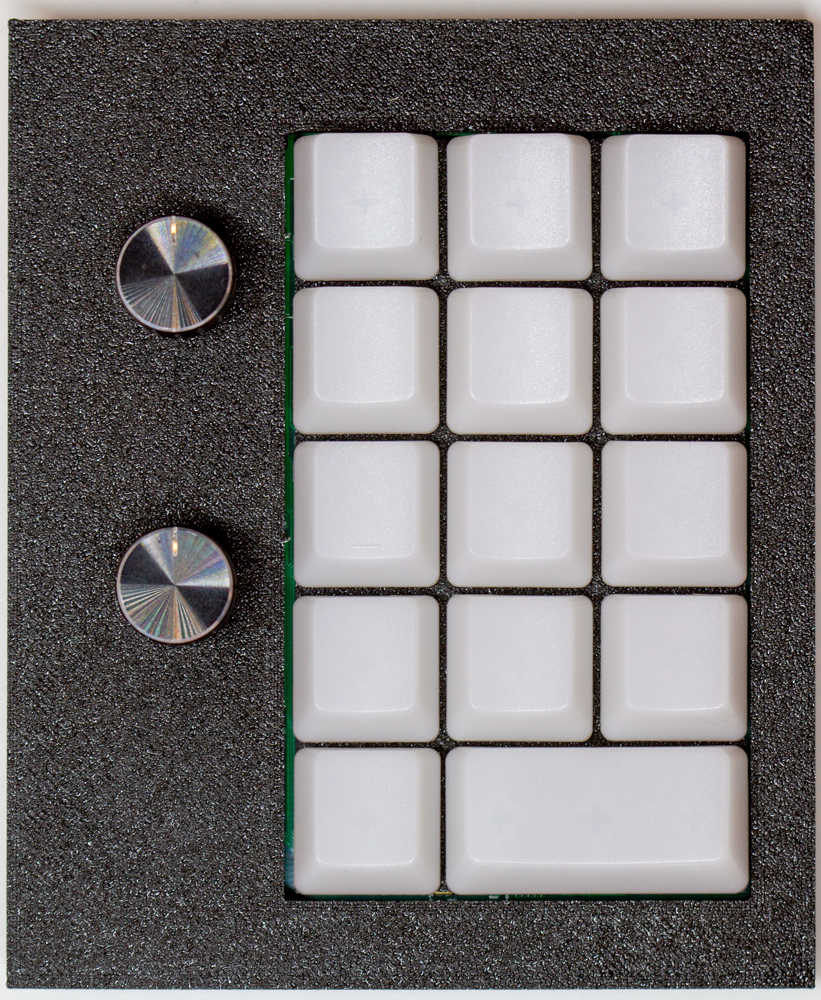

The MacroPaw keypads are a line of small yet fully-customizable mechanical keyboards. (The name was originally from my son, years ago when he was young, and the "paw" motif has kinda stuck.) The core of the MacroPaws is a Raspberry Pi RP2040 with 16MiB of flash memory, a USB-C connector, and an attached key matrix and RGB LEDs (which may or may not be under the keys). Some MacroPaws have more capability than others; all are crazy customizable by writing Python code. (Yes. Python. On a keyboard. It's insane and wonderful to live in the future.)

Main components on the KnGXT
KnGXT bill of materials (BOM)
106 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | W25Q128JVS | SOIC-8_5.23x5.23mm_P1.27mm | U2 |
| 1 | RP2040 | RP2040-QFN-56 | U3 |
| 1 | 74125 | TSSOP-14_4.4x5mm_P0.65mm | U4 |
| 1 | 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | USB_C_ReceptacleUSB2.0 | USB_C_Receptacle_Palconn_UTC16-G | J1 |
| 1 | SW_Push | SW_SPST_TL3342 | SW17 |
| 29 | WS2812B | LED XL-3528RGBW-WS2812B (3.5x2.8, C2890364) | NP0, NP2, NP3, NP4, NP5, NP6, NP7, NP8 +21 |
| 16 | 1N4148 | D_SOD-323F | D1, D2, D3, D4, D5, D6, D7, D8 +8 |
| 34 | 10uF | C_0402_1005Metric | C0, C1, C2, C3, C4, C5, C6, C7 +26 |
| 10 | 100nF | C_0402_1005Metric | C33, C34, C35, C36, C37, C38, C39, C40 +2 |
| 2 | 1uF | C_0402_1005Metric | C43, C44 |
| 2 | 30pF | C_0402_1005Metric | C46, C47 |
| 2 | 5.1k | R_0402_1005Metric | R1, R2 |
| 1 | 1k | R_0402_1005Metric | R3 |
| 1 | 1k | C_0402_1005Metric | R4 |
| 2 | 27 | C_0402_1005Metric | R5, R6 |
KnGXT design files
The KiCad project lives in the kodachi614/macropaw repository on GitHub; these links point at the commit this page was built from.
KnGXT: common questions
What microcontroller does the KnGXT use?
The KnGXT is built around the RP2040, from the RP2040/RP2350 family.
How big is the KnGXT PCB?
The KnGXT measures 94 × 108.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KnGXT?
106 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the KnGXT design files?
From the kodachi614/macropaw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the KnGXT design in my own project?
The repository has no license, so all rights stay with kodachi614. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the KnGXT without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
