Window roller shutter control

Kriechi·window-roller-shutter-control·pcb/window-shutter-relay-esp8266.kicad_pcb

Window roller shutter control PCB layout, top view — open source ESP8266 board by Kriechi

About the Window roller shutter control PCB

Window roller shutter control is an open source ESP8266 PCB design by Kriechi, published on GitHub under the MIT license. It is a 2-layer board measuring 91.4 × 185.4 mm, with 43 components from 15 distinct parts.

Its main chip is the NodeMCU1.0(ESP-12E), from the ESP8266 family. Other key parts include the AMS1117-5.0, ESP-12E and AMS1117-3.3. By type, the board carries 8 connectors, 6 transistors, 6 relays, 6 diodes, 6 resistors and 4 ICs.

It belongs with the iot & wireless designs in this gallery.

From the project

This project contains a 3-gang electric/motorized window roller shutter control based on an ESP8266. The following resources are included:

This project contains a 3-gang electric/motorized window roller shutter control based on an ESP8266. The following resources are included:

Full schematics and PCB designs in KiCAD 5 with all footprints generated Gerber files ready to send to PCB manufacturer exported as PDF file Microcontroller ESP8266 firmware source code with WiFi connectivity and remote over-the-air update for control via MQTT and a web interface 3D-printable enclosure * in 3MF and STL file formats

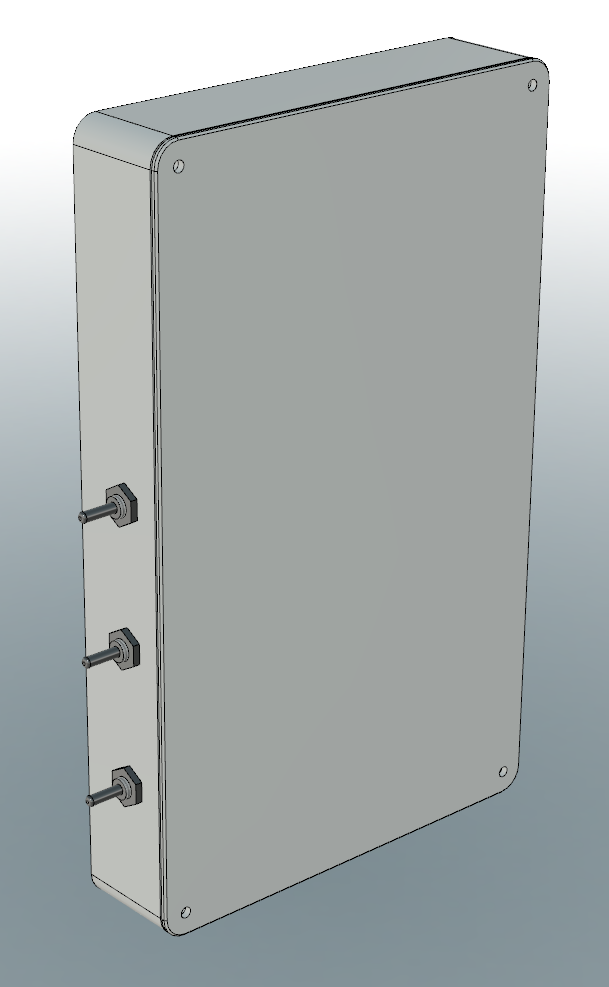

Window roller shutter control, from the project README
From the project README

Main components on the Window roller shutter control

NodeMCU1.0(ESP-12E)AMS1117-5.0ESP-12EAMS1117-3.3

Window roller shutter control bill of materials (BOM)

43 components, 15 distinct parts.

QtyPartRefs
1
NodeMCU1.0(ESP-12E)
U1
1
AMS1117-5.0
U2
1
ESP-12E
U3
1
AMS1117-3.3
U4
6
Q_NPN_BCE
Q1, Q2, Q3, Q4, Q5, Q6
1
Barrel_Jack
J0
3
Terminal_01x03
J1, J2, J3
1
USB_B_Micro
J4
2
Conn_01x02_Male
J5, J6
1
Conn_01x03_Male
J7
6
SRD-05BDC-SL-C
K1, K2, K3, K4, K5, K6
3
SW_SPDT
SW1, SW2, SW3
6
DIODE
D1, D2, D3, D4, D5, D6
4
CAP
C1, C2, C3, C4
6
220
R1, R2, R3, R4, R5, R6

Window roller shutter control design files

The KiCad project lives in the Kriechi/window-roller-shutter-control repository on GitHub; these links point at the commit this page was built from.

Window roller shutter control: common questions

What microcontroller does the Window roller shutter control use?

The Window roller shutter control is built around the NodeMCU1.0(ESP-12E), from the ESP8266 family.

How big is the Window roller shutter control PCB?

The Window roller shutter control measures 91.4 × 185.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Window roller shutter control?

43 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Window roller shutter control design files?

From the Kriechi/window-roller-shutter-control repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Window roller shutter control design in my own project?

Yes, under the terms of its MIT license, which Kriechi chose for the repository.

Can I test firmware for the Window roller shutter control without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
