Ksoloti power midi board
About the Ksoloti power midi board
Ksoloti power midi board is an open source PCB design by ksoloti, published on GitHub. It is a 2-layer board measuring 72 × 32 mm, with 38 components from 22 distinct parts.
Other key parts include the TPS5430DDA and 74HC14. By type, the board carries 12 capacitors, 11 resistors, 6 connectors, 5 diodes, 2 ICs and 1 inductor.
It belongs with the audio designs in this gallery.

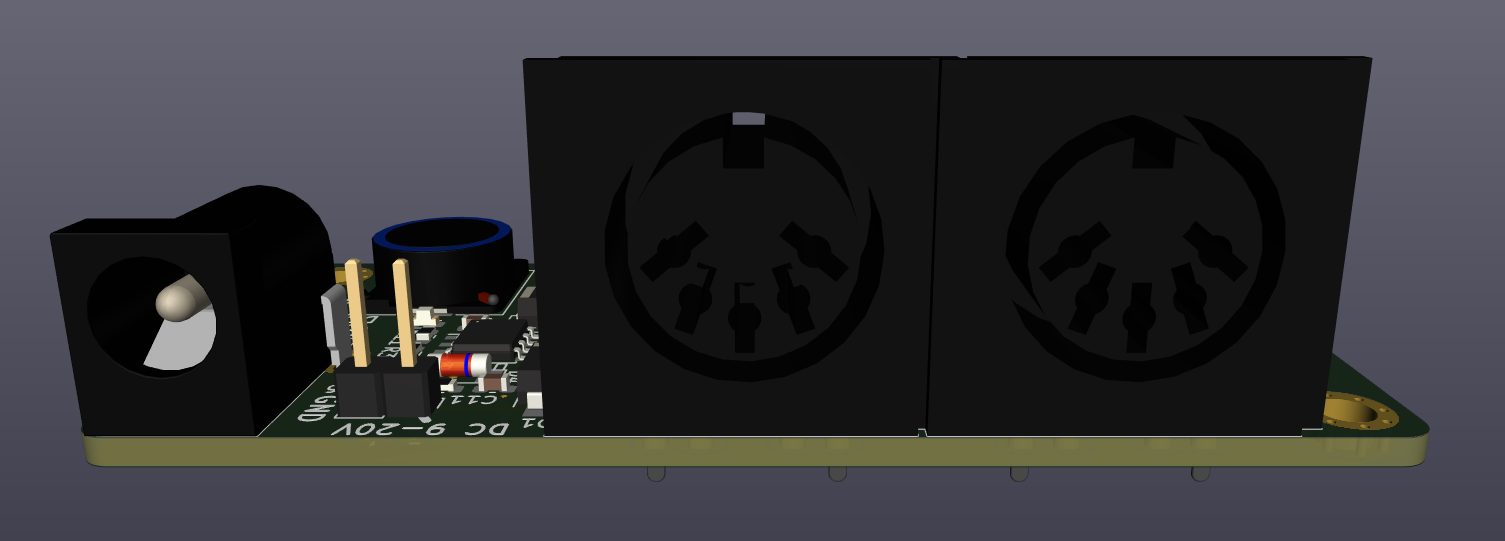

From the project
A collection of hardware projects around the Ksoloti Core.
Libraries not included, you should be able to retrieve any custom symbols and footprints via the project itself.
3D models not included, always such a hassle with those files, can't be a%$ed.
Gerbers, BOM and CPL (placement) files for JLC included. You should be able to have the board with all SMD parts produced. The remaining (through-hole) parts required are all quite common: 2.54mm headers, DIN-5 MIDI jacks, DC barrel jack...
Main components on the Ksoloti power midi board
Ksoloti power midi board bill of materials (BOM)
38 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS5430DDA | TI_SO-PowerPAD-8_ThermalVias | U1 |
| 1 | 74HC14 | SOIC-14_3.9x8.7mm_P1.27mm | U2 |
| 1 | VIN | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | DC 9-20V | dc_socket | J2 |
| 1 | MIDI_IN | MIDI_DIN-5_DS-5-01c | J3 |
| 1 | MIDI_OUT | MIDI_DIN-5_DS-5-01c | J4 |
| 1 | MIDI_THRU | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | BREAKOUT_CONN | PinHeader_1x05_P2.54mm_Vertical | J6 |
| 1 | 6N137 | SMDIP-8_W9.53mm | OK1 |
| 2 | SS34 | D_SMA | D1, D3 |
| 1 | 1N4148WS | D_SOD-323 | D2 |
| 1 | 3V3 | D_MiniMELF | D4 |
| 1 | LED | LED_0603_1608Metric | D5 |
| 1 | 15UH 15uh | L_10.4x10.4_H4.8 | L1 |
| 5 | 100N 100n | C_0603_1608Metric | C1, C4, C6, C11, C12 |
| 2 | 10U 10u | C_0603_1608Metric | C2, C3 |
| 1 | 10N 10n | C_0603_1608Metric | C5 |
| 4 | 47U 47u | C_1206_3216Metric | C7, C8, C9, C10 |
| 3 | 10K 10k | R_0603_1608Metric | R1, R3, R11 |
| 6 | 220 | R_0603_1608Metric | R2, R5, R7, R8, R9, R10 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 47K 47k | R_0603_1608Metric | R4 |
| 1 | 3k | R_0603_1608Metric | R6 |
Ksoloti power midi board design files
The KiCad project lives in the ksoloti/ksoloti-hardware repository on GitHub; these links point at the commit this page was built from.
Ksoloti power midi board: common questions
How big is the Ksoloti power midi board?
The Ksoloti power midi board measures 72 × 32 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ksoloti power midi board?
38 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ksoloti power midi board design files?
From the ksoloti/ksoloti-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Ksoloti power midi board design in my own project?
The repository has no license, so all rights stay with ksoloti. Use it as a reference, and ask the author before reusing the design.
