Controller
About the Controller PCB

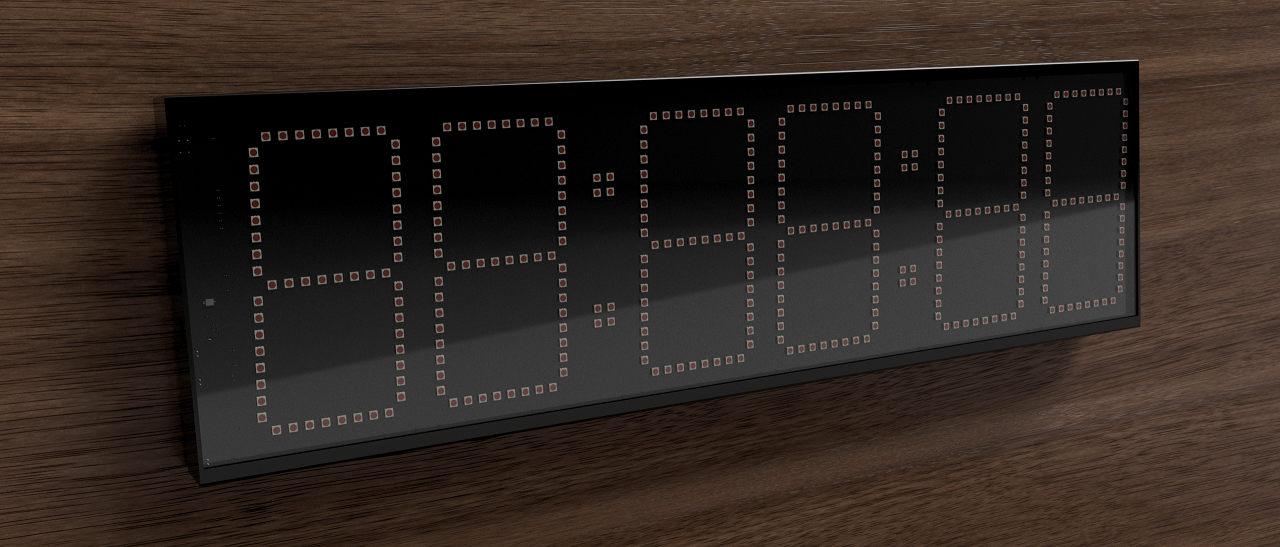

Controller is an open source AVR/Arduino PCB design by kuellenberg, published on GitHub. It is a 2-layer board measuring 213 × 24 mm, with 82 components from 47 distinct parts.
Its main chip is the ATMEGA328P-AU-AK, from the AVR/Arduino family. Other key parts include the FT232RL, DS3231M, 74AHC1G14 and MCP6001-OT. By type, the board carries 27 capacitors, 18 resistors, 7 connectors, 7 LEDs, 5 ICs and 4 fuses.
Main components on the Controller
Controller bill of materials (BOM)
82 components, 47 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FT232RL | SSOP-28_5.3x10.2mm_P0.65mm | U1 |
| 1 | ATMEGA328P-AU-AK ATmega328P-AU | TQFP-32_7x7mm_P0.8mm | U2 |
| 1 | DS3231M | SOIC-16W_7.5x10.3mm_P1.27mm | U3 |
| 1 | 74AHC1G14 | SOT-23-5 | U4 |
| 1 | MCP6001-OT LMV301 | SOT-353_SC-70-5 | U5 |
| 2 | SI4435FDY | SO-8_5.3x6.2mm_P1.27mm | Q1, Q2 |
| 1 | SQ2309ES | SOT-23 | Q3 |
| 1 | 16MHZ 16MHz | CSTNE | Y1 |
| 1 | CONN_02X04_ODD_EVEN Conn_02x04_Top_Bottom | HARWIN_M20-8890845 | J1 |
| 1 | CONN_01X02 15V | JST_XH_B03B-XH-A_03x2.50mm_Straight | J2 |
| 1 | CONN_02X03_ODD_EVEN Conn_02x03_Top_Bottom | IDC-Header_2x03_P2.54mm_Vertical | J3 |
| 1 | CONN_02X04_TOP_BOTTOM Conn_02x04_Top_Bottom | HARWIN_M20-8890845 | J4 |
| 1 | CONN_01X02 5V | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J5 |
| 1 | CONN_01X02 Conn_01x02 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J6 |
| 1 | 530-SS-52300-002 USB_A | USB_B_OST_USB-B1HSxx_Horizontal | J7 |
| 1 | 576-0154004.DRT Fuse 4A | Fuseholder_SMD_Littelfuse_154 | F1 |
| 1 | 576-0154001.DR Fuse 1A | Fuseholder_SMD_Littelfuse_154 | F2 |
| 1 | 500MA Polyfuse 500mA | Fuse_1812_4532Metric | F3 |
| 1 | … Polyfuse 500mA | Fuse_1812_4532Metric | F4 |
| 1 | Jumper | PinSocket_1x02_P2.54mm_Vertical | JP1 |
Show 27 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SFH 2440 | Osram_SMD-DIL2_4.5x4.0mm | PD1 |
| 1 | RESET | SW_PUSH_6mm | SW1 |
| 2 | GND | TestPoint_Loop_D2.60mm_Drill1.6mm_Beaded | TP2, TP4 |
| 2 | LED blue | LED_0603_1608Metric | LD1, LD2 |
| 5 | LED | LED_0603_1608Metric | LD3, LD4, LD5, LD6, LD7 |
| 2 | 859-LTSTC193TBKT5A MBR130 | D_SOD-123 | D1, D2 |
| 3 | 10UH 10uH | L_0805_2012Metric | L1, L2, L3 |
| 2 | 330UF 330uF | CP_Elec_10x10 | C1, C2 |
| 1 | 10NF 10nF | C_0805_2012Metric | C3 |
| 2 | 100UF 100uF | C_Elec_6.3x5.8 | C4, C5 |
| 4 | 10NF 10nF | C_0603_1608Metric | C6, C14, C17, C19 |
| 9 | 100NF 100nF | C_0603_1608Metric | C7, C8, C10, C12, C13, C15, C16, C18 +1 |
| 2 | 4U7 4u7 | C_Elec_4x5.8 | C9, C11 |
| 3 | 100N 100nF | C_0603_1608Metric | C21, C22, C24 |
| 1 | 10NF 1uF | C_0603_1608Metric | C23 |
| 1 | 100N ?? | C_0603_1608Metric | C25 |
| 1 | 1F | FC0H105ZFTBR44 | C26 |
| 1 | 100nF | C_0603_1608Metric | C27 |
| 7 | 1k | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7 |
| 2 | 4K7 4k7 | R_0603_1608Metric | R8, R9 |
| 1 | LDR07 ?? | R_0603_1608Metric | R10 |
| 2 | 10K 10k | R_0603_1608Metric | R11, R12 |
| 1 | 330R 1k | R_0603_1608Metric | R13 |
| 1 | 100R | R_0603_1608Metric | R14 |
| 1 | 47K ?? | R_0603_1608Metric | R15 |
| 2 | 4k7 | R_0603_1608Metric | R16, R17 |
| 1 | ?? | R_0603_1608Metric | R18 |
Controller design files
The KiCad project lives in the kuellenberg/7-Segment-RGB-Clock repository on GitHub; these links point at the commit this page was built from.
Controller: common questions
What microcontroller does the Controller use?
The Controller is built around the ATMEGA328P-AU-AK, from the AVR/Arduino family.
How big is the Controller PCB?
The Controller measures 213 × 24 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Controller?
82 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Controller design files?
From the kuellenberg/7-Segment-RGB-Clock repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Controller design in my own project?
The repository has no license, so all rights stay with kuellenberg. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Controller without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
