Esp water monitor PCB layout, top view — open source ESP32 board by kyleronan

About the Esp water monitor PCB

Esp water monitor is an open source ESP32 PCB design by kyleronan, published on GitHub under the MIT license. It is a 2-layer board measuring 137.5 × 86 mm, with 81 components from 32 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the ULN2003ADR, R-783.3-1.0 and R-78E5.0-1.0. By type, the board carries 20 resistors, 14 capacitors, 13 connectors, 12 diodes, 6 switches and 5 ICs.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

This folder documents the ESP32 Water Valve Controller hardware build.

This folder documents the ESP32 Water Valve Controller hardware build.

Use the board labels from the PCB and KiCad files throughout the hardware docs:

Software may allow custom names later, but the hardware build guide uses the physical board labels.

- bom.md - simplified builder-facing BOM - pinouts.md - board connector pinouts - breakaway-front-panel-controls.md - optional manual/auto front-panel control board - bring-up-checklist.md - first power-up and test checklist

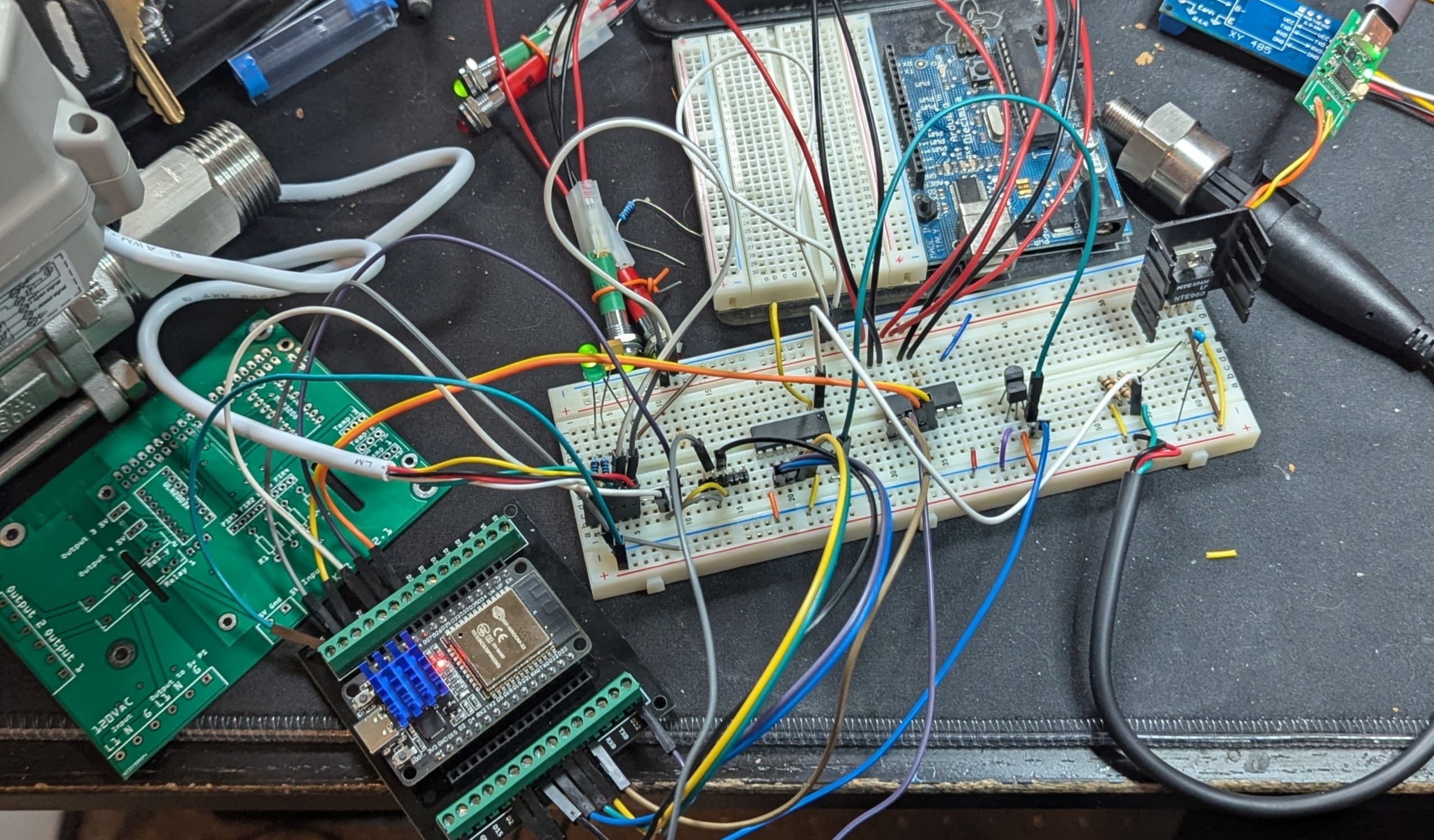

Esp water monitor, from the project README
From the project README

Main components on the Esp water monitor

ULN2003ADRR-783.3-1.0R-78E5.0-1.0ESP32-S3-WROOM-1

Esp water monitor bill of materials (BOM)

81 components, 32 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
ULN2003ADR
U1, U4
1
R-783.3-1.0
U2
1
R-78E5.0-1.0
U3
1
ESP32-S3-WROOM-1
U6
2
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
J3, J8
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J4
2
To Motor
J5, J6
2
From PCB
J7, J9
2
SCREW_TERMINAL_01X04
Screw_Terminal_01x04
J10, J12
2
SCREW_TERMINAL_01X05
Screw_Terminal_01x05
J11, J13
1
GPIO
J14
1
SPI
J15
5
1.5A
F1, F2, F3, F4, F5
4
SCREW_TERMINAL_01X03
Screw_Terminal_01x03
Flow1, Flow2, Pressure1, Pressure2
2
RT424F12
K3, K4
1
Control 1
SW1
1
OPEN_CLOSE_1
Open_Close_1
SW2
1
Control 2
SW3
1
OPEN_CLOSE_2
Open_Close_2
SW4
2
SW_Push
SW5, SW6
Show 12 more
QtyPartRefs
3
LED_Green
D1, D3, D7
2
LED_Red
D2, D4
2
MBR140SFT3G
D5, D6
5
D_TVS
D8, D9, D10, D11, D12
6
0.01UF
0.01uF
C1, C2, C3, C4, C5, C6
3
10UF
10uF
C7, C8, C11
5
0.1UF
0.1uF
C9, C10, C12, C13, C14
3
1K
R1, R11, R19
2
1.8K
R2, R12
6
20K
R3, R5, R7, R9, R13, R15
7
10K
R4, R6, R8, R10, R14, R16, R20
2
5.1K
R17, R18

Esp water monitor design files

The KiCad project lives in the kyleronan/Esp_water-monitor repository on GitHub; these links point at the commit this page was built from.

Esp water monitor: common questions

What microcontroller does the Esp water monitor use?

The Esp water monitor is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the Esp water monitor PCB?

The Esp water monitor measures 137.5 × 86 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp water monitor?

81 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp water monitor design files?

From the kyleronan/Esp_water-monitor repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp water monitor design in my own project?

Yes, under the terms of its MIT license, which kyleronan chose for the repository.

Can I test firmware for the Esp water monitor without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
