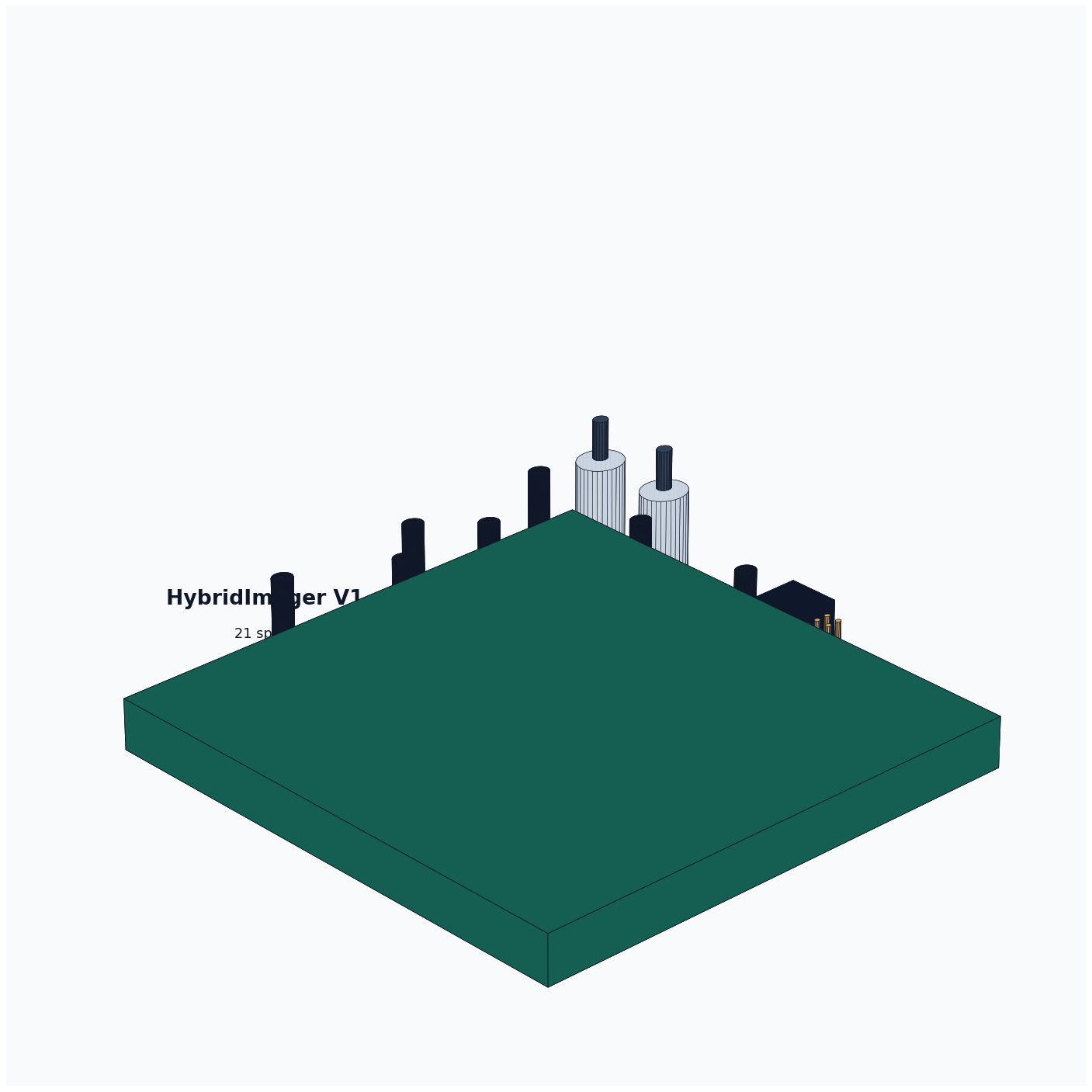

HybridImager V1 Weiqi Sparse Sensor Board
About the HybridImager V1 Weiqi Sparse Sensor Board
HybridImager V1 Weiqi Sparse Sensor Board is an open source PCB design by lachlanchen, published on GitHub. It is a 2-layer board measuring 105 × 90 mm, with 50 components from 28 distinct parts.
Other key parts include the TIA_PLACEHOLDER and TIMESTAMP_MCU_FPGA_PLACEHOLDER. By type, the board carries 21 test points, 4 ICs and 4 connectors.
It belongs with the sensors, test & measurement and science & space designs in this gallery.
From the project
HybridImager: open hybrid single-pixel, event, frame, and spectral scientific imaging research workspace
This is the first board-level HybridImager sensor draft. It deliberately uses a sparse multi-site single-pixel detector array instead of one central bucket only. The geometry follows a Weiqi-like 7x7 conceptual grid with 21 populated detector sites.
- Validate detector spacing and sparse reconstruction geometry. - Provide per-site signal pads for external TIA/comparator experiments. - Reserve board area for three TIA banks, one timestamp MCU/FPGA, sync SMA connectors, power/sync header, and a 2x20 expansion header. - Keep V1 buildable and inspectable before committing to dense custom sensor…
Main components on the HybridImager V1 Weiqi Sparse Sensor Board
HybridImager V1 Weiqi Sparse Sensor Board bill of materials (BOM)
50 components, 28 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | TIA_PLACEHOLDER | SOIC-8_3.9x4.9mm_P1.27mm | U1, U2, U3 |
| 1 | TIMESTAMP_MCU_FPGA_PLACEHOLDER | QFN-48-1EP_7x7mm_P0.5mm_EP5.15x5.15mm | U4 |
| 1 | AFE_EXPANSION_2x20 | PinHeader_2x20_P2.54mm_Vertical | J1 |
| 1 | SYNC_PWR_1x10 | PinHeader_1x10_P2.54mm_Vertical | J2 |
| 1 | SYNC_IN | SMA_Amphenol_132291_Vertical | J3 |
| 1 | SYNC_OUT | SMA_Amphenol_132291_Vertical | J4 |
| 21 | SPARSE_PHOTODIODE_D3 | Sparse_SP_D3_Photodiode | PD01, PD02, PD03, PD04, PD05, PD06, PD07, PD08 +13 |
| 1 | SP01 | TP_1.7mm_SMD | TP01 |
| 1 | SP02 | TP_1.7mm_SMD | TP02 |
| 1 | SP03 | TP_1.7mm_SMD | TP03 |
| 1 | SP04 | TP_1.7mm_SMD | TP04 |
| 1 | SP05 | TP_1.7mm_SMD | TP05 |
| 1 | SP06 | TP_1.7mm_SMD | TP06 |
| 1 | SP07 | TP_1.7mm_SMD | TP07 |
| 1 | SP08 | TP_1.7mm_SMD | TP08 |
| 1 | SP09 | TP_1.7mm_SMD | TP09 |
| 1 | SP10 | TP_1.7mm_SMD | TP10 |
| 1 | SP11 | TP_1.7mm_SMD | TP11 |
| 1 | SP12 | TP_1.7mm_SMD | TP12 |
| 1 | SP13 | TP_1.7mm_SMD | TP13 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SP14 | TP_1.7mm_SMD | TP14 |
| 1 | SP15 | TP_1.7mm_SMD | TP15 |
| 1 | SP16 | TP_1.7mm_SMD | TP16 |
| 1 | SP17 | TP_1.7mm_SMD | TP17 |
| 1 | SP18 | TP_1.7mm_SMD | TP18 |
| 1 | SP19 | TP_1.7mm_SMD | TP19 |
| 1 | SP20 | TP_1.7mm_SMD | TP20 |
| 1 | SP21 | TP_1.7mm_SMD | TP21 |
HybridImager V1 Weiqi Sparse Sensor Board design files
The KiCad project lives in the lachlanchen/HybridImager repository on GitHub; these links point at the commit this page was built from.
HybridImager V1 Weiqi Sparse Sensor Board: common questions
How big is the HybridImager V1 Weiqi Sparse Sensor Board?
The HybridImager V1 Weiqi Sparse Sensor Board measures 105 × 90 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the HybridImager V1 Weiqi Sparse Sensor Board?
50 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the HybridImager V1 Weiqi Sparse Sensor Board design files?
From the lachlanchen/HybridImager repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the HybridImager V1 Weiqi Sparse Sensor Board design in my own project?
The repository has no license, so all rights stay with lachlanchen. Use it as a reference, and ask the author before reusing the design.
