HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board

lachlanchen·HybridImager·hardware/v2-als-pt19-32x32/hybridimager-v2-als-pt19-32x32.kicad_pcb

HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board layout, top view — open source board by lachlanchen

About the HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board

HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board is an open source PCB design by lachlanchen, published on GitHub. It is a 2-layer board measuring 156 × 128 mm, with 1024 components from 1 distinct parts.

It belongs with the sensors, test & measurement and science & space designs in this gallery.

From the project

HybridImager: open hybrid single-pixel, event, frame, and spectral scientific imaging research workspace

V2 moves from the sparse V1 detector carrier to a dense 32x32 matrix using the same ALS-PT19 phototransistor family documented in CustomSensor.

- 1024 ALS-PT19 detector sites instead of 21 sparse sites. - Unrotated footprints on a 2.54 mm pitch so pins are aligned and pads do not overlap. - Row pins align to the left edge header; column pins align to the top edge header. - Row nets route horizontally on F.Cu; column nets route vertically on B.Cu. - ADG732 row/column mux footprints remain as placement placeholders for the CustomSensor addressing model.

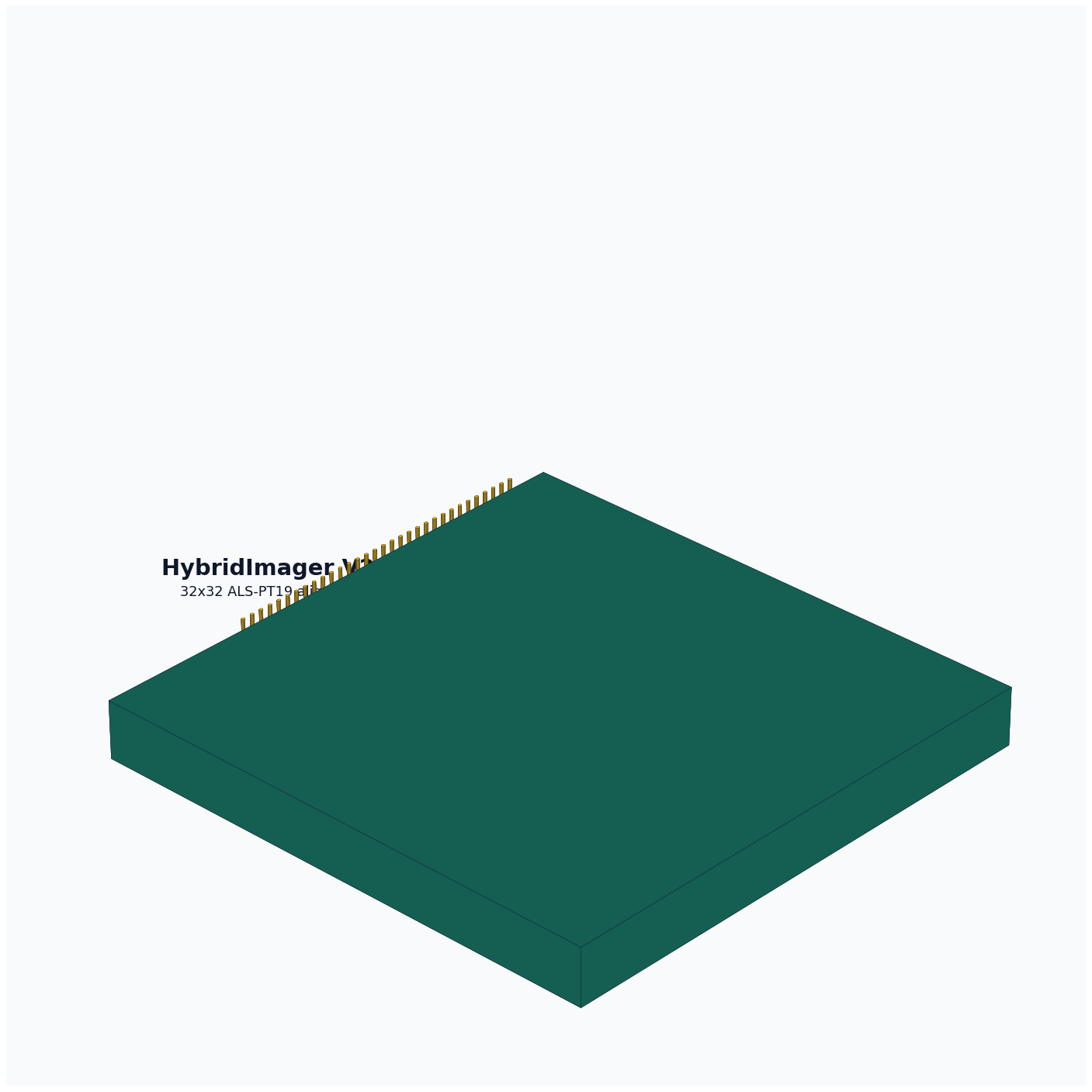

HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board, from the project README
From the project README

HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board bill of materials (BOM)

1024 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1024
ALS-PT19
Q0101, Q0102, Q0103, Q0104, Q0105, Q0106, Q0107, Q0108 +1016

HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board design files

The KiCad project lives in the lachlanchen/HybridImager repository on GitHub; these links point at the commit this page was built from.

HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board: common questions

How big is the HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board?

The HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board measures 156 × 128 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board?

1024 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board design files?

From the lachlanchen/HybridImager repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the HybridImager V2 ALS-PT19 32x32 Aligned Sensor Board design in my own project?

The repository has no license, so all rights stay with lachlanchen. Use it as a reference, and ask the author before reusing the design.
