About the Pico-Devboard PCB

Pico-Devboard is an open source RP2040/RP2350 PCB design by lekangji, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 42 components from 21 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the TPSPX3819M5-L-3-3 and W25Q128JVS. By type, the board carries 17 capacitors, 11 resistors, 4 connectors, 4 diodes, 3 ICs and 2 switches.

It belongs with the dev boards & breakouts and power & battery designs in this gallery.

From the project

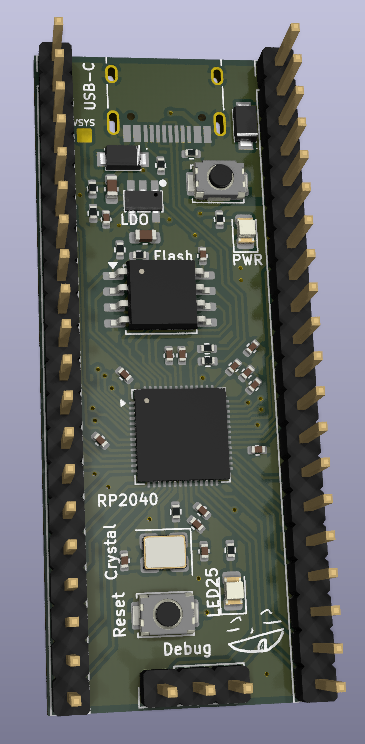

A custom rp2040 devboard, but with 16MB flash and a lot of extra features!

I wanted a more capable RP2040 board with significantly more flash memory and USB-C. Most dev boards limit storage and input options, so I designed one that supports USB-C, battery input, higher current capability, and voltage monitoring while staying in the same form factor.

- RP2040 microcontroller - 16MB QSPI Flash - USB-C - Battery input (Schottky diode OR-ing with USB) - 500mA LDO (10V max input) - VSYS voltage monitoring via resistor divider on ADC3 - Onboard power LED - Onboard GPIO25 LED - Bootsel + Reset button - Fully labeled GPIO pins

Pico-Devboard, from the project README — From the project README

Main components on the Pico-Devboard

RP2040 TPSPX3819M5-L-3-3 W25Q128JVS

Pico-Devboard bill of materials (BOM)

42 components, 21 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	TPSPX3819M5-L-3-3	SOT-23-5_L3.0-W1.6-P0.95-LS2.8-BR	U2
1	W25Q128JVS	SOIC-8_5.3x5.3mm_P1.27mm	U3
1	12 MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	USB_C_Receptacle_USB2.0_14P	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J1
2	Conn_01x20	PinHeader_1x20_P2.54mm_Vertical	J2, J3
1	Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J4
2	SW_Push	SW_Push_SPST_NO_Alps_SKRK	SW1, SW2
2	LED	LED_0805_2012Metric	D1, D2
2	FMBR120VLSFT1G	SOD-123FL_L2.8-W1.8-LS3.8-RD	D3, D4
2	1uF	C_0402_1005Metric	C1, C4
10	0.1uF	C_0402_1005Metric	C2, C3, C5, C6, C7, C8, C10, C11 +2
1	1nF	C_0402_1005Metric	C9
2	10uF	C_0603_1608Metric	C13, C14
2	33pF	C_0402_1005Metric	C15, C16
2	5.1K	R_0402_1005Metric	R1, R2
2	27	R_0402_1005Metric	R3, R4
4	1K	R_0402_1005Metric	R5, R6, R8, R9
1	10K	R_0402_1005Metric	R7
1	200K	R_0402_1005Metric	R10

Show 1 more

Qty	Part	Footprint	Refs
1	100K	R_0402_1005Metric	R11

Pico-Devboard design files

The KiCad project lives in the lekangji/Pico-Devboard repository on GitHub; these links point at the commit this page was built from.

LayoutPCB/KiCad Files/Devboard.kicad_pcb
SchematicPCB/KiCad Files/Devboard.kicad_sch
BOMPCB/Manufacturing files/BOM-JLCPCB.xls

Pico-Devboard: common questions

What microcontroller does the Pico-Devboard use?

The Pico-Devboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Pico-Devboard PCB?

The Pico-Devboard measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pico-Devboard?

42 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pico-Devboard design files?

From the lekangji/Pico-Devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pico-Devboard design in my own project?

The repository has no license, so all rights stay with lekangji. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Pico-Devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
