6502-Retro!

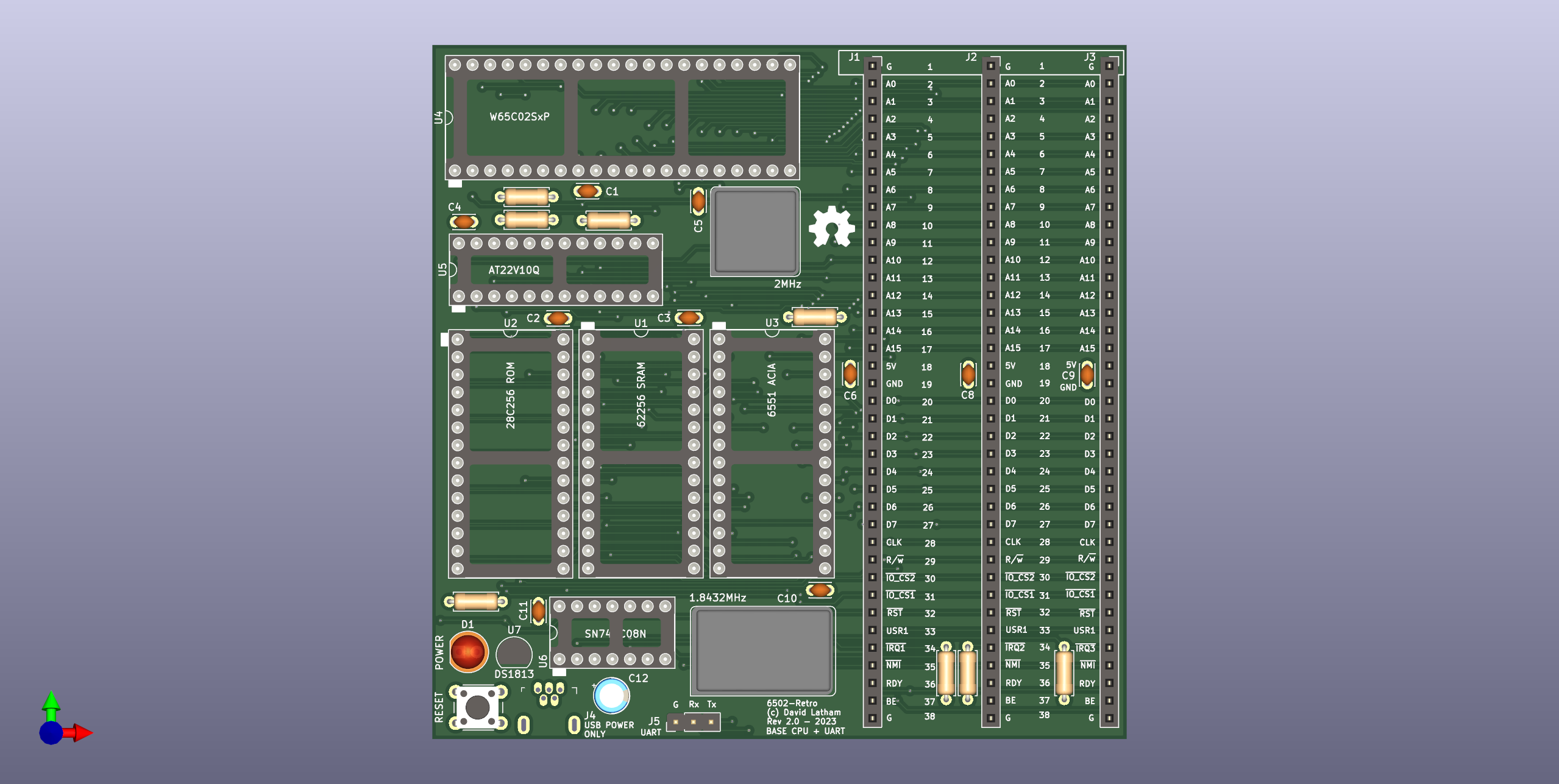

About the 6502-Retro! PCB
6502-Retro! is an open source PCB design by linuxplayground, published on GitHub. It is a 4-layer board measuring 100 × 100 mm, with 35 components from 20 distinct parts.
Other key parts include the 62256 SRAM, 28C256 ROM, 6551 ACIA, W65C02SxP and AT22V10Q. By type, the board carries 11 capacitors, 8 resistors, 7 ICs, 5 connectors, 2 crystals and 1 switch.
It belongs with the retro computing and keyboards designs in this gallery.
From the project
A 6502 Backplane design.
Inspired by the Z80-Retro! see: https://github.com/z80-retro I decided to see if I could put together a small 6502 based project with a similar design philosphy. The main goals of the project are:
1. The base board must be no larger than 100mm x 100mm to leverage the cheaper manufacturing options. 2. The base board must provide all required functionality to be minimially operational. 3. Daughter boards will provide additional peripherals such as Graphics and Audio
Main components on the 6502-Retro!
6502-Retro! bill of materials (BOM)
35 components, 20 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 62256 SRAM | DIP-28_W15.24mm_Socket | U1 |
| 1 | 28C256 ROM | DIP-28_W15.24mm_Socket | U2 |
| 1 | 6551 ACIA | DIP-28_W15.24mm_Socket | U3 |
| 1 | W65C02SxP | DIP-40_W15.24mm_Socket | U4 |
| 1 | AT22V10Q | DIP-24_W7.62mm_Socket | U5 |
| 1 | SN74HC08N Texas Instruments | DIP-14_W7.62mm_Socket | U6 |
| 1 | DS1813 | TO-92_Inline | U7 |
| 1 | 2MHz | Oscillator_DIP-8 | X1 |
| 1 | 1.8432MHz | Oscillator_DIP-14 | X2 |
| 1 | SLOT 1 | PinSocket_1x38_P2.54mm_Vertical | J1 |
| 1 | SLOT 2 | PinSocket_1x38_P2.54mm_Vertical | J2 |
| 1 | SLOT 3 | PinSocket_1x38_P2.54mm_Vertical | J3 |
| 1 | 0548190519 Molex | USB_Mini_B_Female_548190519 | J4 |
| 1 | Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | RESET | SW_PUSH_6mm_H5mm | SW1 |
| 1 | POWER | LED_D5.0mm | D1 |
| 10 | 0.1uF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C1, C2, C3, C4, C5, C6, C8, C9 +2 |
| 1 | 10uF | CP_Radial_D5.0mm_P2.50mm | C12 |
| 7 | 3.9K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R4, R5, R6, R8, R9, R10 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7 |
6502-Retro! design files
The KiCad project lives in the linuxplayground/6502-retro repository on GitHub; these links point at the commit this page was built from.
6502-Retro!: common questions
How big is the 6502-Retro! PCB?
The 6502-Retro! measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the 6502-Retro!?
35 components, from 20 distinct parts. The full bill of materials is listed on this page.
Where can I download the 6502-Retro! design files?
From the linuxplayground/6502-retro repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the 6502-Retro! design in my own project?
The repository has no license, so all rights stay with linuxplayground. Use it as a reference, and ask the author before reusing the design.
