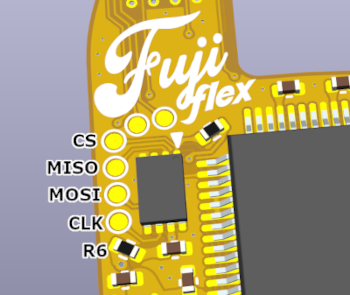

About the Fujiflex PCB
Fujiflex is an open source FPGA PCB design by mackieks, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 27.7 × 43.7 mm, with 24 components from 13 distinct parts.
Its main chip is the XC3S200A-4VQG100C, from the FPGA family. Other key parts include the AT25SF041B-MAHD-T and P25Q40H-UXH-IR. By type, the board carries 11 capacitors, 7 resistors, 3 ICs, 1 connector, 1 jumper and 1 diode.
From the project
GCVideo DVI flex PCB for Nintendo Wii
OSHW GCVideo DVI flex for Nintendo Wii. Tested and working! Solderpad Hardware License v2.1
Special thanks to loopj for testing the FPC and writing the assembly+install documentation!
I maintain a Mouser project with most of the BOM. You still need to source the FPGA from elsewhere. I suggest either LCSC, AliExpress, or Taobao.
The total BOM cost for fujiflex is around 10USD. If you're paying more than $5 per FPGA, you are being ripped off!

Main components on the Fujiflex
Fujiflex bill of materials (BOM)
24 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XC3S200A-4VQG100C Lewa Micro | QFP50P1600X1600X120-100N | U1 |
| 1 | AT25SF041B-MAHD-T Xilinx / AMD | SON50P300X200X60-9N-D | U2 |
| 1 | P25Q40H-UXH-IR AP2127N-1.2 PUYA | SOT-23 | U3 |
| 1 | 505278-1933 Molex | 5052781933 | J1 |
| 1 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1 |
| 1 | 1N5819WT BAT54XV2T1G SLKORMICRO Elec | D_SOD-523 | D1 |
| 2 | 1uF | C_0402_1005Metric | C1, C2 |
| 9 | 0.1uF | C_0402_1005Metric | C3, C4, C5, C6, C7, C8, C9, C10 +1 |
| 2 | 10k | R_0402_1005Metric | R1, R2 |
| 1 | 330 | R_0402_1005Metric | R3 |
| 2 | 4.7k | R_0402_1005Metric | R4, R7 |
| 1 | 100K | R_0402_1005Metric | R5 |
| 1 | 0 | R_0402_1005Metric | R6 |
Fujiflex design files
The KiCad project lives in the mackieks/fujiflex repository on GitHub; these links point at the commit this page was built from.
Fujiflex: common questions
What microcontroller does the Fujiflex use?
The Fujiflex is built around the XC3S200A-4VQG100C, from the FPGA family.
How big is the Fujiflex PCB?
The Fujiflex measures 27.7 × 43.7 mm, has 2 copper layers and is 0.11 mm thick.
How many components are on the Fujiflex?
24 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Fujiflex design files?
From the mackieks/fujiflex repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Fujiflex design in my own project?
It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Fujiflex without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
