TypeA

mackieks·fujiflex·output_adapters/typeA/typeA.kicad_pcb

TypeA PCB layout, top view — open source FPGA board by mackieks

About the TypeA PCB

TypeA is an open source FPGA PCB design by mackieks, published on GitHub under the SHL-2.1 license. It is a 2-layer board measuring 20.8 × 26.5 mm, with 5 components from 5 distinct parts.

Its main chip is the XC3S200A-4VQG100C, from the FPGA family. Other key parts include the LW5912N23D and P25Q40H-UXH-IR. By type, the board carries 3 ICs and 2 connectors.

From the project

GCVideo DVI flex PCB for Nintendo Wii

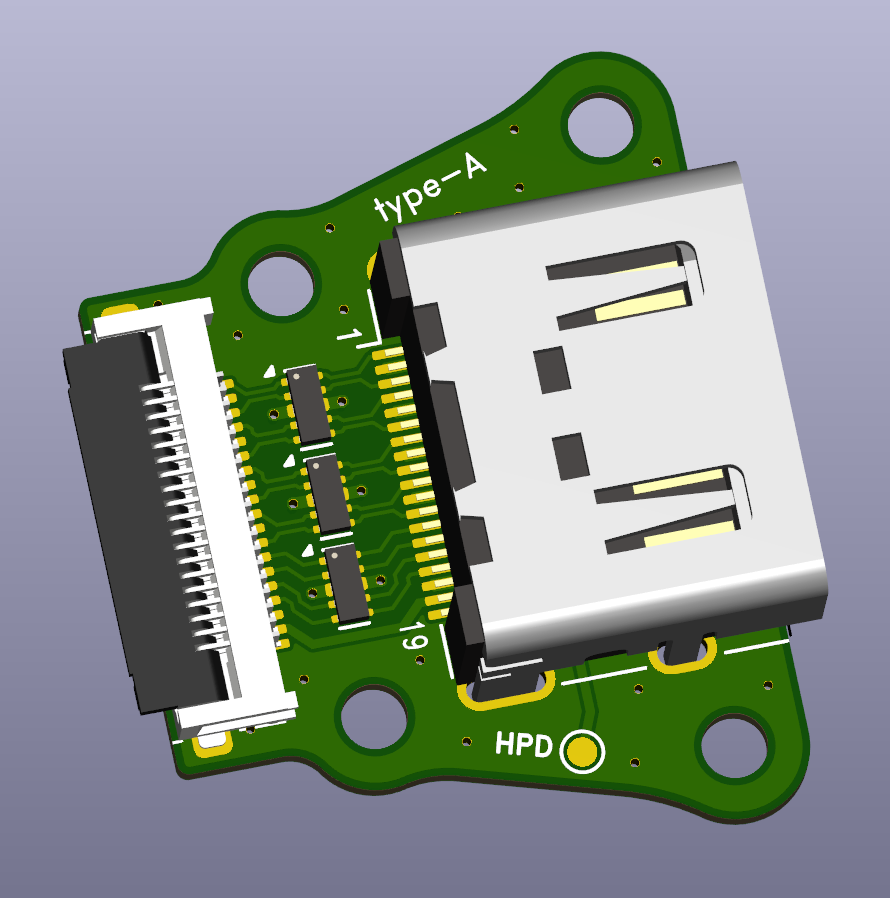

TypeA, from the project README
From the project README

Main components on the TypeA

LW5912N23DXC3S200A-4VQG100CP25Q40H-UXH-IR

TypeA bill of materials (BOM)

5 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LW5912N23D
ESD204DQAR-ES
Lewa Micro
U1
1
XC3S200A-4VQG100C
ESD204DQAR-ES
Xilinx / AMD
U2
1
P25Q40H-UXH-IR
ESD204DQAR-ES
PUYA
U3
1
505278-1933
HC-HDMI0019T-1
Molex
J1
1
505278-1933
J2

TypeA design files

The KiCad project lives in the mackieks/fujiflex repository on GitHub; these links point at the commit this page was built from.

TypeA: common questions

What microcontroller does the TypeA use?

The TypeA is built around the XC3S200A-4VQG100C, from the FPGA family.

How big is the TypeA PCB?

The TypeA measures 20.8 × 26.5 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the TypeA?

5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TypeA design files?

From the mackieks/fujiflex repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the TypeA design in my own project?

It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.

Can I test firmware for the TypeA without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
