Tiny macropad
maker-lukas·Scroll-Dial·Kicad/tiny macropad/tiny macropad.kicad_pcb
About the Tiny macropad PCB
Tiny macropad is an open source Nordic nRF PCB design by maker-lukas, published on GitHub. It is a 2-layer board measuring 38.1 × 57.2 mm, with 16 components from 6 distinct parts.
Its main chip is the XIAO-NRF52840-DIP, from the Nordic nRF family. By type, the board carries 7 switches, 6 LEDs, 2 connectors and 1 IC.
It belongs with the keyboards, sensors and iot & wireless designs in this gallery.
From the project
A scroll dial using the AS5600 sensor and a small macropad
- Smooth and very accurate scrolling up to 0.08° - AS5600 sensor - Wireless - Macropad for more functionality # BOM

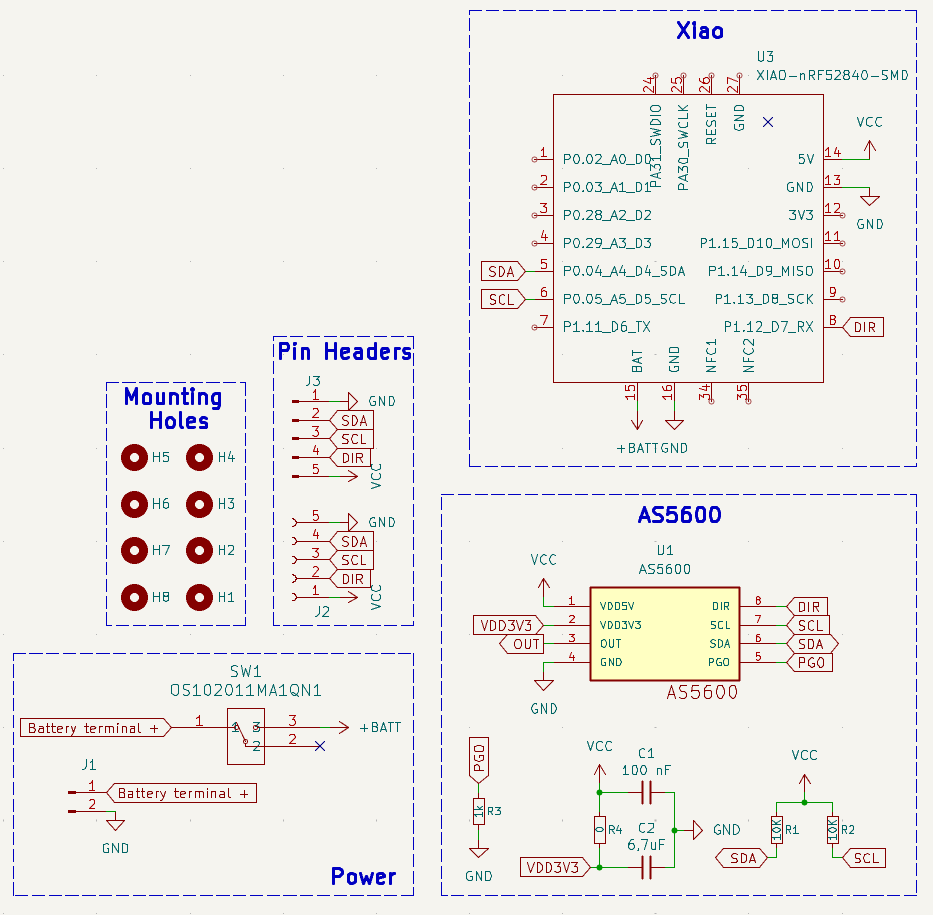

This will cover the PCB, Schematic and 3D models of both the Sccoll dial as the Macropad

Main components on the Tiny macropad
Tiny macropad bill of materials (BOM)
16 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-NRF52840-DIP XIAO-nRF52840-DIP | XIAO-nRF52840-DIP | U1 |
| 2 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J1, J2 |
| 1 | OS102011MA1QN1 SW_Push_45deg | MX-Solderable-1U | SW1 |
| 5 | SW_PUSH_45DEG SW_Push_45deg | MX-Solderable-1U | SW2, SW3, SW4, SW5, SW6 |
| 1 | OS102011MA1QN1 | OS102011MA1QN1_CNK | SW7 |
| 6 | MX_SK6812MINI-E | LED_6028R | LED1, LED2, LED3, LED4, LED5, LED6 |
Tiny macropad design files
The KiCad project lives in the maker-lukas/Scroll-Dial repository on GitHub; these links point at the commit this page was built from.
Tiny macropad: common questions
What microcontroller does the Tiny macropad use?
The Tiny macropad is built around the XIAO-NRF52840-DIP, from the Nordic nRF family.
How big is the Tiny macropad PCB?
The Tiny macropad measures 38.1 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Tiny macropad?
16 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Tiny macropad design files?
From the maker-lukas/Scroll-Dial repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Tiny macropad design in my own project?
The repository has no license, so all rights stay with maker-lukas. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Tiny macropad without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
