Status Deck HackPad

man-coding-j·Status_Deck_HackPad·PCB/Status_DEck copy.kicad_pcb

Status Deck HackPad PCB layout, top view — open source RP2040/RP2350 board by man-coding-j

About the Status Deck HackPad PCB

Status Deck HackPad is an open source RP2040/RP2350 PCB design by man-coding-j, published on GitHub. It is a 2-layer board measuring 59.5 × 78.6 mm, with 14 components from 5 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. Other key parts include the SSD1306. By type, the board carries 6 switches, 6 diodes and 2 ICs.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

This is a hackpad.

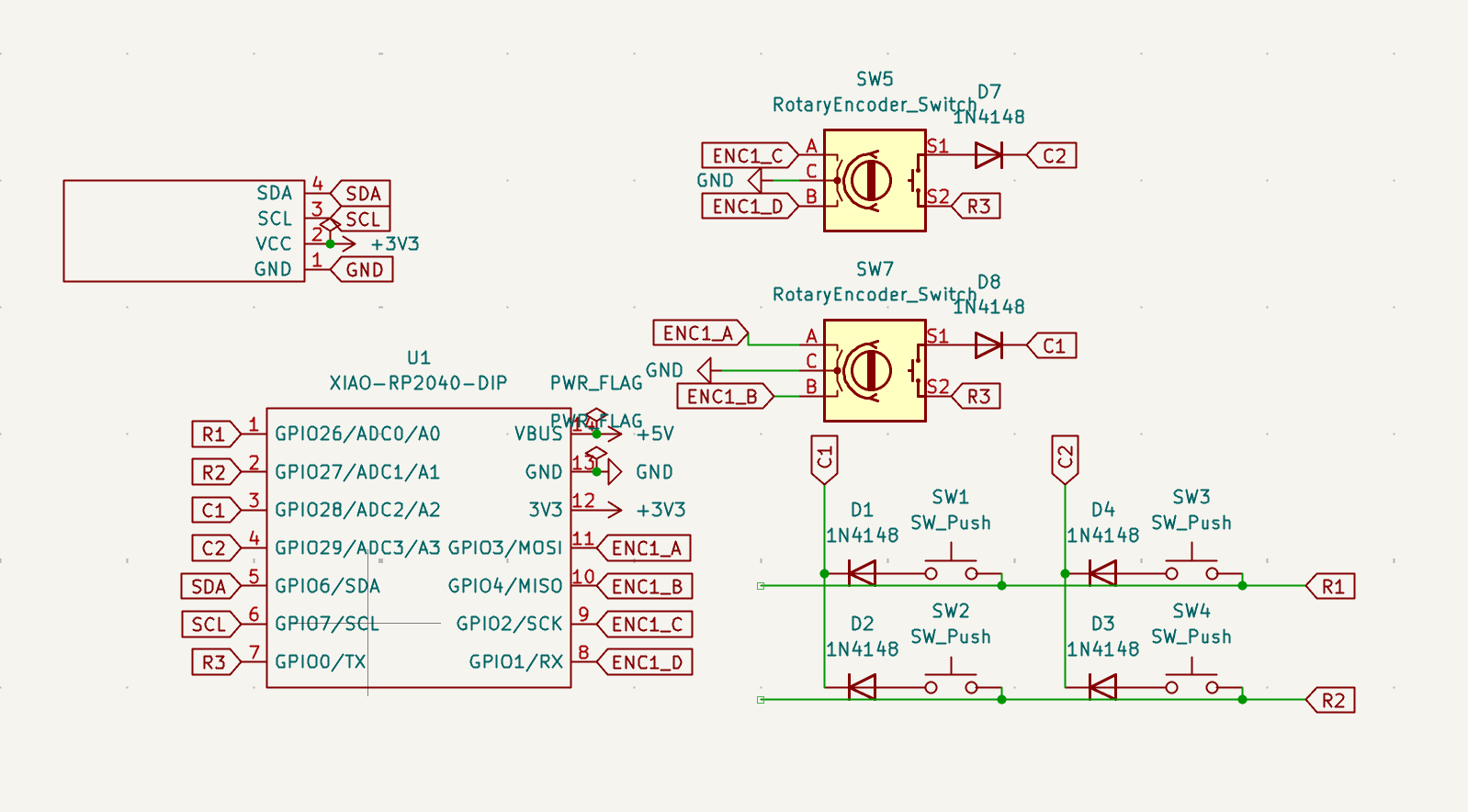

Status Deck HackPad, from the project README
From the project README

Main components on the Status Deck HackPad

XIAO-RP2040-DIPSSD1306

Status Deck HackPad bill of materials (BOM)

14 components, 5 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
SSD1306
U3
4
SW_Push
SW1, SW2, SW3, SW4
2
RotaryEncoder_Switch
SW5, SW7
6
1N4148
D1, D2, D3, D4, D7, D8

Status Deck HackPad design files

The KiCad project lives in the man-coding-j/Status_Deck_HackPad repository on GitHub; these links point at the commit this page was built from.

Status Deck HackPad: common questions

What microcontroller does the Status Deck HackPad use?

The Status Deck HackPad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Status Deck HackPad PCB?

The Status Deck HackPad measures 59.5 × 78.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Status Deck HackPad?

14 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Status Deck HackPad design files?

From the man-coding-j/Status_Deck_HackPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Status Deck HackPad design in my own project?

The repository has no license, so all rights stay with man-coding-j. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Status Deck HackPad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
