Smartcube revA Flex PCB layout, top view — open source board by manhoosbilli1
Simulate this board

About the Smartcube revA Flex PCB

Smartcube revA Flex is an open source PCB design by manhoosbilli1, published on GitHub. It is a 6-layer board measuring 8.2 × 10.3 mm, with 4 components from 1 distinct parts.

It belongs with the sensors and rf & radio designs in this gallery.

From the project

Smart Cube - multi-PCB flex assembly (PCBA, PCBB, PCBC + FLEX + tabs Y/G/B)

Smart Cube - multi-PCB flex assembly (nRF52832 BLE + BMI270 IMU + multi-input analog mux array)

- Status: In progress - Board size: 74.99 x 21.4 mm - Layers: 6 - Components: 39 - Key ICs: - U1: 2895 - U4: nRF52832-QFxx - U5: BMI270 - U6-U8: 74HC4051LQ/TR

- nRF52832-QFxx (U4) - main MCU; Nordic ARM Cortex-M4F with BLE 5.0 radio - BMI270 (U5) - Bosch 6-axis IMU (accelerometer + gyroscope); detects orientation / gestures on the cube - 74HC4051LQ/TR x3 (U6-U8) - 8-channel analog multiplexers; expand the nRF52's limited ADC channels to read many capacitive / pressure sensors across the cube…

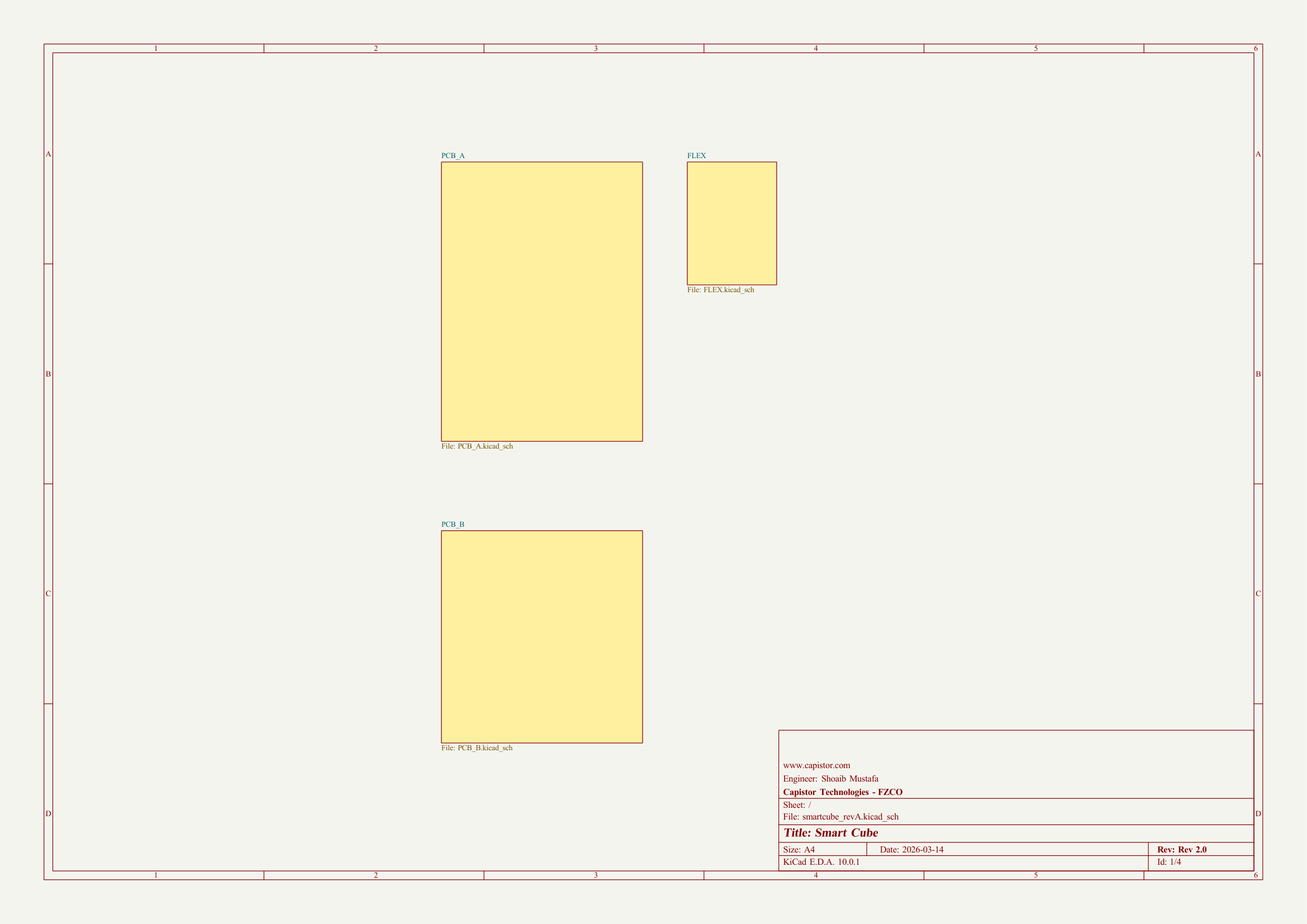

Smartcube revA Flex, from the project README
From the project README

Smartcube revA Flex bill of materials (BOM)

4 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
Conn_01x05_Pin
J8, J9, J10, J11

Smartcube revA Flex design files

The KiCad project lives in the manhoosbilli1/smart-cube-multi-pcb-flex-assembly repository on GitHub; these links point at the commit this page was built from.

Smartcube revA Flex: common questions

How big is the Smartcube revA Flex PCB?

The Smartcube revA Flex measures 8.2 × 10.3 mm, has 6 copper layers and is 1 mm thick.

How many components are on the Smartcube revA Flex?

4 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Smartcube revA Flex design files?

From the manhoosbilli1/smart-cube-multi-pcb-flex-assembly repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Smartcube revA Flex design in my own project?

The repository has no license, so all rights stay with manhoosbilli1. Use it as a reference, and ask the author before reusing the design.
