ESP32-Temperature-WebServer

marcosindiano7·ESP32-Temperature-WebServer-PCB·hardware/KiCad/Practica.kicad_pcb

ESP32-Temperature-WebServer PCB layout, top view — open source ESP32 board by marcosindiano7

About the ESP32-Temperature-WebServer PCB

ESP32-Temperature-WebServer is an open source ESP32 PCB design by marcosindiano7, published on GitHub. It is a 2-layer board measuring 80 × 80 mm, with 68 components from 32 distinct parts.

Its main chip is the ESP32, from the ESP32 family. Other key parts include the LM7805_TO220, CH340N and LM35-LP. By type, the board carries 20 resistors, 15 capacitors, 6 jumpers, 6 LEDs, 5 diodes and 4 ICs.

It belongs with the sensors, iot & wireless and usb & debug tools designs in this gallery.

From the project

Custom ESP32-based temperature web server PCB designed in KiCad, manufactured and assembled with SMD/THT components, including LM35 sensing, USB/RS232 communication and lab validation.

Custom two-layer PCB designed in KiCad for an ESP32-based temperature monitoring system. The board measures temperature using an LM35 analog sensor and allows the measured value to be monitored through a web interface served by the ESP32 module.

This project focuses on the complete hardware development flow: schematic capture, PCB layout, manufacturing files generation, board assembly and laboratory validation.

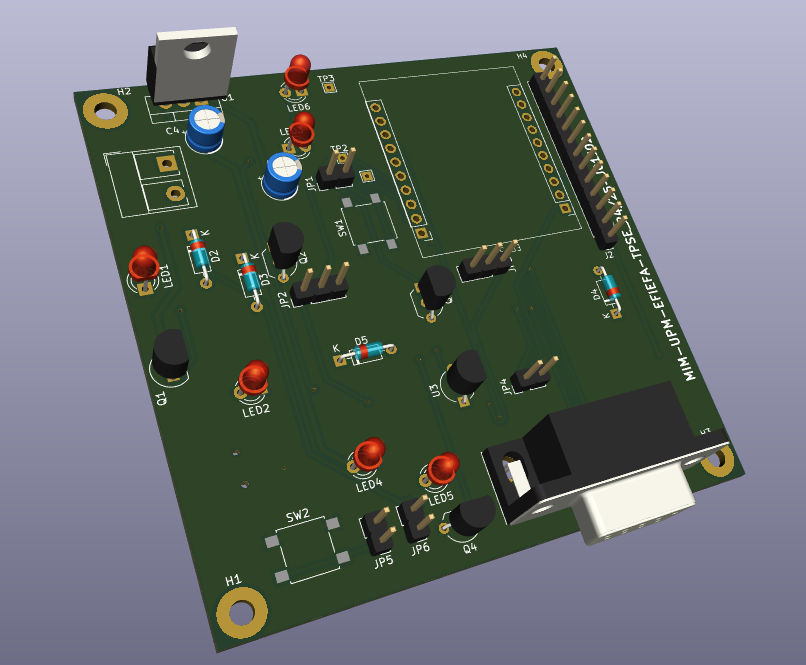

ESP32-Temperature-WebServer, from the project README
From the project README

Main components on the ESP32-Temperature-WebServer

LM7805_TO220CH340NLM35-LP

ESP32-Temperature-WebServer bill of materials (BOM)

68 components, 32 distinct parts.

QtyPartRefs
1
LM7805_TO220
U1
1
CH340N
U2
1
LM35-LP
U3
1
~
U4
1
BC557
Q1
3
BC547
Q2, Q3, Q4
1
897-0803
J1
1
Conn_01x13
J2
1
USB_B_Mini
J6-USB_Mini1
4
Jumper_2_Open
JP1, JP4, JP5, JP6
2
Jumper_3_Open
JP2, JP3
2
SW_Push_Dual
SW1, SW2
3
TestPoint
TP1, TP2, TP3
1
RXD_RS232_LED
LED1
1
TXD_RS232_LED
LED2
1
POWER_LED
LED3
1
TXD_USB_LED
LED4
1
RXD_USB_LED
LED5
1
ALARMA
LED6
1
RMB2S
D1
Show 12 more
QtyPartRefs
4
1N4148
D2, D3, D4, D5
8
100nF
C1, C5, C6, C8, C9, C13, C14, C15
1
10uF
C2
2
100uF
C3, C4
2
10nF
C7, C11
2
1uF
C10, C12
7
1k
R1, R3, R8, R9, R12, R14, R20
1
4k7
R2
8
10k
R4, R5, R6, R7, R10, R11, R18, R19
2
2.2k
R13, R15
1
75R
R16
1
1M
R17

ESP32-Temperature-WebServer design files

The KiCad project lives in the marcosindiano7/ESP32-Temperature-WebServer-PCB repository on GitHub; these links point at the commit this page was built from.

ESP32-Temperature-WebServer: common questions

What microcontroller does the ESP32-Temperature-WebServer use?

The ESP32-Temperature-WebServer is built around the ESP32, from the ESP32 family.

How big is the ESP32-Temperature-WebServer PCB?

The ESP32-Temperature-WebServer measures 80 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32-Temperature-WebServer?

68 components, from 32 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP32-Temperature-WebServer design files?

From the marcosindiano7/ESP32-Temperature-WebServer-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESP32-Temperature-WebServer design in my own project?

The repository has no license, so all rights stay with marcosindiano7. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32-Temperature-WebServer without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
