About the Quadcopter PCB

Quadcopter is an open source ESP32 PCB design by markusheimerl, published on GitHub under the Unlicense license. It is a 2-layer board measuring 75.1 × 75.1 mm, with 60 components from 33 distinct parts.

Its main chip is the C2913202, from the ESP32 family. Other key parts include the C5368700, C28060 and C32574. By type, the board carries 21 resistors, 13 capacitors, 5 connectors, 4 ICs, 4 transistors and 4 diodes.

It belongs with the robotics & motion and power & battery designs in this gallery.

From the project

A quadcopter simulation & hardware design

Flight controller and frame on a single 2‑layer PCB, written in tscircuit. index.tsx is the whole design: parts, schematic, placement and every copper track (drawn by hand, no autorouter). The four arms are the frame; the electronics sit in the 44.8 mm core. Each motor connector sits in its corner with the cable opening facing down the arm.

Schematic: img/schematic.svg · KiCad files (to look around, measure, run DRC/ERC): kicad/.

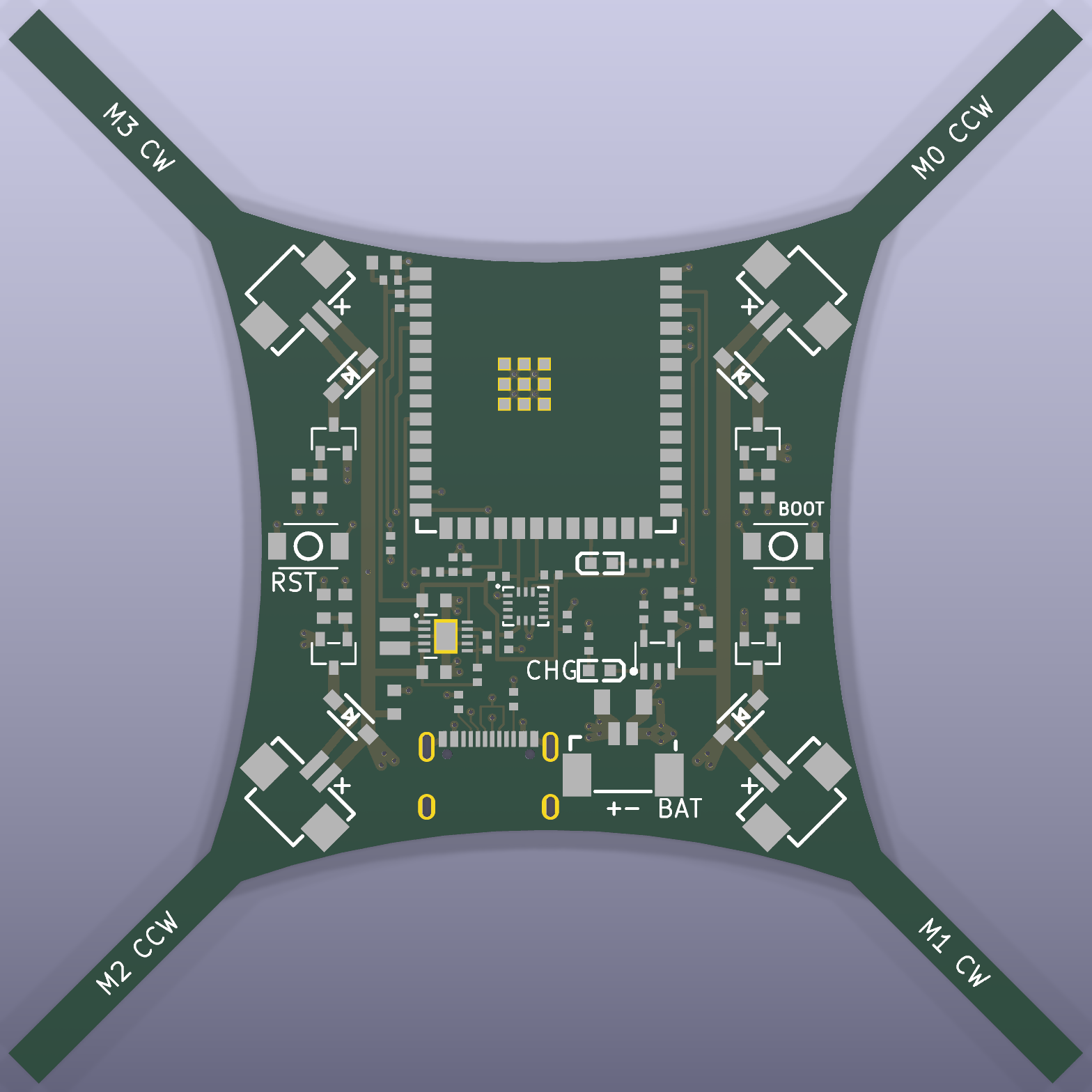

Quadcopter, from the project README
From the project README

Main components on the Quadcopter

C2913202C5368700C28060C32574

Quadcopter bill of materials (BOM)

60 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C2913202
ESP32-S3-WROOM-1-N16R8
U1
1
C5368700
BMI323
U2
1
C28060
TPS63001DRCR
U3
1
C32574
TP4054-42-SOT25R
U4
4
C20917
AO3400A
Q1, Q2, Q3, Q4
1
C2845379
CN1
CN1
1
C2845379
CN2
CN2
1
C2845379
CN3
CN3
1
C2845379
CN4
CN4
1
C122410
CN5
CN5
1
C720477
SW1
SW1
1
C720477
SW2
SW2
1
TP1
TP1
1
TP2
TP2
1
TP3
TP3
1
C2765186
USB1
USB1
2
C2286
KT-0603R
LED1, LED2
4
C8598
D
D1, D2, D3, D4
1
C5832372
2.2µH
L1
5
C1525
100nF
C1, C2, C4, C5, C10
Show 13 more
QtyPartRefs
2
C52923
1uF
C3, C9
3
C19702
10uF
C6, C11, C12
2
C59461
22uF
C7, C13
1
C15008
100uF
C8
4
C23182
47Ω
R1, R2, R3, R4
4
C25804
10kΩ
R5, R6, R7, R8
2
C25744
10kΩ
R9, R10
2
C11702
1kΩ
R11, R17
2
C25900
4.7kΩ
R12, R13
3
C25905
5.1kΩ
R14, R15, R16
1
C22939
2.2Ω
R18
2
C25741
100kΩ
R19, R20
1
C25076
100Ω
R21

Quadcopter design files

The KiCad project lives in the markusheimerl/quadcopter repository on GitHub; these links point at the commit this page was built from.

Quadcopter: common questions

What microcontroller does the Quadcopter use?

The Quadcopter is built around the C2913202, from the ESP32 family.

How big is the Quadcopter PCB?

The Quadcopter measures 75.1 × 75.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Quadcopter?

60 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Quadcopter design files?

From the markusheimerl/quadcopter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Quadcopter design in my own project?

Yes, under the terms of its Unlicense license, which markusheimerl chose for the repository.

Can I test firmware for the Quadcopter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
