IPod ESP32 barebones
martinroger·ipodesp32·pcbs/legacy boards/ipodesp32 PL2303/ipodesp32 PL2303.kicad_pcb

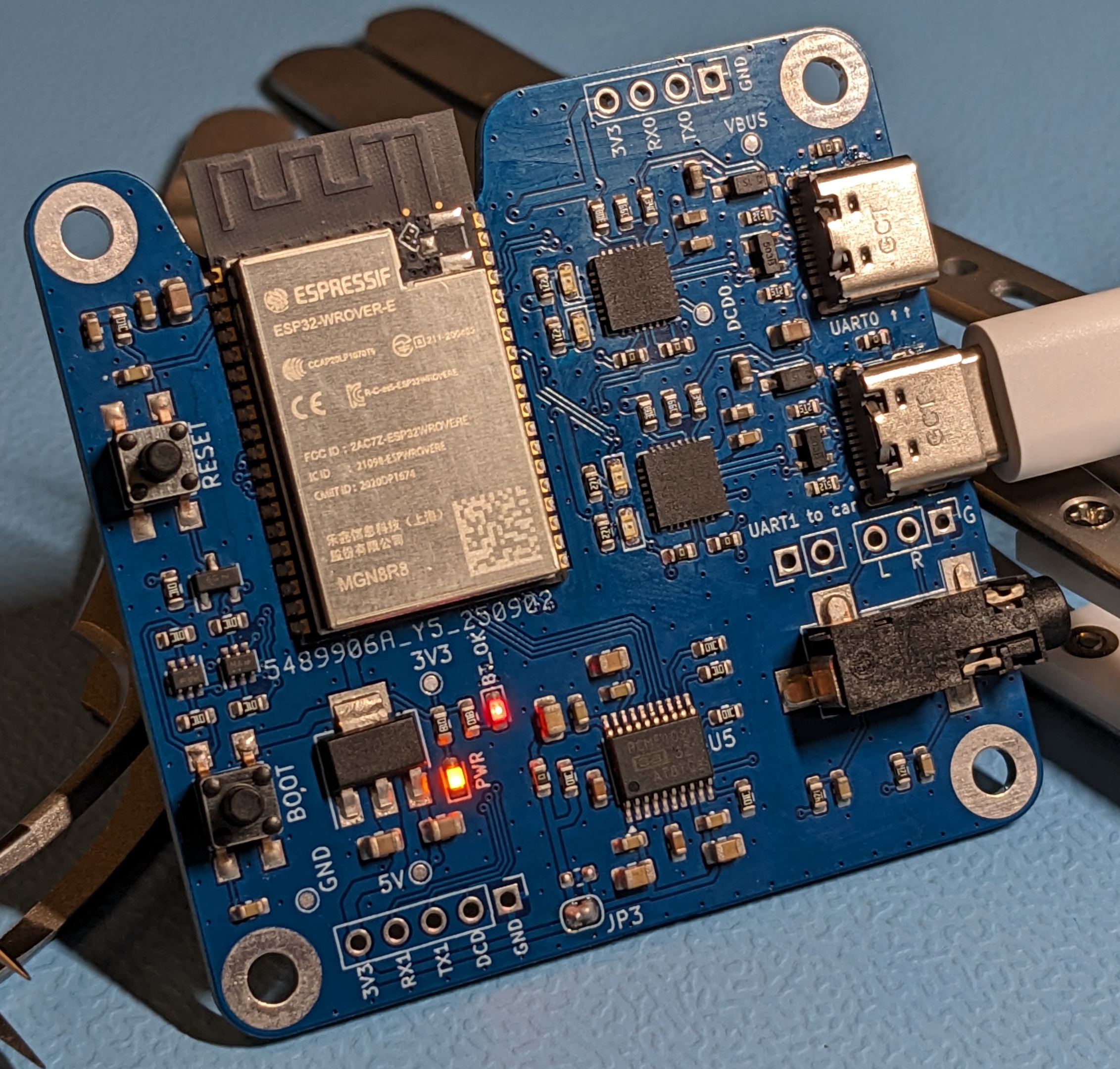

About the IPod ESP32 barebones PCB
IPod ESP32 barebones is an open source PCB design by martinroger, published on GitHub under the MIT license. It is a 2-layer board measuring 59.7 × 64.8 mm, with 14 components from 9 distinct parts.
Other key parts include the PL2303GS. By type, the board carries 5 resistors, 4 capacitors, 3 diodes, 1 IC and 1 connector.
It belongs with the audio, iot & wireless and dev boards & breakouts designs in this gallery.
From the project
An iPod emulator for 2006-2013 BMW Mini Coopers that need Bluetooth
Second generation Minis (R56, R57, R58...) did not come with Bluetooth music streaming unless the Visual Boost or Mini Connected navigation option was selected (which wasn't hugely popular). Some of the later Minis (usually called LCI, or facelift Mini) started shipping with iPod support in the form of an USB receptacle, a 3.5mm AUX input and a special "Y-Cable".

Main components on the IPod ESP32 barebones
IPod ESP32 barebones bill of materials (BOM)
14 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PL2303GS PL2303GL Prolific | SOIC127P600X170-8N | IC1 |
| 1 | 1001-011-01101 USB_A CNC Tech | USB_A_CNCTech_1001-011-01101_Horizontal | J1 |
| 3 | LTST-C190GKT 2.1V Lite-On Inc. | LED_0603_1608Metric | D1, D2, D3 |
| 1 | CL10A475KP8NNNC 4.7u Samsung Electro-Mechanics | C_0603_1608Metric | C1 |
| 1 | CC0603KRX7R7BB104 0.1u Yageo | C_0603_1608Metric | C2 |
| 1 | C0805C106K8PAC7800 10u Kemet | C_0805_2012Metric | C3 |
| 1 | CL10B105KP8NNNC 1u Samsung Electro-Mechanics | C_0603_1608Metric | C4 |
| 3 | RC0603FR-071KL 1K Yageo | R_0603_1608Metric | R2, R3, R4 |
| 2 | RC0603FR-0722RL 22 Yageo | R_0603_1608Metric | R5, R6 |
IPod ESP32 barebones design files
The KiCad project lives in the martinroger/ipodesp32 repository on GitHub; these links point at the commit this page was built from.
IPod ESP32 barebones: common questions
How big is the IPod ESP32 barebones PCB?
The IPod ESP32 barebones measures 59.7 × 64.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the IPod ESP32 barebones?
14 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the IPod ESP32 barebones design files?
From the martinroger/ipodesp32 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the IPod ESP32 barebones design in my own project?
Yes, under the terms of its MIT license, which martinroger chose for the repository.
