Acdcon PCB layout, top view — open source RP2040/RP2350 board by matsumotokohei

About the Acdcon PCB

Acdcon is an open source RP2040/RP2350 PCB design by matsumotokohei, published on GitHub. It is a 2-layer board measuring 212.4 × 133 mm, with 78 components from 54 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the 74HC4050. By type, the board carries 26 capacitors, 24 switches, 24 diodes, 2 connectors, 1 IC and 1 module.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

DIT leverless controller

A custom, budget-friendly 19-button leverless arcade controller featuring an aluminum top plate with custom Street Fighter 6 Alex artwork, Kailh MX mechanical switches (hot-swappable), MX-compatible keycaps, SK6812MINI-E RGB LEDs, a 0.96" I2C OLED display, and an exposed custom PCB design secured with M3 standoffs. Fully routed in KiCad, manufactured by JLCPCB, and powered by Raspberry Pi Pico with GP2040-CE.

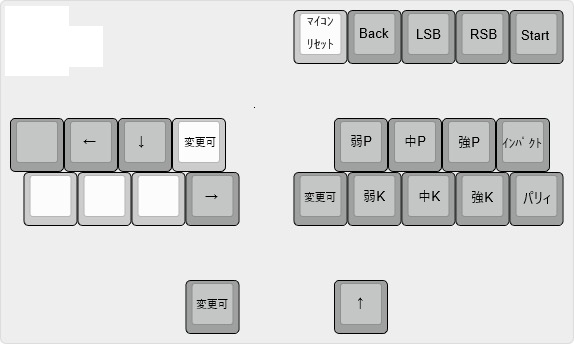

Acdcon, from the project README
From the project README

Main components on the Acdcon

74HC4050RaspberryPi_Pico

Acdcon bill of materials (BOM)

78 components, 54 distinct parts.

QtyPartRefs
1
74HC4050
U1
1
RaspberryPi_Pico
A1
1
3V3SCLSDAGND
J1
1
RUNVSYS3V3LEDGND
J2
1
RUN
SW1
1
BACK
SW2
1
LSB
SW3
1
RSB
SW4
1
START
SW5
1
NON1
SW6
1
LEFT
SW7
1
DOWN
SW8
1
TURBO
SW9
1
X
SW10
1
Y
SW11
1
RB
SW12
1
LB
SW13
1
NON2
SW14
1
NON3
SW15
1
NON4
SW16
Show 34 more
QtyPartRefs
1
RIGHT
SW17
1
A2
SW18
1
A
SW19
1
B
SW20
1
RT
SW21
1
LT
SW22
1
GUIDE
SW23
1
UP
SW24
1
LED_RUN
D1
1
LED_BACK
D2
1
LED_LSB
D3
1
LED_RSB
D4
1
LED_START
D5
1
LED_NON1
D6
1
LED_LEFT
D7
1
LED_DOWN
D8
1
LED_TURBO
D9
1
LED_X
D10
1
LED_Y
D11
1
LED_RB
D12
1
LED_LB
D13
1
LED_NON2
D14
1
LED_NON3
D15
1
LED_NON4
D16
1
LED_RIGHT
D17
1
LED_A2
D18
1
LED_A
D19
1
LED_B
D20
1
LED_RT
D21
1
LED_LT
D22
1
LED_GUIDE
D23
1
LED_UP
D24
25
0.1uF
C1, C2, C3, C4, C5, C6, C7, C8 +17
1
47uF
C25

Acdcon design files

The KiCad project lives in the matsumotokohei/dawnbox repository on GitHub; these links point at the commit this page was built from.

Acdcon: common questions

What microcontroller does the Acdcon use?

The Acdcon is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Acdcon PCB?

The Acdcon measures 212.4 × 133 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Acdcon?

78 components, from 54 distinct parts. The full bill of materials is listed on this page.

Where can I download the Acdcon design files?

From the matsumotokohei/dawnbox repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Acdcon design in my own project?

The repository has no license, so all rights stay with matsumotokohei. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Acdcon without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
