Rgb led audio

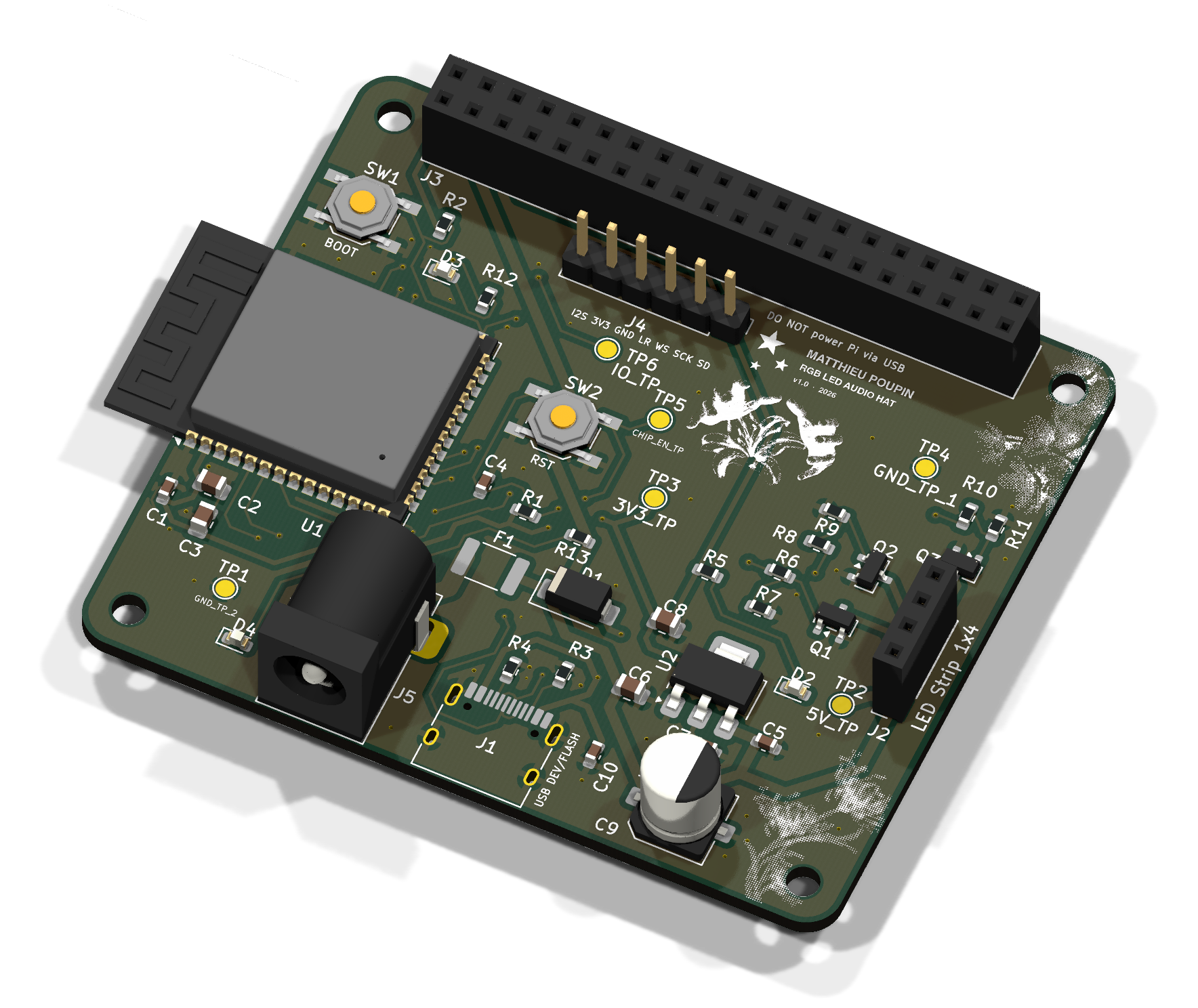

About the Rgb led audio PCB

Rgb led audio is an open source ESP32 PCB design by matthieupoupin3704-alt, published on GitHub. It is a board, with 46 components from 30 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the SGM2212-3.3. By type, the board carries 13 resistors, 10 capacitors, 6 test points, 5 connectors, 4 diodes and 3 transistors.

It belongs with the audio and dev boards & breakouts designs in this gallery.

From the project

Raspberry Pi HAT driving a 5 V analog RGB LED strip (common anode) from an ESP32-S3, with ambilight over UART and an optional I2S audio input.

Raspberry Pi HAT driving a 5 V analog RGB LED strip (common anode) from an ESP32-S3, with ambilight over UART and an optional I2S audio input.

Built to replace the cheap IR controller shipped with a generic 4-pin RGB strip.

Six exposed 1.5 mm pads, silkscreen-labelled, reachable with the HAT seated on a Pi.

Two grounds sit diagonally opposite so a probe is never far from a reference.

Main components on the Rgb led audio

ESP32-S3-WROOM-1SGM2212-3.3

Rgb led audio bill of materials (BOM)

46 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1
U1
1
SGM2212-3.3
U2
3
C181090
Q_NMOS_GSD
Q1, Q2, Q3
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
C5116483
LED Strip 1x4
J2
1
CONN_02X20_ODD_EVEN
Conn_02x20_Odd_Even
J3
1
CONN_01X06
Conn_01x06
J4
1
C84007
Barrel Jack DC
J5
1
C883162
Polyfuse 3A
F1
2
TS6635PA
SW1, SW2
1
GND_TP_2
TP1
1
5V_TP
TP2
1
3V3_TP
TP3
1
GND_TP_1
TP4
1
CHIP_EN_TP
TP5
1
IO_TP
TP6
1
SS14
D1
3
LED
D2, D3, D4
3
0.1UF
0.1uf
C1, C5, C7
3
10UF
10uf
C2, C6, C8
Show 10 more
QtyPartRefs
1
22UF
22uf
C3
1
1UF
1uf
C4
1
220UF
220uf
C9
1
0.1UF
100nf
C10
2
10K
10k
R1, R2
2
5.1K
5.1k
R3, R4
2
1k
R5, R13
3
100
R6, R8, R10
3
100K
100k
R7, R9, R11
1
330
R12

Rgb led audio design files

The KiCad project lives in the matthieupoupin3704-alt/rgb-led-audio repository on GitHub; these links point at the commit this page was built from.

Rgb led audio: common questions

What microcontroller does the Rgb led audio use?

The Rgb led audio is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How many components are on the Rgb led audio?

46 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rgb led audio design files?

From the matthieupoupin3704-alt/rgb-led-audio repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the Rgb led audio design in my own project?

The repository has no license, so all rights stay with matthieupoupin3704-alt. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rgb led audio without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
