First fpga

mattvenn·first-fpga-pcb·hardware/first-fpga-pcb.kicad_pcb

First fpga PCB layout, top view — open source FPGA board by mattvenn

About the First fpga PCB

First fpga is an open source FPGA PCB design by mattvenn, published on GitHub. It is a 2-layer board measuring 100 × 68 mm, with 60 components from 18 distinct parts.

Its main chip is the iCE40-HX4K-TQ144, from the FPGA family. Other key parts include the IS25LP016D-JBLE, TLV73312PDBV and TLV73333PDBV. By type, the board carries 22 capacitors, 13 resistors, 9 connectors, 5 diodes, 4 ICs and 3 inductors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

FPGA dev board based on Lattice iCE40 8k

Make my first PCB with an FPGA Keep it super simple and cheap Configured by on-board FLASH or direct with a Raspberry Pi 6 PMODs, 2 buttons, 2 LEDs, FLASH for configuration bitstreams.

There is also an ECP5 version of this board: https://github.com/mattvenn/basic-ecp5-pcb

A clock input. Has to be provided by an oscillator, it doesn't have a crystal driver. 1.2v core supply for the internal logic. 2.5v non volatile memory supply. Can be provided via a voltage drop over a diode from 3.3v. IO supply for the IO pins, different banks of IO can have different supplies. This design uses 3.3v for…

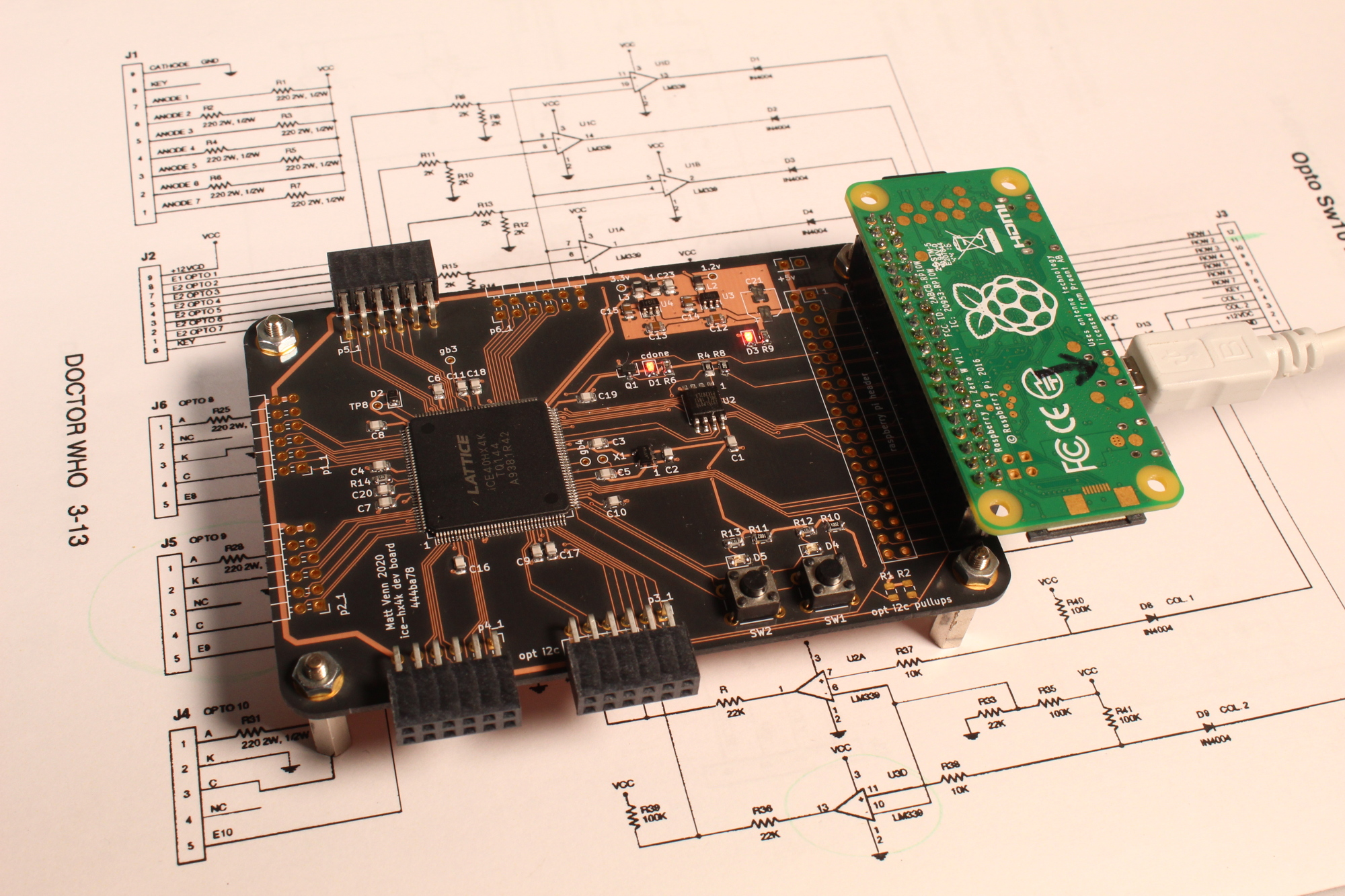

First fpga, from the project README
From the project README

Main components on the First fpga

iCE40-HX4K-TQ144IS25LP016D-JBLETLV73312PDBVTLV73333PDBV

First fpga bill of materials (BOM)

60 components, 18 distinct parts.

QtyPartRefs
1
iCE40-HX4K-TQ144
U1
1
IS25LP016D-JBLE
U2
1
TLV73312PDBV
U3
1
TLV73333PDBV
U4
1
Q_NMOS_GSD
Q1
1
SiT2001B
X1
1
Conn_01x02
J1
2
Conn_02x20_Odd_Even
J2, J9
6
Conn_02x06_Odd_Even
J3, J4, J5, J6, J7, J8
2
SW_Push
SW1, SW2
4
LED
D1, D3, D4, D5
1
D
D2
3
L
L1, L2, L3
17
100n
C1, C2, C3, C4, C5, C6, C7, C8 +9
4
1u
C12, C13, C14, C15
1
CP
C21
8
10k
R1, R2, R3, R4, R5, R8, R10, R11
5
200R
R6, R9, R12, R13, R14

First fpga design files

The KiCad project lives in the mattvenn/first-fpga-pcb repository on GitHub; these links point at the commit this page was built from.

First fpga: common questions

What microcontroller does the First fpga use?

The First fpga is built around the iCE40-HX4K-TQ144, from the FPGA family.

How big is the First fpga PCB?

The First fpga measures 100 × 68 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the First fpga?

60 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the First fpga design files?

From the mattvenn/first-fpga-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the First fpga design in my own project?

The repository has no license, so all rights stay with mattvenn. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the First fpga without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
