PicoFlip-X PCB layout, top view — open source RP2040/RP2350 board by mavory

About the PicoFlip-X PCB

PicoFlip-X is an open source RP2040/RP2350 PCB design by mavory, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 50 components from 24 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C39051, C2848306, C2843335 and C24112. By type, the board carries 25 capacitors, 12 resistors, 5 ICs, 4 connectors, 2 switches and 1 crystal.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

PicoFlip X is a compact RP2040 development board with a built-in IMU for motion tracking, there's also a humidity and temperature sensor! It has several status LEDs, buttons,...

PicoFlip X is a compact RP2040 development board with a built-in IMU for motion tracking, there's also a humidity and temperature sensor! It has several status LEDs, buttons,...

- DevBoard powered by RP2040 chip - Humidity and temperature sensor built right on the PCB - 2 LEDs for visual feedback (PWR and RST) - IMU - MPU 6050 to monitor the board's current position, all built-in - USB-C connectivity - 2-layer PCB, so it's cost-effective to manufacture! - Modified GPIO pin layout and added one extra +3V3 - Custom silkscreen with images and descriptions

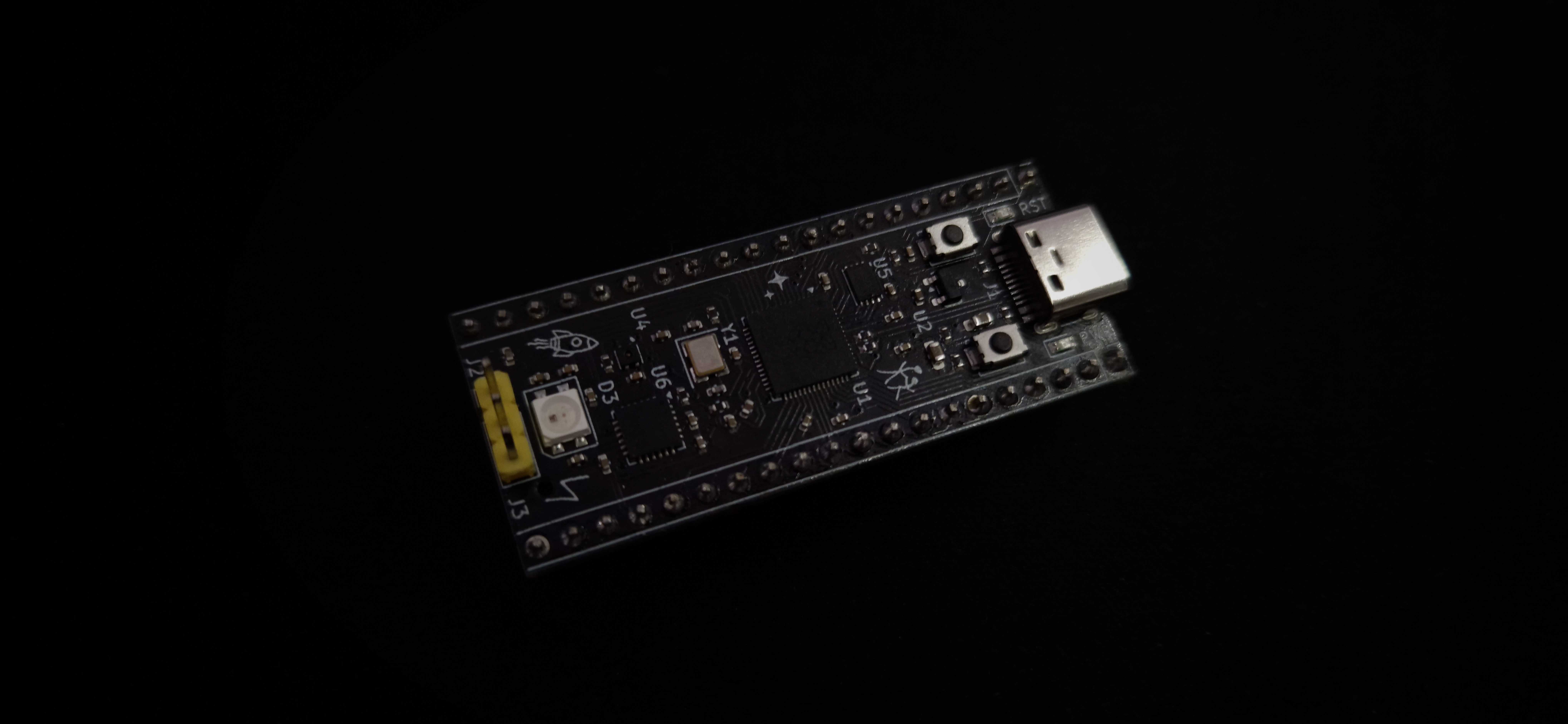

PicoFlip-X, from the project README
From the project README

Main components on the PicoFlip-X

C2040C39051C2848306C2843335C24112

PicoFlip-X bill of materials (BOM)

50 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C2040
RP2040
U1
1
C39051
MCP1700x-330xxTT
U2
1
C2848306
SHT4x
U4
1
C2843335
W25Q16JVZPIQ TR
U5
1
C24112
MPU-6050
U6
1
C9002
12MHz
Y1
1
C165948
USB_C_Receptacle_USB2.0_14P
J1
2
C50981
Conn_01x20
J2, J3
1
C49257
Conn_01x03
J4
2
C720477
SW_Push
SW1, SW2
1
C7423117
SK6812MINI
D3
2
C52923
1uF
C1, C10
12
C1525
0.1uF
C2, C3, C4, C5, C6, C7, C8, C9 +4
2
C19702
10uF
C13, C14
2
C1562
33pF
C15, C16
2
C60133
10nF
C18, C25
4
100NF
100nF
C19, C21, C22, C24
1
C12530
2.2uF
C20
2
C25905
5.1K
R1, R2
2
C25100
27
R3, R4
Show 4 more
QtyPartRefs
3
C11702
1K
R5, R6, R7
2
C25900
4.7K
R8, R9
1
C25744
10K
R10
2
C25130
680
R11, R12

PicoFlip-X design files

The KiCad project lives in the mavory/PicoFlip-X repository on GitHub; these links point at the commit this page was built from.

PicoFlip-X: common questions

What microcontroller does the PicoFlip-X use?

The PicoFlip-X is built around the C2040, from the RP2040/RP2350 family.

How big is the PicoFlip-X PCB?

The PicoFlip-X measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PicoFlip-X?

50 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PicoFlip-X design files?

From the mavory/PicoFlip-X repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the PicoFlip-X design in my own project?

The repository has no license, so all rights stay with mavory. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the PicoFlip-X without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
