MayaPosch·LEDNip

LEDNip PCB layout, top view — open source STM32 board by MayaPosch

About the LEDNip PCB

LEDNip is an open source STM32 PCB design by MayaPosch, published on GitHub under the BSD-3-Clause license. It is a 4-layer board measuring 90 × 100 mm, with 148 components from 45 distinct parts.

Its main chip is the STM32F427VGT6, from the STM32 family. Other key parts include the L7805, LM324, MCP2562-E-P and LAN8742A. By type, the board carries 54 resistors, 47 capacitors, 11 LEDs, 5 ICs, 5 connectors and 4 diodes.

From the project

STM32F427-based developer board with 5 channels for controlling LEDs.

LED'Nip is a 5-channel Cortex-M4-based LED controller and general STM32 development board. It has the following features:

- STM32F427 microcontroller (Cortex-M4, 180 MHz). - 100 MBit Ethernet (LAN8472A). - CAN (RJ-45 jacks). - Three 12V channels for RGB LED strips or similar. - Two channels for ~25 Watt LED panels each (5.5/2.1 mm jack) with constant current regulator (1A LDD-1000H or equivalent per channel). - 24 VDC board supply voltage. - SPI, I2C, U(S)ART, I2S and JTAG broken out into JST PH headers.

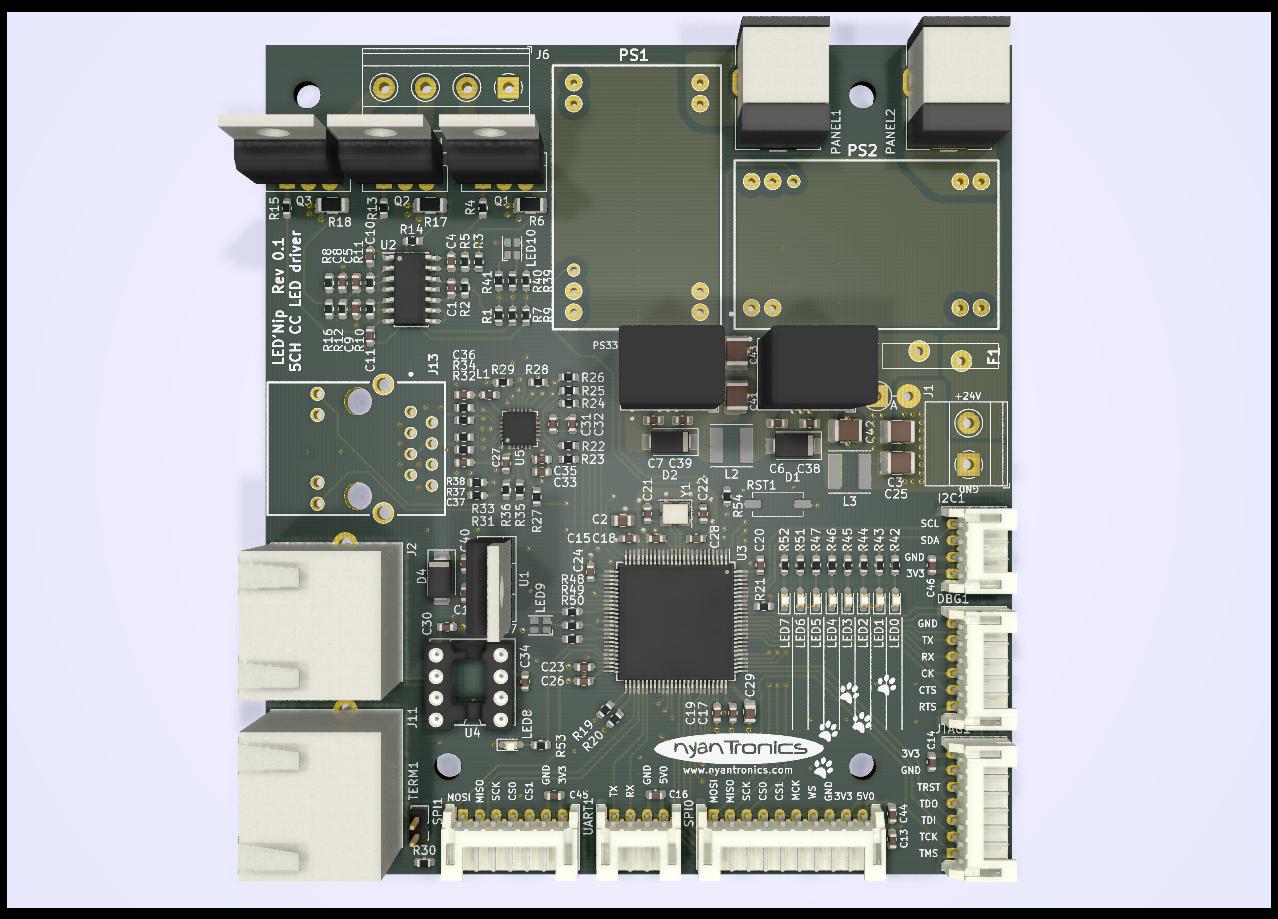

LEDNip, from the project README
From the project README

Main components on the LEDNip

L7805LM324STM32F427VGT6MCP2562-E-PLAN8742A

LEDNip bill of materials (BOM)

148 components, 45 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
L7805
U1
1
LM324
U2
1
STM32F427VGT6
U3
1
MCP2562-E-P
U4
1
LAN8742A
U5
3
IRF540N
Q1, Q2, Q3
1
Crystal_GND24
Y1
1
Conn_01x02
J1
2
RJ45_Shielded
J2, J11
1
Conn_01x04
J6
1
HR911105A
J13
1
Conn_01x06
DBG1
1
Polyfuse 3A
F1
2
Conn_01x04
I2C1, UART1
2
Conn_01x07
JTAG1, SPI1
2
Conn_01x02
PANEL1, PANEL2
2
LDD-1000H
PS1, PS2
1
R-78B12-2.0
PS12
1
R-78B3.3-1.0
PS33
1
SKQYABE010
RST1
Show 25 more
QtyPartRefs
1
Conn_01x10
SPI0
1
Conn_01x02
TERM1
8
LED_AMB
LED0, LED1, LED2, LED3, LED4, LED5, LED6, LED7
1
LED_GN
LED8
2
ASMB-TTF0-0A20B
LED9, LED11
3
1D4004
D1, D2, D4
1
1N4001
D12
1
FB
L1
2
4.7µH
L2, L3
7
2.2uF
C1, C8, C9, C19, C23, C32, C35
3
4.7uF
C2, C29, C47
5
22µF
C3, C25, C41, C42, C43
4
10nF
C4, C10, C11, C33
26
100nF
C5, C6, C7, C12, C13, C14, C15, C16 +18
2
11pF
C21, C22
3
33k
R1, R7, R9
6
2.2k
R2, R5, R8, R10, R14, R16
3
4M7
R3, R11, R12
6
120R
R4, R13, R15, R30, R39, R54
3
0.22
R6, R17, R18
8
22R
R19, R20, R22, R23, R24, R25, R26, R27
16
1k
R21, R35, R36, R40, R41, R42, R43, R44 +8
4
12k
R28, R29, R31, R33
4
49.9
R32, R34, R37, R38
1
120
R50

LEDNip design files

The KiCad project lives in the MayaPosch/LEDNip repository on GitHub; these links point at the commit this page was built from.

LEDNip: common questions

What microcontroller does the LEDNip use?

The LEDNip is built around the STM32F427VGT6, from the STM32 family.

How big is the LEDNip PCB?

The LEDNip measures 90 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the LEDNip?

148 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LEDNip design files?

From the MayaPosch/LEDNip repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the LEDNip design in my own project?

Yes, under the terms of its BSD-3-Clause license, which MayaPosch chose for the repository.

Can I test firmware for the LEDNip without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
