DoorbellCamPhy PCB layout, top view — open source ESP32 board by mc-cat-tty

About the DoorbellCamPhy PCB

DoorbellCamPhy is an open source ESP32 PCB design by mc-cat-tty, published on GitHub. It is a 2-layer board measuring 81.6 × 97.9 mm, with 31 components from 15 distinct parts.

Its main chip is the ESP32-WROOM-32E (8MB), from the ESP32 family. Other key parts include the CD4067BEE4 and HT75xx-1-SOT89. By type, the board carries 16 LEDs, 5 connectors, 3 ICs, 3 resistors, 2 jumpers and 2 capacitors.

From the project

Part of the DoorbellCam project: physical layer (pcb and 3d prints).

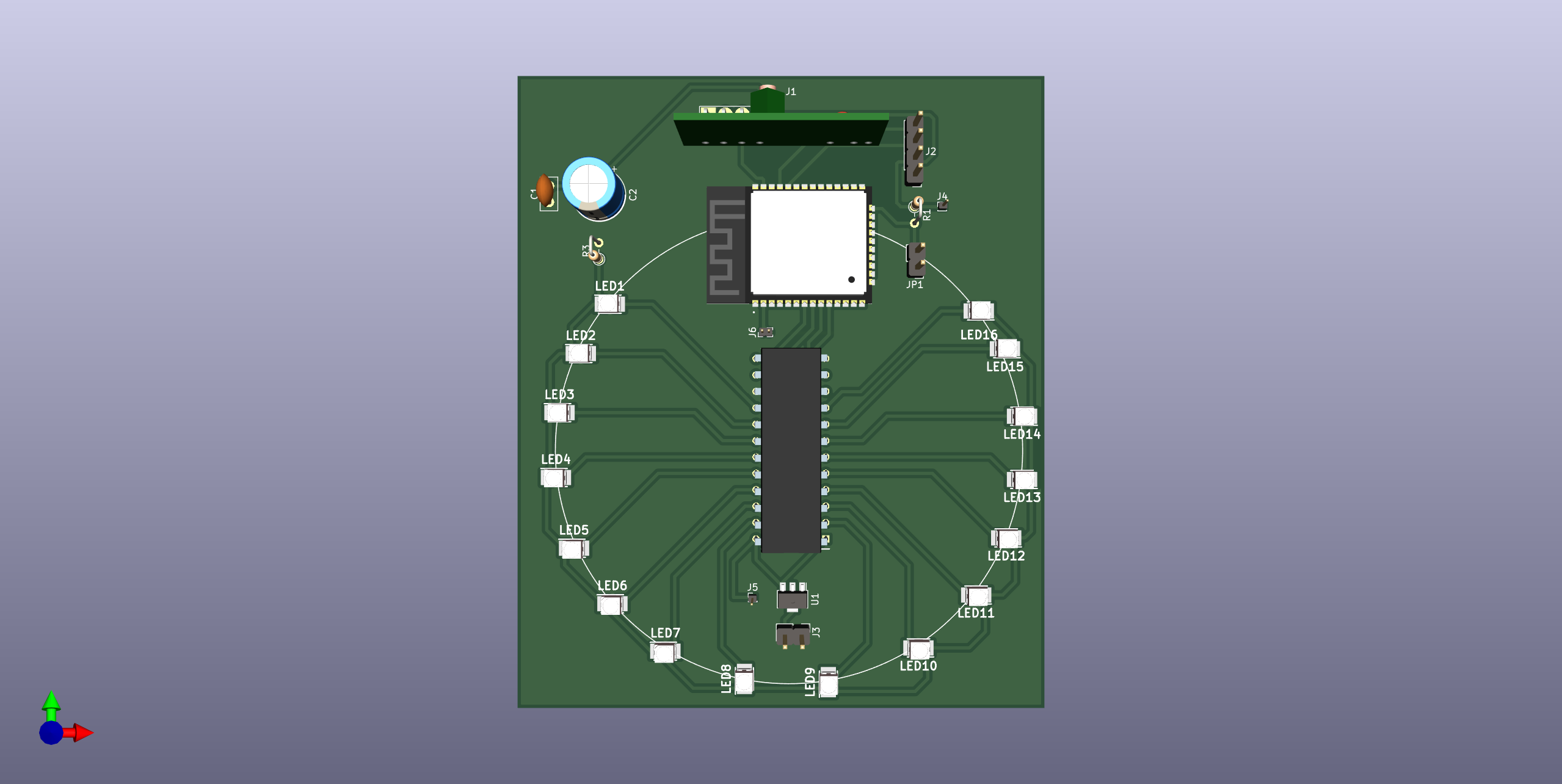

DoorbellCamPhy, from the project README
From the project README

Main components on the DoorbellCamPhy

CD4067BEE4ESP32-WROOM-32E (8MB)HT75xx-1-SOT89

DoorbellCamPhy bill of materials (BOM)

31 components, 15 distinct parts.

QtyPartRefs
1
CD4067BEE4
IC1
1
ESP32-WROOM-32E (8MB)
ESP32-WROOM-32E__8MB_
IC2
1
HT75xx-1-SOT89
U1
1
RC_433_MHZ_RF
J1
1
UART_Conn
J2
1
Power
J3
1
Vcc
J5
1
Vcc
J6
1
Boot_Jumper_Download
JP3
1
Enable_Jumper
JP4
16
PLCC2 3528
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +8
1
0.1uF
C1
1
4.7uF
C2
2
10kΩ
R1, R2
1
100Ω
R3

DoorbellCamPhy design files

The KiCad project lives in the mc-cat-tty/DoorbellCamPhy repository on GitHub; these links point at the commit this page was built from.

DoorbellCamPhy: common questions

What microcontroller does the DoorbellCamPhy use?

The DoorbellCamPhy is built around the ESP32-WROOM-32E (8MB), from the ESP32 family.

How big is the DoorbellCamPhy PCB?

The DoorbellCamPhy measures 81.6 × 97.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DoorbellCamPhy?

31 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the DoorbellCamPhy design files?

From the mc-cat-tty/DoorbellCamPhy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DoorbellCamPhy design in my own project?

The repository has no license, so all rights stay with mc-cat-tty. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the DoorbellCamPhy without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
