My babys got led

mcqn·my-babys-got-led·electronics/MyBabysGotLED.kicad_pcb

My babys got led PCB layout, top view — open source ESP32 board by mcqn

About the My babys got led PCB

My babys got led is an open source ESP32 PCB design by mcqn, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 120 × 90 mm, with 35 components from 20 distinct parts.

Its main chip is the ESP-13-WROOM-02, from the ESP32 family. Other key parts include the SN74AHCT125 and LM1117-3.3. By type, the board carries 10 resistors, 7 capacitors, 6 connectors, 4 fuses, 3 ICs and 3 diodes.

It belongs with the displays & leds designs in this gallery.

From the project

Simple ESP8266 board to drive WS2812 LED strips

An ESP8266 board to drive Neopixel/WS2812 LED strips, for plug-and-play use with an ATX power supply. The board is OSHW certified. Latest version now has three injection points with 8A fuses for safety, to manage the high power of ATX power supplies.

See the My Baby's Got LED product page on the MCQN website for full details.

The finished product is available for sale on Tindie:

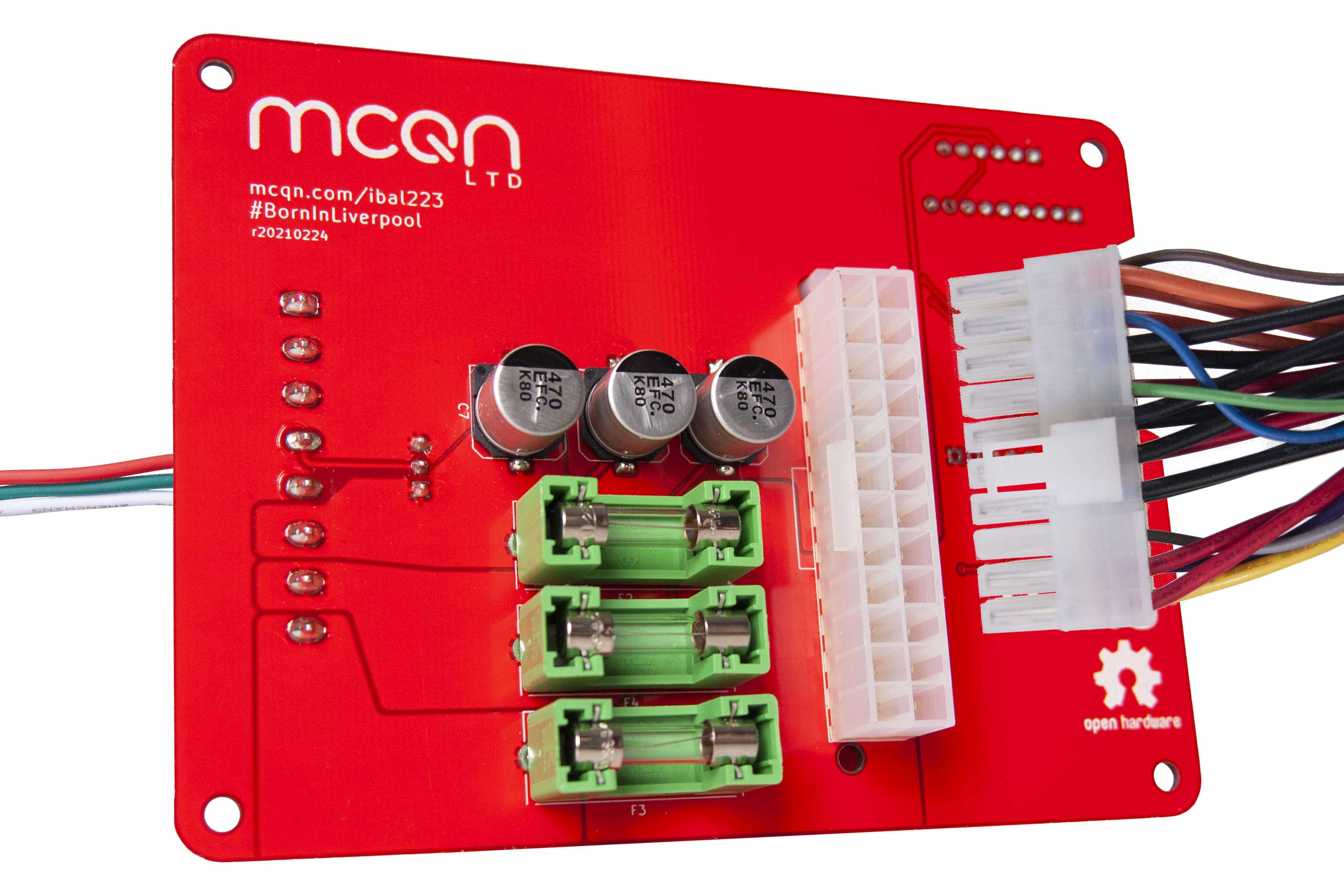

My babys got led, from the project README
From the project README

Main components on the My babys got led

ESP-13-WROOM-02SN74AHCT125LM1117-3.3

My babys got led bill of materials (BOM)

35 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP-13-WROOM-02
U1
1
SN74AHCT125
U2
1
LM1117-3.3
U3
1
NJT4031NT1G
Q1
1
APA102
J1
1
WS2812
J2
1
Serial
J3
2
CONN_01X09
P1, P2
1
WM9738
ATX_Power_2x12_Connector
P3
1
Polyfuse
F1
3
Fuse
F2, F3, F4
1
Reset
SW1
3
LED
D4, D5, D6
3
470uF
C1, C6, C7
1
C47nF
C2
2
0.1uF
C3, C5
1
10uF
C4
3
R10k
R1, R2, R10
3
470R
R3, R4, R5
4
R560
R6, R7, R8, R9

My babys got led design files

The KiCad project lives in the mcqn/my-babys-got-led repository on GitHub; these links point at the commit this page was built from.

My babys got led: common questions

What microcontroller does the My babys got led use?

The My babys got led is built around the ESP-13-WROOM-02, from the ESP32 family.

How big is the My babys got led PCB?

The My babys got led measures 120 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the My babys got led?

35 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the My babys got led design files?

From the mcqn/my-babys-got-led repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the My babys got led design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which mcqn chose for the repository.

Can I test firmware for the My babys got led without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
