About the DS2000 PCB

DS2000 is an open source RP2040/RP2350 PCB design by Mechanix97, published on GitHub under the AGPL-3.0 license. It is a 4-layer board measuring 72 × 46 mm, with 46 components from 24 distinct parts.

Its main chip is the RP2350A, from the RP2040/RP2350 family. Other key parts include the USBLC6-2SC6, AP2112K-3.3TRG1, W25Q32JVSSIQ and 74AHCT1G125GW,125. By type, the board carries 22 capacitors, 10 resistors, 5 ICs, 3 switches, 2 diodes and 1 crystal.

It belongs with the keyboards designs in this gallery.

From the project

Kicad files for DS2000 device

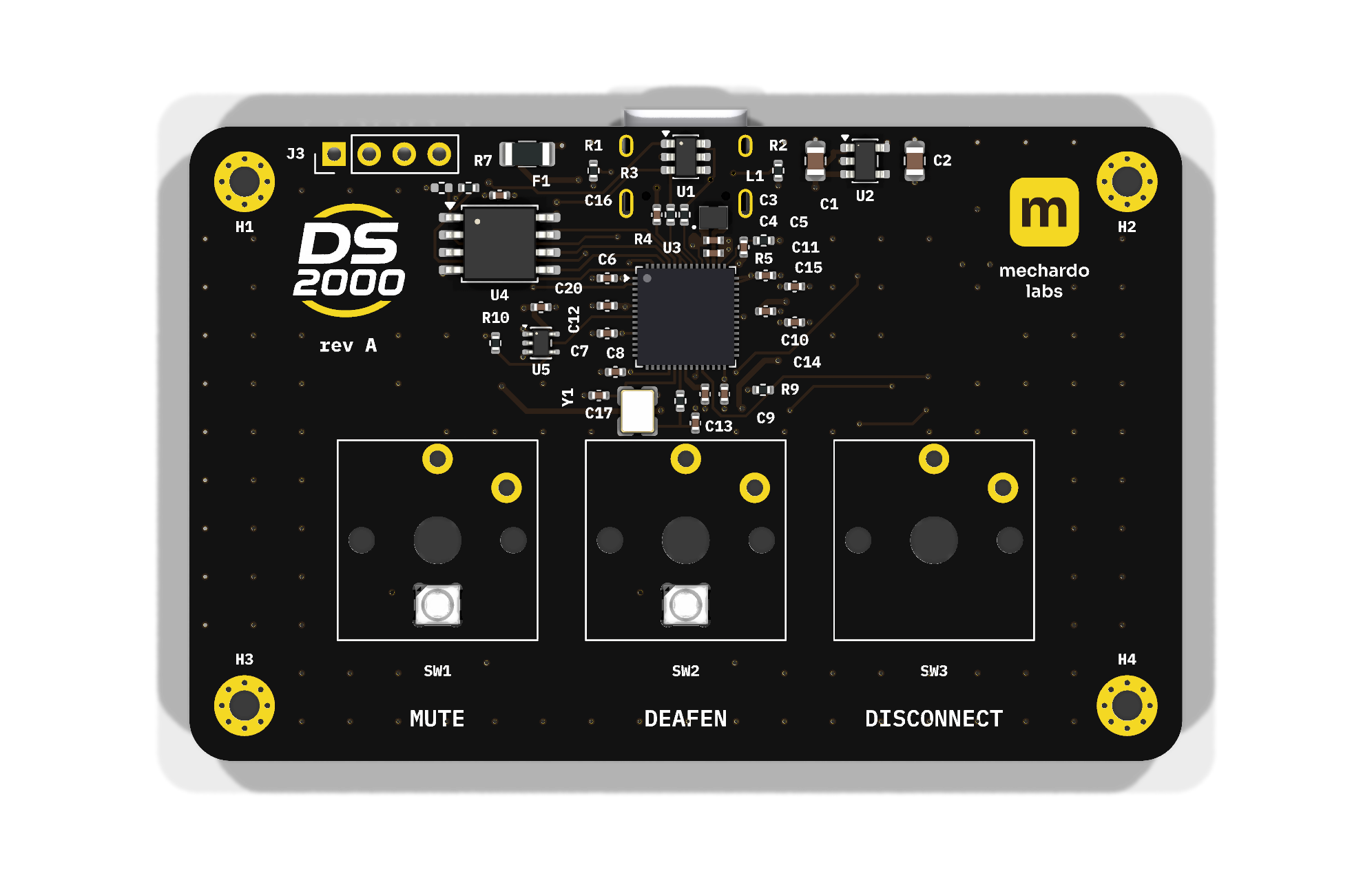

KiCad design for the DS2000, a three-key Discord control deck. Mute and deafen are lit from underneath by an RGB LED; disconnect has none. The board is also the device's visible top face: the RP2350A, the logos and the legends are meant to be seen. It sits in a 3D-printed tray (DS2000-Enclosure).

Design decisions, block descriptions, BOM and open items: docs/design-rev-a.md.

DS2000, from the project README — From the project README

Main components on the DS2000

USBLC6-2SC6 AP2112K-3.3TRG1 RP2350A W25Q32JVSSIQ 74AHCT1G125GW,125

DS2000 bill of materials (BOM)

46 components, 24 distinct parts.

Qty	Part	Footprint	Refs
1	USBLC6-2SC6 STMicroelectronics	SOT-23-6	U1
1	AP2112K-3.3TRG1 AP2112K-3.3 Diodes Inc	SOT-23-5	U2
1	RP2350A Raspberry Pi	QFN-60-1EP_7x7mm_P0.4mm_EP3.4x3.4mm_ThermalVias	U3
1	W25Q32JVSSIQ W25Q32JVSS Winbond	SOIC-8_5.3x5.3mm_P1.27mm	U4
1	74AHCT1G125GW,125 74AHCT1G125 Nexperia	SOT-353_SC-70-5	U5
1	ABM8-272-T3 12MHz Abracon	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	TYPE-C-31-M-12 USB-C Korean Hroparts Elec	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J1
1	1206L050/15YR 500mA hold Littelfuse	Fuse_1206_3216Metric	F1
1	MUTE	SW_Kailh_Choc_V1_1.00u	SW1
1	DEAFEN	SW_Kailh_Choc_V1_1.00u	SW2
1	DISCONNECT	SW_Kailh_Choc_V1_1.00u	SW3
2	SK6812MINI-E Opsco	LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount	D1, D2
1	AOTA-B201610S3R3-101-T 3.3u Abracon	L_Abracon_AOTA-B201610S3R3-101-T	L1
2	CL21A106KAYNNNE 10u Samsung Electro-Mechanics	C_0805_2012Metric	C1, C2
2	GRM155R60J475ME47D 4.7u Murata	C_0402_1005Metric_Wide	C3, C4
1	GRM155R60J475ME47D 4.7u Murata	C_0402_1005Metric	C5
15	CL05B104KO5NNNC 100n Samsung Electro-Mechanics	C_0402_1005Metric	C6, C7, C8, C9, C10, C11, C12, C13 +7
2	0402CG150J500NT 15p FH	C_0402_1005Metric	C17, C18
2	0402WGF5101TCE 5.1k UNI-ROYAL	R_0402_1005Metric	R1, R2
2	RC0402FR-0727RL 27 Yageo	R_0402_1005Metric	R3, R4

Show 4 more

Qty	Part	Footprint	Refs
1	RC0402FR-0733RL 33 Yageo	R_0402_1005Metric	R5
2	0402WGF1001TCE 1k UNI-ROYAL	R_0402_1005Metric	R6, R8
2	0402WGF1002TCE 10k UNI-ROYAL	R_0402_1005Metric	R7, R9
1	0402WGF1000TCE 100 UNI-ROYAL	R_0402_1005Metric	R10

DS2000 design files

The KiCad project lives in the Mechanix97/DS2000-PCB repository on GitHub; these links point at the commit this page was built from.

LayoutDS2000.kicad_pcb
SchematicDS2000.kicad_sch
