About the Delorean PCB

Delorean is an open source Raspberry Pi PCB design by MeghanaM4, published on GitHub under the MIT license. It is a 2-layer board measuring 160.4 × 77.5 mm, with 20 components from 5 distinct parts.

Its main chip is the RaspberryPi_Pico_W, from the Raspberry Pi family. Other key parts include the boost_conv and K155ID1. By type, the board carries 7 ICs, 6 resistors and 1 module.

It belongs with the displays & leds designs in this gallery.

From the project

a super cool nixie clock

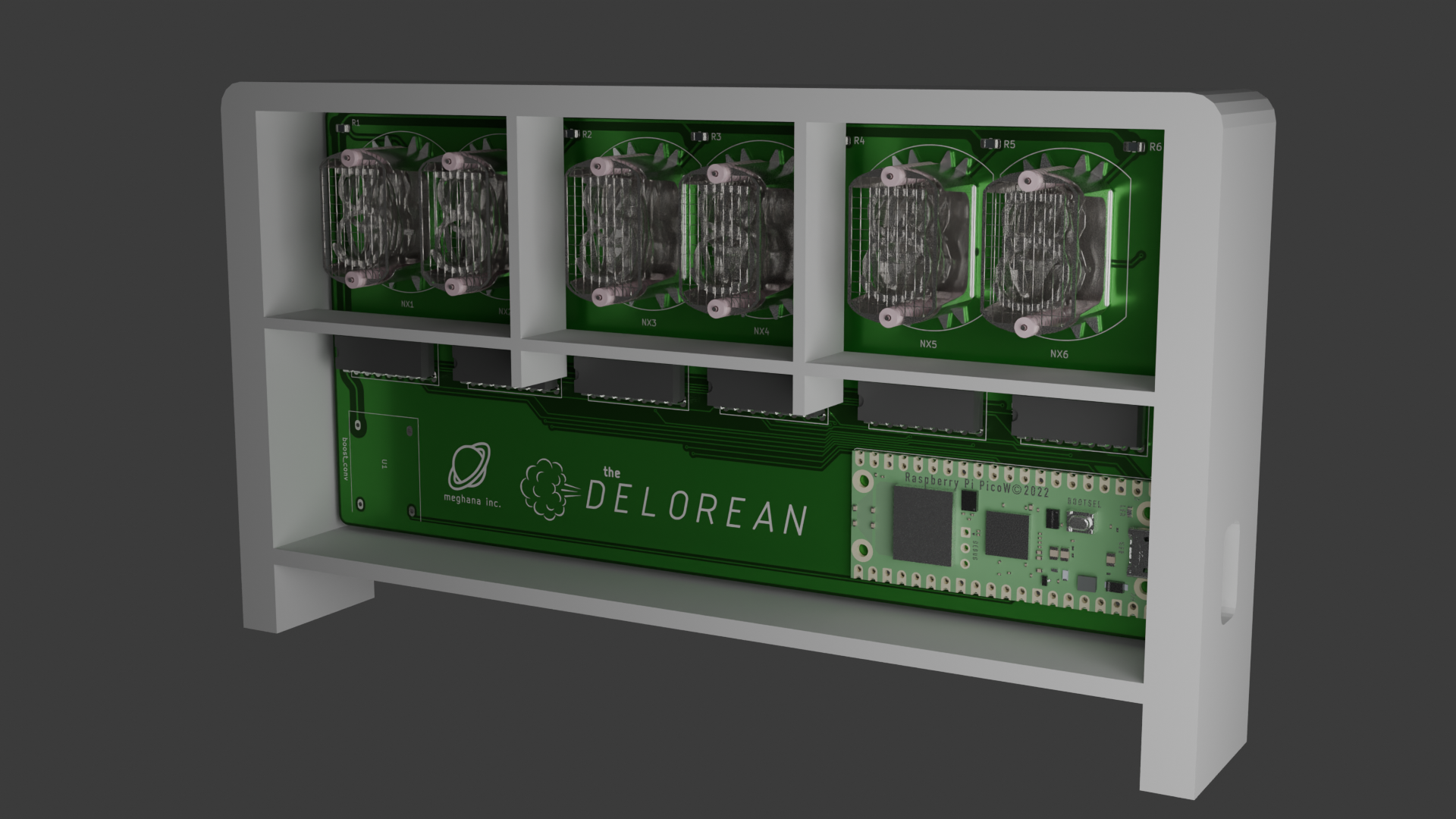

Delorean, from the project README
From the project README

Main components on the Delorean

boost_convK155ID1RaspberryPi_Pico_W

Delorean bill of materials (BOM)

20 components, 5 distinct parts.

QtyPartRefs
1
boost_conv
U1
6
K155ID1
U2, U3, U4, U5, U6, U7
1
RaspberryPi_Pico_W
A1
6
IN-12A
NX1, NX2, NX3, NX4, NX5, NX6
6
11kΩ
R1, R2, R3, R4, R5, R6

Delorean design files

The KiCad project lives in the MeghanaM4/delorean repository on GitHub; these links point at the commit this page was built from.

Delorean: common questions

What microcontroller does the Delorean use?

The Delorean is built around the RaspberryPi_Pico_W, from the Raspberry Pi family.

How big is the Delorean PCB?

The Delorean measures 160.4 × 77.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Delorean?

20 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Delorean design files?

From the MeghanaM4/delorean repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Delorean design in my own project?

Yes, under the terms of its MIT license, which MeghanaM4 chose for the repository.

Can I test firmware for the Delorean without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
