miata-bot·can-link·hardware/underglow-controller/RGB-controller.kicad_pcb

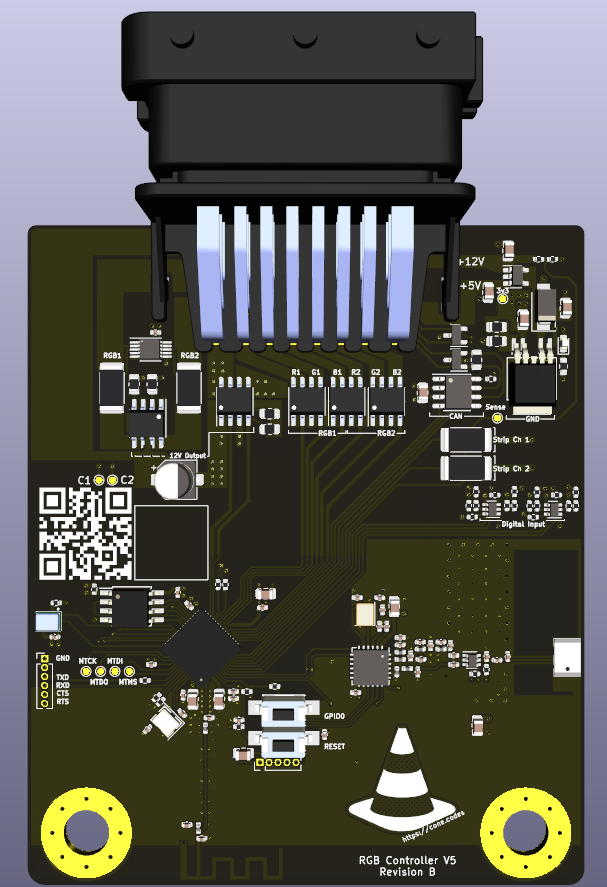

${Title} PCB layout, top view — open source ESP32 board by miata-bot
Simulate this board

About the ${Title} PCB

${Title} is an open source ESP32 PCB design by miata-bot, published on GitHub. It is a 4-layer board measuring 78.5 × 95 mm, with 152 components from 51 distinct parts.

Its main chip is the ESP32-S3R2, from the ESP32 family. Other key parts include the W25Q128JVS, BD33C0AWFP-CE2, SN65HVD230, INA2181A1IDGSR and ZXGD3005E6TA. By type, the board carries 70 resistors, 34 capacitors, 16 diodes, 15 ICs, 7 transistors and 3 inductors.

From the project

Automotive RGB Controller

Device designed to control RGB LEDs and syncronize across multiple nodes via packet radio.

${Title}, from the project README
From the project README

Main components on the ${Title}

ESP32-S3R2W25Q128JVSBD33C0AWFP-CE2SN65HVD230INA2181A1IDGSRZXGD3005E6TAUCC27322QDRQ1COM-13909

${Title} bill of materials (BOM)

152 components, 51 distinct parts.

QtyPartRefs
1
ESP32-S3R2
U101
1
W25Q128JVS
U102
1
BD33C0AWFP-CE2
U301
1
SN65HVD230
U401
1
INA2181A1IDGSR
U601
8
ZXGD3005E6TA
U602, U603, U604, U605, U606, U607, U608, U609
2
UCC27322QDRQ1
U610, U611
1
COM-13909
MOD501
4
SQ4282EY-T1_BE3
Q601, Q602, Q603, Q607
2
SBC847CDW1T1G
Q604, Q605
1
AUIRF7316QTR
Q606
1
40MHZ
Y101
1
U.FL-R-SMT-1(10)
J501
1
7488910915
AE501
1
47948-0001
ANT101
2
SW_Push
SW101, SW102
1
PESD2CANFD24V-T
D202
2
RB496EA
D301, D304
2
BYS10-45HE3_A/H
D302, D305
1
GRN
D303
Show 31 more
QtyPartRefs
2
BZT52HC3V3WF-7
D601, D602
8
ACDBA340-HF
D603, D604, D605, D606, D607, D608, D609, D610
2
2nH
L101, L103
1
2.2nH
L102
8
0.1uF
C101, C102, C103, C106, C108, C110, C118, C601
4
1uF
C104, C111, C117, C401
6
10uF
C105, C107, C109, C301, C302, C523
2
16pF
C112, C113
1
4.6pF
C114
1
4pF
C115
2
2pF
C116, C119
2
1uF
C303, C304
1
DNF
C305
4
DNF
C501, C502, C504, C521
1
0.5pF
C503
1
1.2pF
C520
1
10uF
C602
2
100R
R23, R24
13
10k
R101, R106, R107, R108, R109, R605, R606, R607 +5
5
499R
R102, R609, R612, R615, R618
4
0R
R103, R104, R502, R504
1
100k
R105
1
56.7k
R301
5
10k
R302, R601, R602, R603, R604
1
240R
R303
1
36k
R304
1
10k
R305
1
120,DNF
R401
15
1k
R402, R608, R611, R614, R617, R623, R624, R625 +7
2
33m
R621, R622
18
0R
R629, R630, R631, R632, R633, R634, R635, R636 +10
