About the RPi pHat-Thermocouple PCB

RPi pHat-Thermocouple is an open source PCB design by mikelawrence, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 30 mm, with 54 components from 30 distinct parts.

Other key parts include the MAX31850KATB+, DS18S20+, AT24CS32-MAHM-E, LMZ21700SILR and MCP1754ST-3302E/MB. By type, the board carries 17 capacitors, 9 resistors, 7 ICs, 6 connectors, 6 inductors and 4 diodes.

It belongs with the iot & wireless, sensors and dev boards & breakouts designs in this gallery.

From the project

Raspberry Pi Thermocouple pHat

The Raspberry Pi Zero sized Hats are now officially called Micro-Hats or uHats but for consistency sake, this board's name will remain Raspberry Pi Thermocouple pHat.

This is a Raspberry Pi Micro-Hat PCB that supports:

Three MAX31850 1-Wire Thermocouple Converters for remote temperature sensing DS18S20 1-Wire Thermometer for local Hat temperature * Magnetic Buzzer/Alert

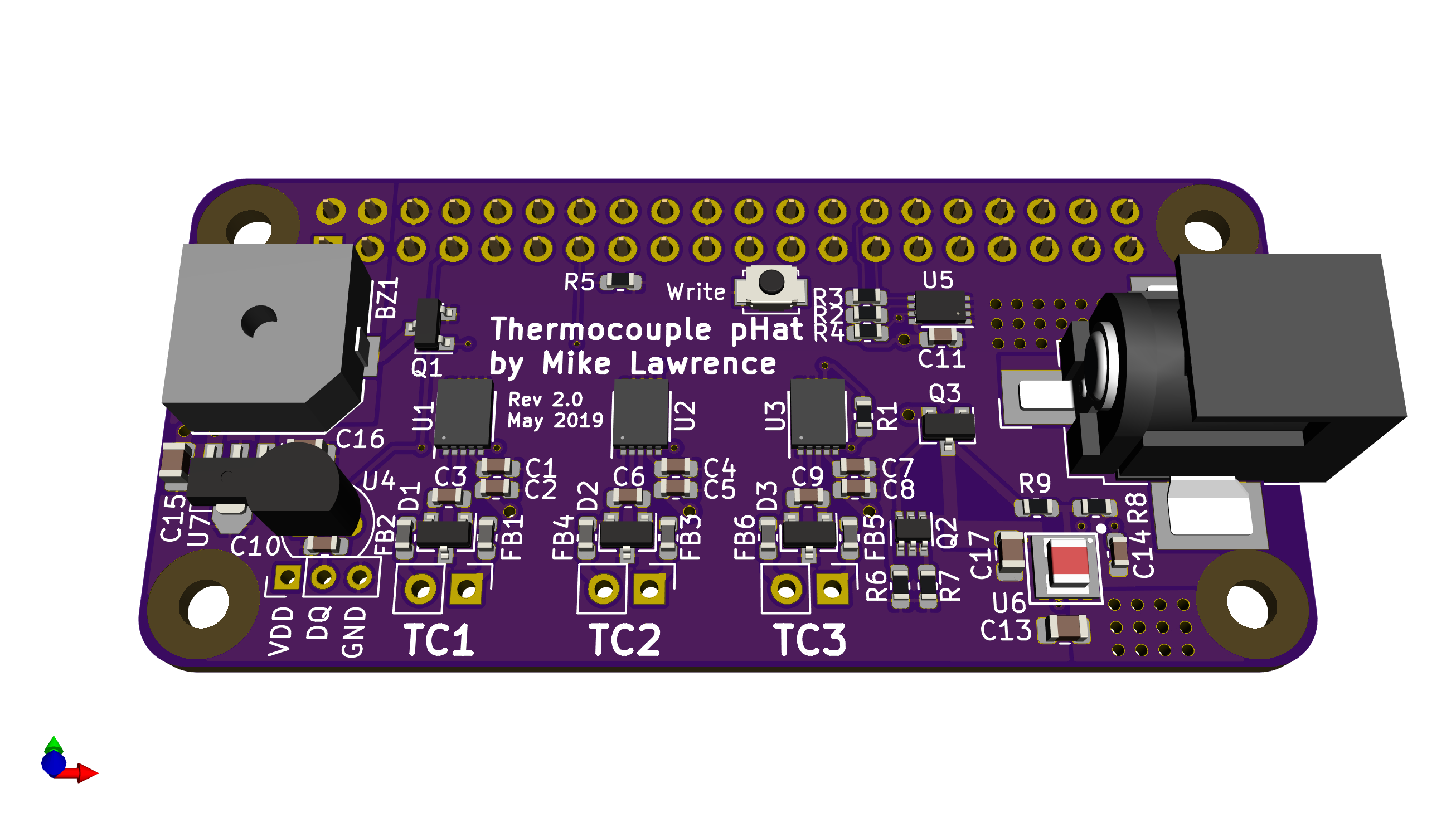

RPi pHat-Thermocouple, from the project README
From the project README

Main components on the RPi pHat-Thermocouple

MAX31850KATB+DS18S20+AT24CS32-MAHM-ELMZ21700SILRMCP1754ST-3302E/MB

RPi pHat-Thermocouple bill of materials (BOM)

54 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
MAX31850KATB+
MAX31850K
Maxim
U1, U2, U3
1
DS18S20+
DS18S20
Maxim
U4
1
AT24CS32-MAHM-E
AT24CS32
Atmel
U5
1
LMZ21700SILR
LMZ21700
TI
U6
1
MCP1754ST-3302E/MB
MCP1754ST
Microchip
U7
1
NUD3124LT1G
NUD3124
On Semi
Q1
1
BCM857BS-7-F
BCM857BS
Diodes Inc
Q2
1
DMG2305UX-7
DMG2305UX
Diodes Inc
Q3
1
2222
RPi_GPIO
Adafruit
J1
1
PJ-036AH-SMT
Barrel_Jack_Switch
CUI
J2
3
CONN_01X02
P1, P2, P3
1
CONN_01X03
P6
1
CMI-9655S-SMT
Buzzer
CUI
BZ1
1
B3U-1000P
Write
Omron
SW1
3
NUP2105LT1G
On Semi
D1, D2, D3
1
DF206ST-G
D_Bridge_+-AA
Comchip
D4
6
MMZ1608B102CTD25
1k
TDK
FB1, FB2, FB3, FB4, FB5, FB6
8
CC0603KRX7R9BB104
0.1uF
Yageo
C1, C3, C4, C6, C7, C9, C10, C11
3
CC0603KRX7R9BB103
10nF
Murata Electronics
C2, C5, C8
1
PCR1D331MCL1GS
330uF
Nichicon
C12
Show 10 more
QtyPartRefs
2
TMK212BBJ226MG-TT
22uF
Taiyo Yuden
C13, C17
1
VJ0603Y332JXQPW1BC
3.3nF
Vishay
C14
2
CC0805KKX7R7BB225
2.2uF
Yageo
C15, C16
2
ERJ-3EKF4701V
4.7k
Panasonic
R1, R5
2
ERJ-3EKF3901V
3.9k
Panasonic
R2, R3
1
ERJ-3EKF1001V
1k
Panasonic
R4
1
ERJ-3EKF4702V
47k
Panasonic
R6
1
ERJ-3EKF1002V
10k
Panasonic
R7
1
ERJ-3EKF4422V
44.2k
Panasonic
R8
1
RC0603FR-07232KL
232k
Yageo
R9

RPi pHat-Thermocouple design files

The KiCad project lives in the mikelawrence/RPi-pHat-Thermocouple repository on GitHub; these links point at the commit this page was built from.

RPi pHat-Thermocouple: common questions

How big is the RPi pHat-Thermocouple PCB?

The RPi pHat-Thermocouple measures 65 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RPi pHat-Thermocouple?

54 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RPi pHat-Thermocouple design files?

From the mikelawrence/RPi-pHat-Thermocouple repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the RPi pHat-Thermocouple design in my own project?

Yes, under the terms of its MIT license, which mikelawrence chose for the repository.
