Vm102-inputs PCB layout, top view — open source board by mirdej
Simulate this board

About the Vm102-inputs PCB

Vm102-inputs is an open source PCB design by mirdej, published on GitHub. It is a 2-layer board measuring 28 × 53 mm, with 15 components from 6 distinct parts.

By type, the board carries 10 connectors, 2 switches, 2 diodes and 1 capacitor.

It belongs with the audio designs in this gallery.

From the project

Multichannel modular analog PAL video mixer based on the SYNKIE project

Multichannel modular analog PAL video mixer based on the SYNKIE project

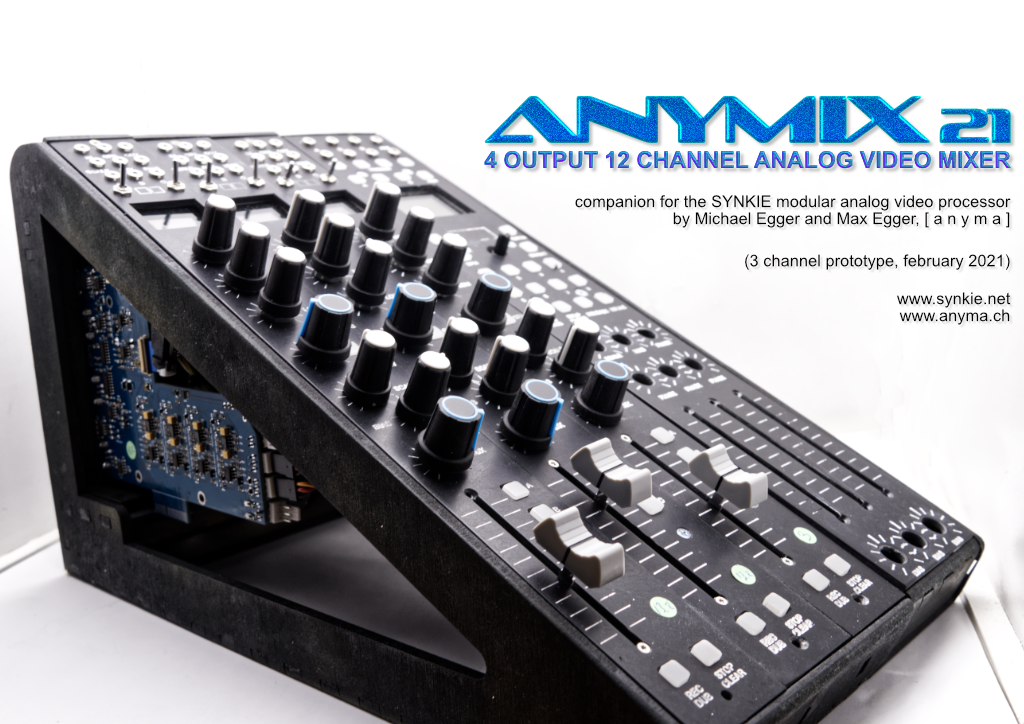

The Anymix21 is a 12 channel analog video mixer based on the paradigm of classic audio mixing desks.

Each channel is a complete SYNKIE by itself, sort of. It can handle anything from DC to around 10Mhz, this means you can mix CV signals with audio with PAL composite video signals. Contrary to an audio mixer, inputs are DC coupled, with 0v being black and 0.7V white level. Negative levels are permitted but will be clipped at the final output stage.

Vm102-inputs, from the project README
From the project README

Vm102-inputs bill of materials (BOM)

15 components, 6 distinct parts.

QtyPartRefs
8
Conn
J101, J102, J103, J104, J105, J109, J110, J111
1
Conn_01x24_Shielded
J106
1
Conn
J107
2
SW_SPDT
SW101, SW102
2
SK6812MINI
D101, D102
1
C
C101

Vm102-inputs design files

The KiCad project lives in the mirdej/vmix repository on GitHub; these links point at the commit this page was built from.

Vm102-inputs: common questions

How big is the Vm102-inputs PCB?

The Vm102-inputs measures 28 × 53 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Vm102-inputs?

15 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Vm102-inputs design files?

From the mirdej/vmix repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Vm102-inputs design in my own project?

The repository has no license, so all rights stay with mirdej. Use it as a reference, and ask the author before reusing the design.
