Media Controller

mkhairyx·Media_Controller·Source/KiCad/Media_Controller/Media_Controller.kicad_pcb

Media Controller PCB layout, top view — open source ESP32 board by mkhairyx

About the Media Controller PCB

Media Controller is an open source ESP32 PCB design by mkhairyx, published on GitHub. It is a 2-layer board measuring 32 × 130 mm, with 34 components from 23 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the TSOP1838, MCP73831T-2ACI/OT and MIC5219-3.3YM5. By type, the board carries 11 resistors, 7 capacitors, 5 connectors, 4 ICs, 2 switches and 2 LEDs.

It belongs with the displays & leds designs in this gallery.

From the project

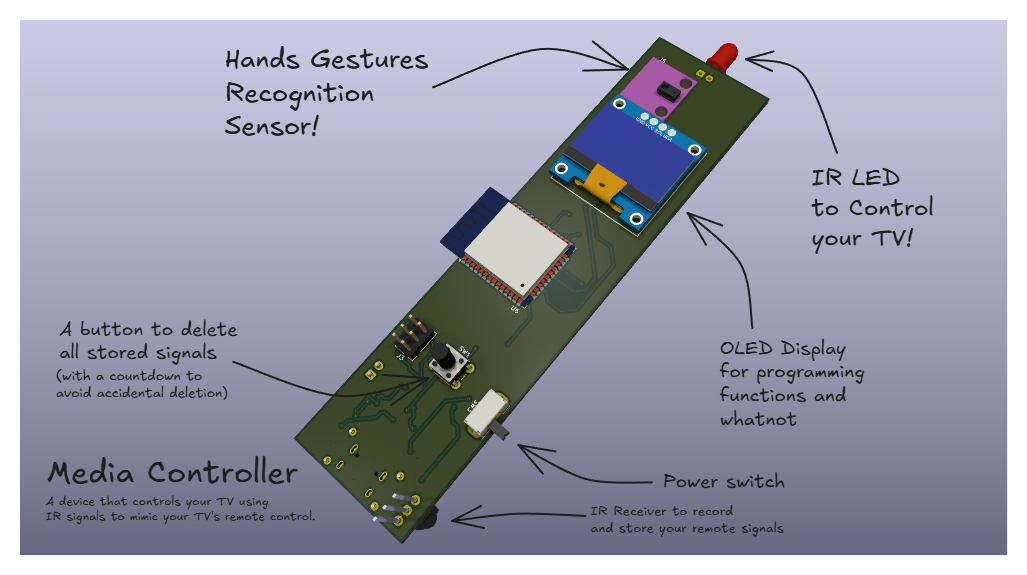

A device that controls your TV using IR signals to mimic your TV's remote control. It detects a gesture and then sends the signal that was coded for that gesture. I made it so I can control different media while eating (so I don't have to touch anything with my dirty hands)

Media Controller, from the project README
From the project README

Main components on the Media Controller

TSOP1838MCP73831T-2ACI/OTMIC5219-3.3YM5

Media Controller bill of materials (BOM)

34 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TSOP1838
U1
1
MCP73831T-2ACI/OT
MCP73831T-2ACI_OT
U2
1
MIC5219-3.3YM5
U4
1
~
U6
1
AO3401
Q3
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
S2B-PH-SM4-TB
JST
J2
1
polarity_ctrl
J3
1
OLED
J4
1
Gesture
J5
1
Del
SW1
1
K3-1296S-E1_C128955
SW3
2
SZYY0603Y
CHG1, PWR1
1
MBR120LSF
D1
1
IR
D2
4
4.7UF
4.7uF
C1, C2, C3, C6
1
2.2UF
2.2uF
C4
2
100NF
100nF
C5, C7
2
5.1K
5.1k
R1, R2
3
10K
R3, R6, R10
Show 3 more
QtyPartRefs
3
2K
R4, R5, R11
1
100
R7
2
100K
R8, R9

Media Controller design files

The KiCad project lives in the mkhairyx/Media_Controller repository on GitHub; these links point at the commit this page was built from.

Media Controller: common questions

What microcontroller does the Media Controller use?

The Media Controller is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Media Controller PCB?

The Media Controller measures 32 × 130 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Media Controller?

34 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Media Controller design files?

From the mkhairyx/Media_Controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Media Controller design in my own project?

The repository has no license, so all rights stay with mkhairyx. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Media Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
