About the ALTIMET02 PCB

ALTIMET02 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 40.1 × 19.8 mm, with 11 components from 9 distinct parts.

Other key parts include the MS5611-01BA. By type, the board carries 3 connectors, 2 jumpers, 2 capacitors, 2 resistors, 1 IC and 1 diode.

It belongs with the sensors designs in this gallery.

From the project

High-accuracy barometric pressure and temperature sensing module with MS561101BA03.

The MLAB ALTIMET02 is a high-performance pressure and temperature sensing module, based on the MS561101BA03 pressure sensor. This module is designed for use in a variety of applications, including meteorology, navigation, climate monitoring, and other scientific and industrial applications.

The key component of the ALTIMET02 module is TE Connectivity MS561101BA03 sensor. This sensor is a highly accurate and low-power barometric sensor with a resolution of up to 10 cm. The sensor provides a 24-bit digital output via the I2C or SPI interfaces, allowing for easy integration with various…

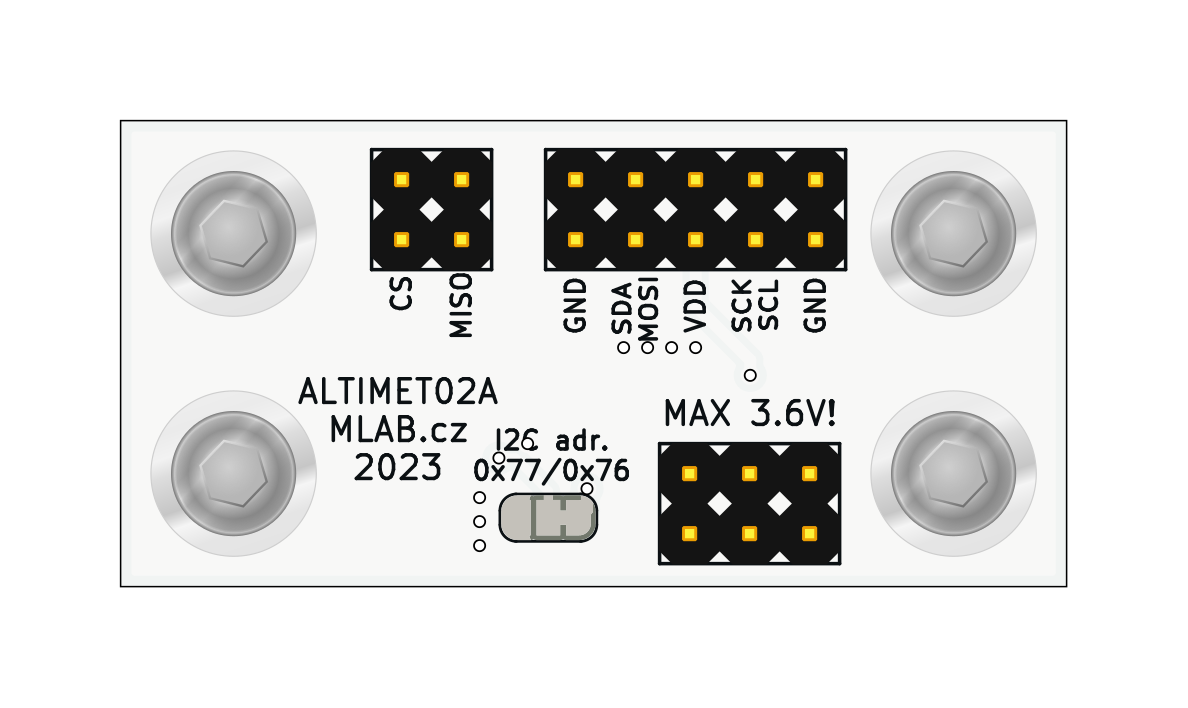

ALTIMET02, from the project README
From the project README

Main components on the ALTIMET02

MS5611-01BA

ALTIMET02 bill of materials (BOM)

11 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MS5611-01BA
U1
1
HEADER_2X02_PARALLEL
HEADER_2x02_PARALLEL
J1
1
HEADER_2X03_PARALLEL
HEADER_2x03_PARALLEL
J2
1
HEADER_2X05_PARALLEL
HEADER_2x05_PARALLEL
J3
2
SolderJumper_3_Bridged12
JP1, JP3
1
BZT52H-C3V6,115
D1
1
10UF
10uF
C1
1
100NF
100nF
C2
2
5k1
R1, R2

ALTIMET02 design files

The KiCad project lives in the mlab-modules/ALTIMET02 repository on GitHub; these links point at the commit this page was built from.

ALTIMET02: common questions

How big is the ALTIMET02 PCB?

The ALTIMET02 measures 40.1 × 19.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ALTIMET02?

11 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ALTIMET02 design files?

From the mlab-modules/ALTIMET02 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ALTIMET02 design in my own project?

Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
