About the RP2040v01 PCB

RP2040v01 is an open source RP2040/RP2350 PCB design by mlab-modules, published on GitHub. It is a 2-layer board measuring 50.3 × 50.3 mm, with 41 components from 24 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the NCP1117-3.3, USBLC6-2SC6 and W25Q64JVSSIQ. By type, the board carries 13 capacitors, 11 resistors, 7 connectors, 4 ICs, 2 switches and 2 diodes.

From the project

MCU board with RP2040 dual-core microcontroller.

The MLAB module RP2040v01 featuring the RP2040 processor is a powerful and flexible development board designed for a wide range of applications. The RP2040, a microcontroller from the Raspberry Pi Foundation, offers dual Arm Cortex-M0+ cores and extensive peripheral support.

- Processor: Dual-core Arm Cortex-M0+ RP2040. - Buttons: Boot and Reset buttons for easy programming and reset. - GPIO: Processor pins are exposed on doubleheader pins for flexible connectivity, as is usual in MLAB modules. - LED: An LED connected via a transistor on pin 25 for status indication. - USB: USB-C connector…

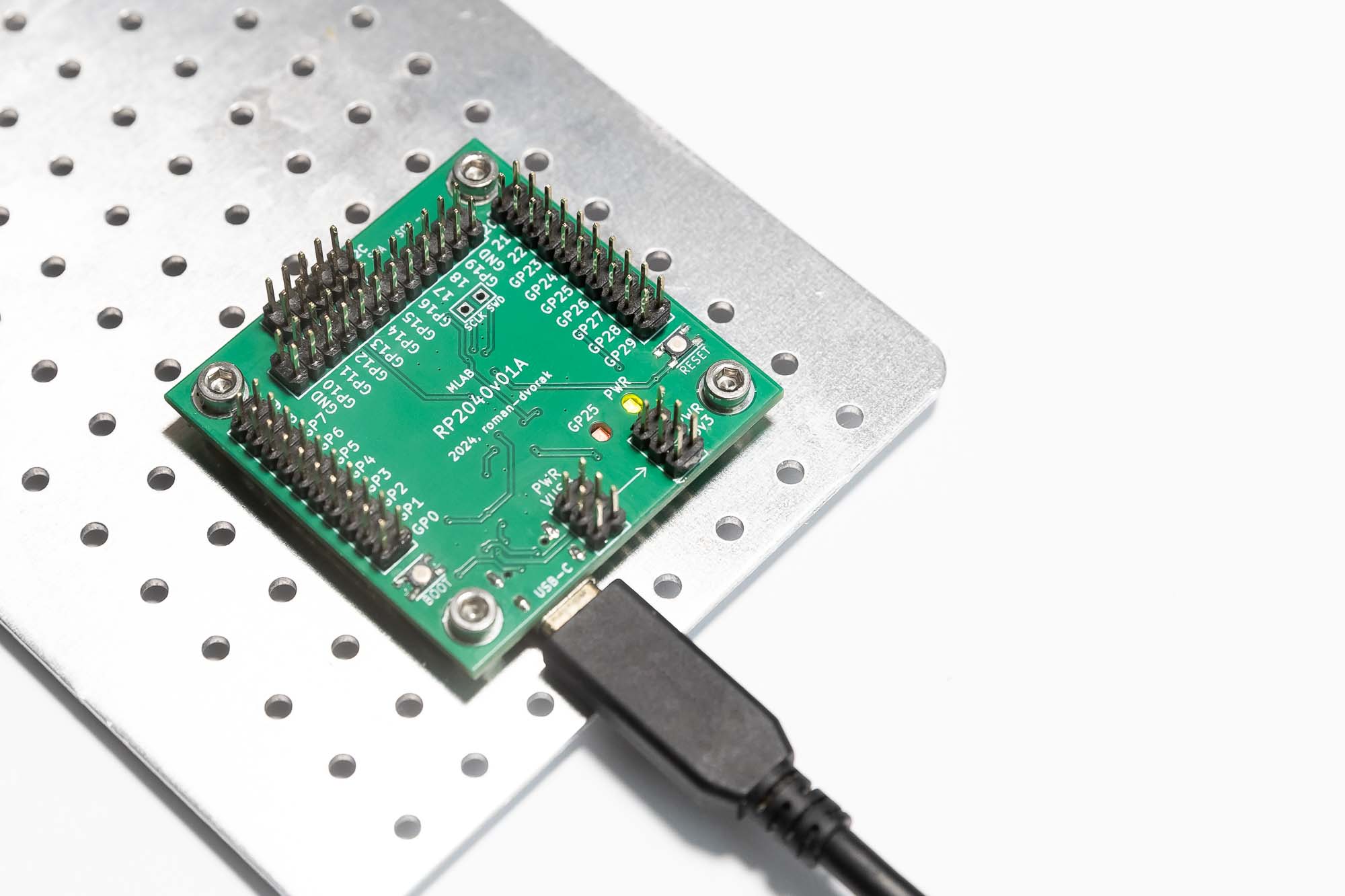

RP2040v01, from the project README — From the project README

Main components on the RP2040v01

NCP1117-3.3 USBLC6-2SC6 W25Q64JVSSIQ RP2040

RP2040v01 bill of materials (BOM)

41 components, 24 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	NCP1117-3.3	SOT-223-3_TabPin2	U1
1	USBLC6-2SC6	SOT-23-6	U2
1	W25Q64JVSSIQ	SOIC-8_5.23x5.23mm_P1.27mm	U3
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U4
1	BC817-25	SOT-23	Q1
1	LFXTAL082069	Crystal_SMD_SeikoEpson_FA238V-4Pin_3.2x2.5mm	Y1
2	HEADER_1x03	Straight_2x03	J1, J3
1	USBC_USB4105-GF-A	USBC GCT_USB4105-GF-A	J2
2	HEADER_1x10	Straight_2x10	J5, J6
1	HEADER_1X10 HEADER_1x10	Straight_2x12	J7
1	HEADER_2X05 HEADER_2x05	Straight_2x05	J8
2	434133025816	SW_Push_1P1T_NO_Vertical_Wuerth_434133025816	SW1, SW2
1	Red	LED_1206_KPTR	D1
1	Green	LED_1206_KPTR	D2
7	100n	C_0805_2012Metric	C1, C4, C5, C6, C9, C10, C11
2	10u	C_0805_2012Metric	C2, C3
2	27p	C_0805_2012Metric	C7, C8
2	1u	C_0805_2012Metric	C12, C13
2	5k1	R_0805_2012Metric	R1, R2
3	1k	R_0805_2012Metric	R3, R5, R8

Show 4 more

Qty	Part	Footprint	Refs
1	DNF	R_0805_2012Metric	R4
2	27R4	R_0805_2012Metric	R6, R7
2	200R	R_0805_2012Metric	R9, R10
1	390R	R_0805_2012Metric	R11

RP2040v01 design files

The KiCad project lives in the mlab-modules/RP2040v01 repository on GitHub; these links point at the commit this page was built from.

Layouthw/sch_pcb/RP2040v01.kicad_pcb
Schematichw/sch_pcb/RP2040v01.kicad_sch
BOMhw/cam_profi/assembly/RP2040v01-bom.csv

RP2040v01: common questions

What microcontroller does the RP2040v01 use?

The RP2040v01 is built around the RP2040, from the RP2040/RP2350 family.

How big is the RP2040v01 PCB?

The RP2040v01 measures 50.3 × 50.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RP2040v01?

41 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RP2040v01 design files?

From the mlab-modules/RP2040v01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RP2040v01 design in my own project?

The repository has no license, so all rights stay with mlab-modules. Use it as a reference, and ask the author before reusing the design.
