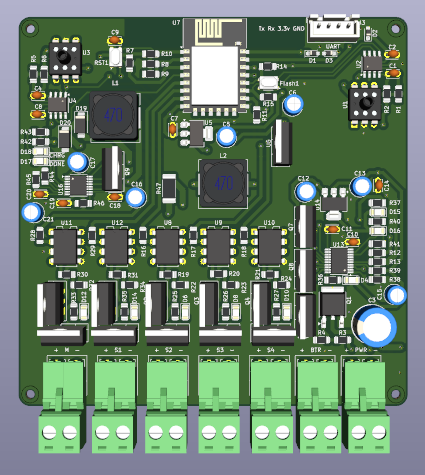

Pressure measuring and control-Board is an open source ESP8266 PCB design by Mohamed-U3, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 125 components from 45 distinct parts.
Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the MPS-2108, HX710(A/B), AMS1117-3.3, LM7805_TO220 and TLP250. By type, the board carries 47 resistors, 21 capacitors, 20 diodes, 16 ICs, 9 transistors and 8 connectors.
It belongs with the power & battery, sensors and test & measurement designs in this gallery.
From the project
This repository contains KiCad 9.0.2 schematics for a pressure‑control system built around an ESP‑12E module, dual precision pressure measurement channels, high‑side battery/adapter power path control, and isolated MOSFET drivers for solenoids and a motor. The design includes an onboard CN3703 Li‑ion charger, AMS1117‑3.3/LM7805 regulators, TLP250 g
A modular ESP‑12E (ESP8266) hardware design for pressure sensing, load driving, and safe power management with battery charging and automatic source switchover.
This repository contains KiCad 9.0.2 schematics for a pressure‑control system built around an ESP‑12E module, dual precision pressure measurement channels, high‑side battery/adapter power path control, and isolated MOSFET drivers for solenoids and a motor. The design includes an onboard CN3703 Li‑ion charger, AMS1117‑3.3/LM7805 regulators, TLP250 gate drivers, and IRF540N power MOSFETs with Schottky flyback protection, organized…
Main components on the Pressure measuring and control-Board
Pressure measuring and control-Board bill of materials (BOM)
125 components, 45 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | MPS-2108 | DIP-6_W10.16mm | U1, U3 |
| 2 | HX710(A/B) | SOP-8_3.9x4.9mm_P1.27mm | U2, U4 |
| 2 | AMS1117-3.3 | SOT-223-3_TabPin2 | U5, U14 |
| 2 | LM7805_TO220 | TO-220-3_Vertical | U6, U15 |
| 1 | ESP-12E | ESP-12E | U7 |
| 5 | TLP250 | DIP-8_W7.62mm | U8, U9, U10, U11, U12 |
| 1 | LTC2952 | ETSSOP-20-1EP_4.4x6.5mm_P0.65mm_EP3x4.2mm | U13 |
| 1 | CN3703 | TSSOP-16_4.4x5mm_P0.65mm | U16 |
| 1 | RU3560L | TO-252-2 | Q1 |
| 5 | IRF540N | TO-220-3_Vertical | Q2, Q3, Q4, Q5, Q6 |
| 3 | 2SJ174 | TO-220-3_Vertical | Q7, Q8, Q9 |
| 1 | UART | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J3 |
| 1 | 12v PWR | TerminalBlock_RND_205-00276_1x02_P5.00mm_Vertical | J4 |
| 1 | Battery | TerminalBlock_RND_205-00276_1x02_P5.00mm_Vertical | J5 |
| 1 | Sol_2 | TerminalBlock_RND_205-00276_1x02_P5.00mm_Vertical | J6 |
| 1 | Sol_3 | TerminalBlock_RND_205-00276_1x02_P5.00mm_Vertical | J7 |
| 1 | Sol_4 | TerminalBlock_RND_205-00276_1x02_P5.00mm_Vertical | J8 |
| 1 | Motor | TerminalBlock_RND_205-00276_1x02_P5.00mm_Vertical | J9 |
| 1 | Sol_1 | TerminalBlock_RND_205-00276_1x02_P5.00mm_Vertical | J10 |
| 2 | SW_Push | SW_SKRPACE010 | Flash1, RST1 |
Show 25 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | CESD5V0D3 | D_SOD-323_HandSoldering | D1, D2, D3 |
| 10 | LED | LED_1206_3216Metric | D4, D6, D8, D10, D12, D14, D15, D16 +2 |
| 5 | MBR745 | TO-220-2_Vertical | D5, D7, D9, D11, D13 |
| 2 | SS36 | D_SMA | D19, D20 |
| 2 | 22uH | L_12x12mm_H4.5mm | L1, L2 |
| 6 | 100nF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C1, C2, C4, C8, C9, C18 |
| 1 | 470uF/16V | CP_Radial_D10.0mm_P3.80mm | C3 |
| 8 | 10uF | C_Radial_D5.0mm_H5.0mm_P2.00mm | C5, C6, C12, C13, C15, C16, C17, C21 |
| 2 | 100uF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C7, C14 |
| 1 | 22nF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C10 |
| 1 | 68nF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C11 |
| 1 | 220nF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C19 |
| 1 | 470pF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C20 |
| 4 | 100 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R5, R6 |
| 1 | 47 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R3 |
| 1 | 4k7 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R4 |
| 8 | 10k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R7, R10, R11, R14, R15, R37, R44, R45 |
| 3 | 100k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R8, R13, R38 |
| 1 | 220k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R9 |
| 1 | 1.3M | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R12 |
| 20 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R16, R17, R18, R22, R23, R24, R25, R26 +12 |
| 5 | 15 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R19, R20, R21, R30, R31 |
| 1 | 511k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R39 |
| 1 | 120 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R46 |
| 1 | 0.1 | R_2512_6332Metric_Pad1.40x3.35mm_HandSolder | R47 |
