Smart uppatvind PCB layout, top view — open source ESP32 board by moucha19
Simulate this board

About the Smart uppatvind PCB

Smart uppatvind is an open source ESP32 PCB design by moucha19, published on GitHub under the CERN-OHL-W-2.0 license. It is a 4-layer board measuring 74 × 36 mm, with 66 components from 43 distinct parts.

Its main chip is the ESP32-C3-WROOM-02, from the ESP32 family. Other key parts include the L7980A, LDL1117S33R and M24C02-WMN. By type, the board carries 27 resistors, 15 capacitors, 5 transistors, 4 ICs, 4 connectors and 4 switches.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

Redesigned control board for IKEA Uppatvind with smart capabilities

Redesigned control board for IKEA Uppatvind with smart capabilities.

The IKEA's air purifiyer lineup is very affordable, and that's especially true for the cheapest Uppatvind. Although it is not the most powerful, it can still improve air quality in a smaller room, while not taking a lot of space. Regardless of the pricepoint, there is not a lot of commercial options, that are this compact.

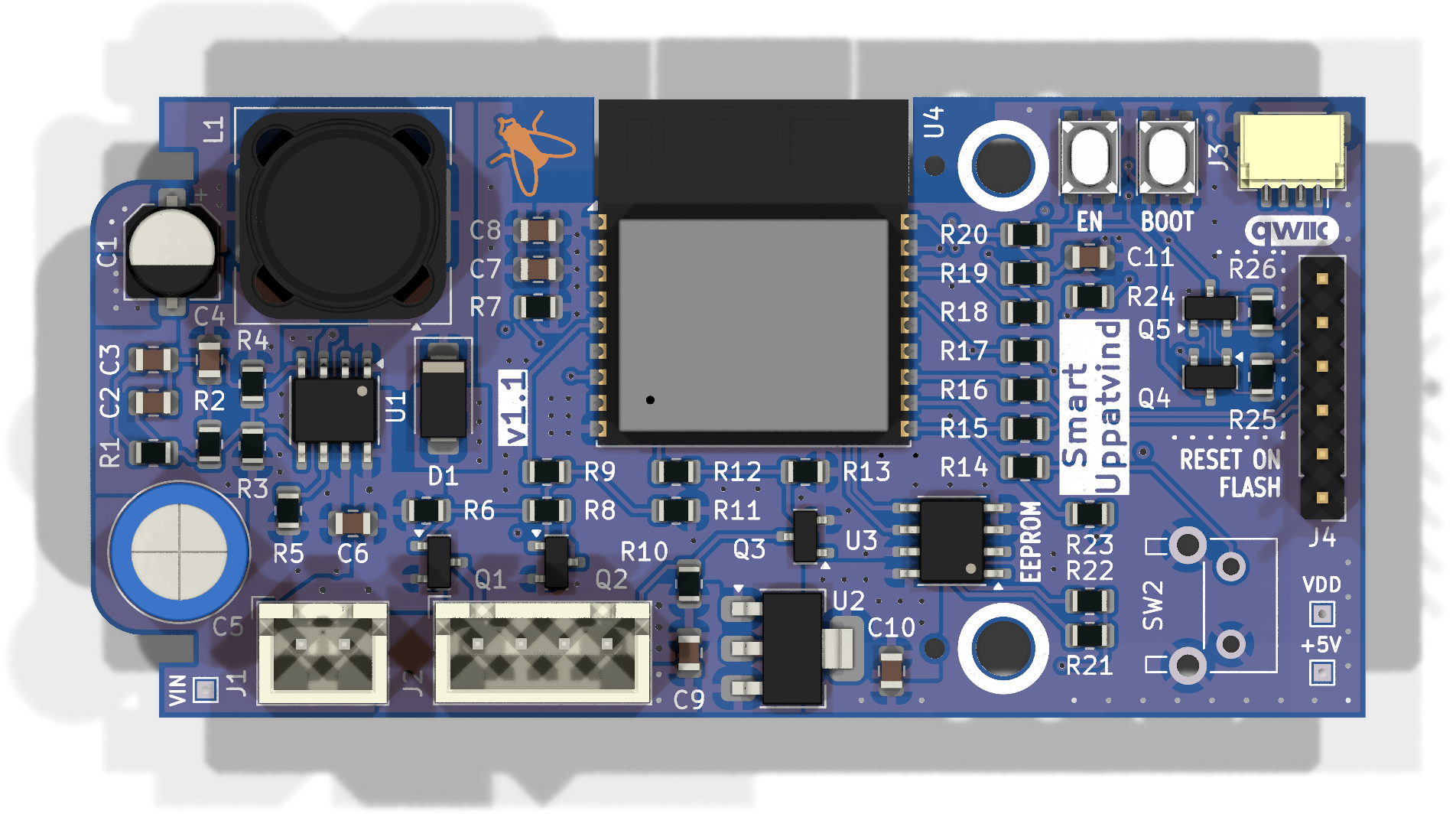

Smart uppatvind, from the project README
From the project README

Main components on the Smart uppatvind

L7980ALDL1117S33RM24C02-WMNESP32-C3-WROOM-02

Smart uppatvind bill of materials (BOM)

66 components, 43 distinct parts.

QtyPartRefs
1
L7980A
U1
1
LDL1117S33R
U2
1
M24C02-WMN
U3
1
ESP32-C3-WROOM-02
U4
1
IRLML9301
Q1
3
MMBT3904
Q2, Q4, Q5
1
Q_NMOS_GSD
Q3
1
PWR
J1
1
FAN
J2
1
QWIIC
J3
1
UART_PROG
J4
1
EN
SW1
1
FILTER
SW2
1
BOOT
SW3
1
MAIN
SW4
1
VIN
TP1
1
+5V
TP2
1
VDD
TP3
1
25V
D1
2
SK6805
D2, D3
Show 23 more
QtyPartRefs
1
47uH
L1
1
33uF
C1
1
820pF
C2
1
56nF
C3
1
15nF
C4
1
6.8uF
C5
1
220nF
C6
3
1uF
C7, C9, C11
1
10uF
C8
1
4.7uF
C10
4
0.1uF
C12, C13, C14, C15
1
1.3k
R1
2
150R
R2, R12
1
698R
R3
3
5.1k
R4, R25, R26
1
562k
R5
4
47k
R6, R8, R11, R13
3
100k
R7, R18, R19
1
1k
R9
3
10k
R10, R23, R27
2
0R
R14, R17
4
330R
R15, R16, R20, R24
2
2.2k
R21, R22

Smart uppatvind design files

The KiCad project lives in the moucha19/smart-uppatvind repository on GitHub; these links point at the commit this page was built from.

Smart uppatvind: common questions

What microcontroller does the Smart uppatvind use?

The Smart uppatvind is built around the ESP32-C3-WROOM-02, from the ESP32 family.

How big is the Smart uppatvind PCB?

The Smart uppatvind measures 74 × 36 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Smart uppatvind?

66 components, from 43 distinct parts. The full bill of materials is listed on this page.

Where can I download the Smart uppatvind design files?

From the moucha19/smart-uppatvind repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Smart uppatvind design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which moucha19 chose for the repository.

Can I test firmware for the Smart uppatvind without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
