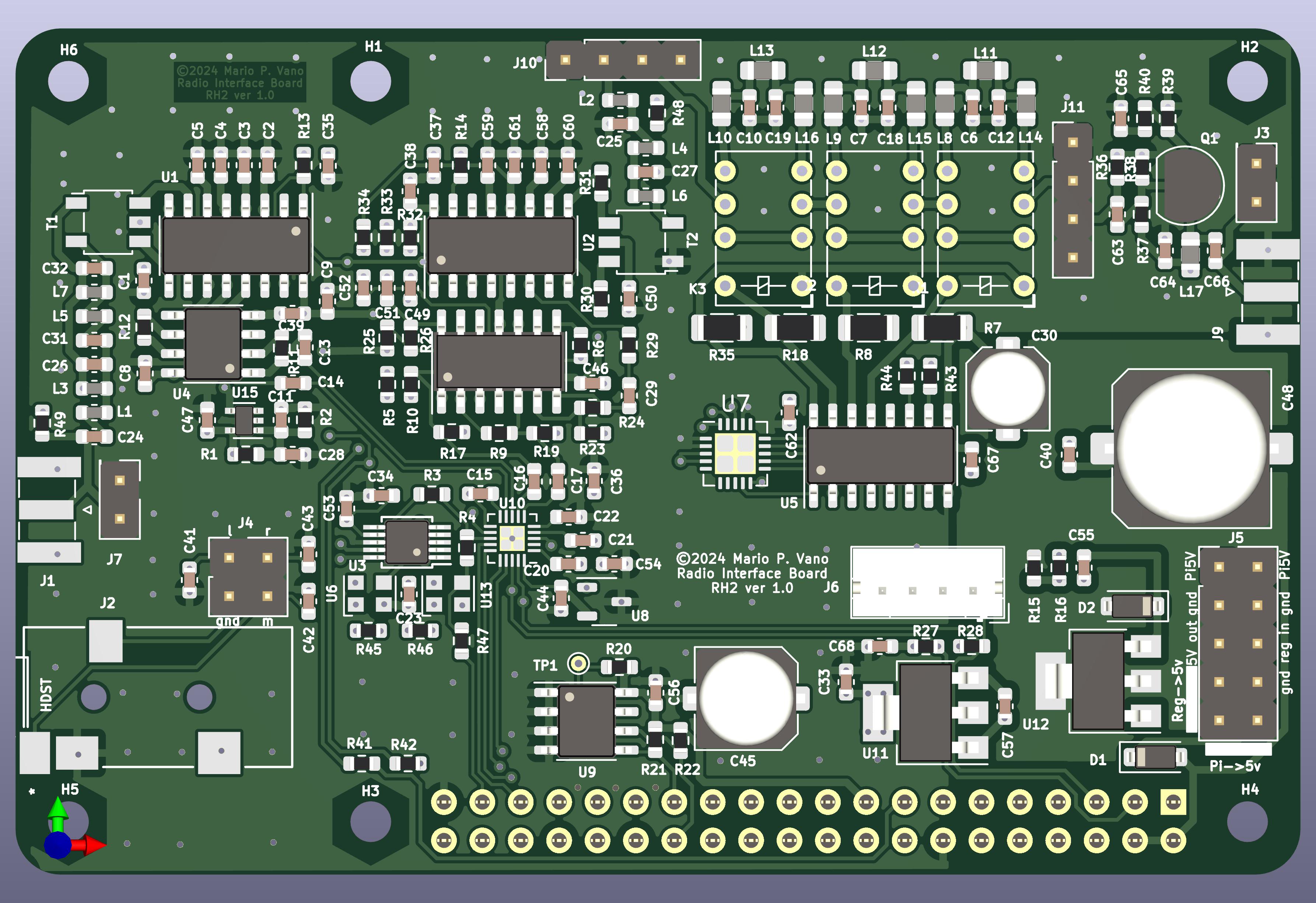

Txfilters PCB layout, top view — open source board by mpvano

About the Txfilters PCB

Txfilters is an open source PCB design by mpvano, published on GitHub under the MIT license. It is a 4-layer board measuring 85 × 56 mm, with 88 components from 40 distinct parts.

Other key parts include the ADS1115IDGSR, MCP23008T-E/ML and ULN2003A. By type, the board carries 46 capacitors, 17 inductors, 8 resistors, 6 connectors, 6 relays and 3 ICs.

It belongs with the audio and rf & radio designs in this gallery.

From the project

Software and Documentation for the Radiohat2 Project

This is an early version of the folder full of files that need to be installed on a raspberry pi to allow experimentation with the RadioHat version 2.0 hardware.

When downloading and installing it, ensure that it is named "radiohat2" and that it is in your home directory, or some of the shell scripts it contains will not work properly. When downloaded as a .zip archive, it may result in a folder with the branch suffix "-main" that needs to be removed if you want to use the enclosed shell scripts.

Txfilters, from the project README
From the project README

Main components on the Txfilters

ADS1115IDGSRMCP23008T-E/MLULN2003A

Txfilters bill of materials (BOM)

88 components, 40 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ADS1115IDGSR
ADS1115IDGS
U1
1
MCP23008T-E/ML
MCP23008-xML
U2
1
ULN2003A
U3
1
GPIO
J1
1
Input
J2
1
Antenna
J3
1
Pwr
J4
1
RX
J5
1
/PA
J6
6
2-1462037
IM06
K1, K2, K3, K4, K5, K6
2
1N5711WS-7-F
1n5711wds
D1, D2
2
2.42uh
L1, L3
1
3.01uh
L2
2
1.38u
L4, L6
1
1.70u
L5
2
773n
L7, L9
1
990n
L8
2
444n
L10, L12
1
561n
L11
2
300n
L13, L15
Show 20 more
QtyPartRefs
1
380n
L14
2
T37-43 1:13
L16, L17
2
KGM31VCG2D471JU
470p
C1, C7
3
CL10B104JB8NNNC
100n
C2, C3, C8
2
KGM31VCG2D821JU
820p
C4, C5
1
EEE-FK1E330UR
33µ 25V
C6
2
KGM31BCG2D271JT
270p
C9, C12
2
KGM31VCG2D681JU
680p
C10, C11
4
KGM31BCG2D151JT
150p
C13, C16, C22, C23
4
KGM31BCG2D391JT
390p
C14, C15, C28, C29
4
KGM31BCG2D470JT
47p
C17, C20, C21, C24
2
KGM31BCG2D221JT
220p
C18, C19
12
0p
C25, C30, C31, C32, C33, C34, C36, C37 +4
2
Samsung Electro-Mechanics
10n
C26, C27
4
KGM31BCG2D330JT
33p
C35, C38, C39, C42
2
KGM31BCG2D100JT
10p
C43, C46
4
RMCF0603FT10K0
10k
R1, R2, R7, R8
1
RMCF0603FT1K00
1k
R3
1
RMCF0603FT9K09
9.0k
R4
2
RMCF0603FT51R0
51
R5, R6

Txfilters design files
