IndegoRover

MS71·IndegoRover·kicad/MainPCB/IndegoMower.kicad_pcb

IndegoRover PCB layout, top view — open source ESP32 board by MS71
Simulate this board

About the IndegoRover PCB

IndegoRover is an open source ESP32 PCB design by MS71, published on GitHub. It is a 2-layer board measuring 172 × 230 mm, with 28 components from 22 distinct parts.

Its main chip is the ESP32-S3-WROOM-2 (-1), from the ESP32 family. Other key parts include the 26SHC-B-1A, 24SHC-B-1A, L298P, RTK-1010 and MCP1700-3302E_SOT23. By type, the board carries 7 connectors, 6 ICs, 4 capacitors, 3 diodes, 3 inductors and 1 jumper.

It belongs with the power & battery and sensors designs in this gallery.

From the project

new MainBoard for Indego Lawn Mower

Schematic: https://github.com/MS71/IndegoRover/blob/main/kicad/IndegoMower/pdf/IndegoMower.pdf

Parts: ESP32 (S2/S3) Module (https://github.com/MS71/ROS2Mower/blob/master/hw/esp32module.pdf) ARV Mega 128 for low level IO, security and motor driver origonal Indego connectors (26SHC-B-1A => mouser) DC motor driver: 3 VNH2SP30 module (41V, 30A H Bridge) GPS receiver (ZED-F9P) (https://www.ardusimple.com/product/simplertk2blite/) 5 pin header for low cost, non RTK GPS receiver 10 Pin RPI Connector (5V, 3.3V, GND, I2C, UART) 10 Pin I2C Bus Connector 6 Pin I2C Bus Connector 5V Step Down Converter…

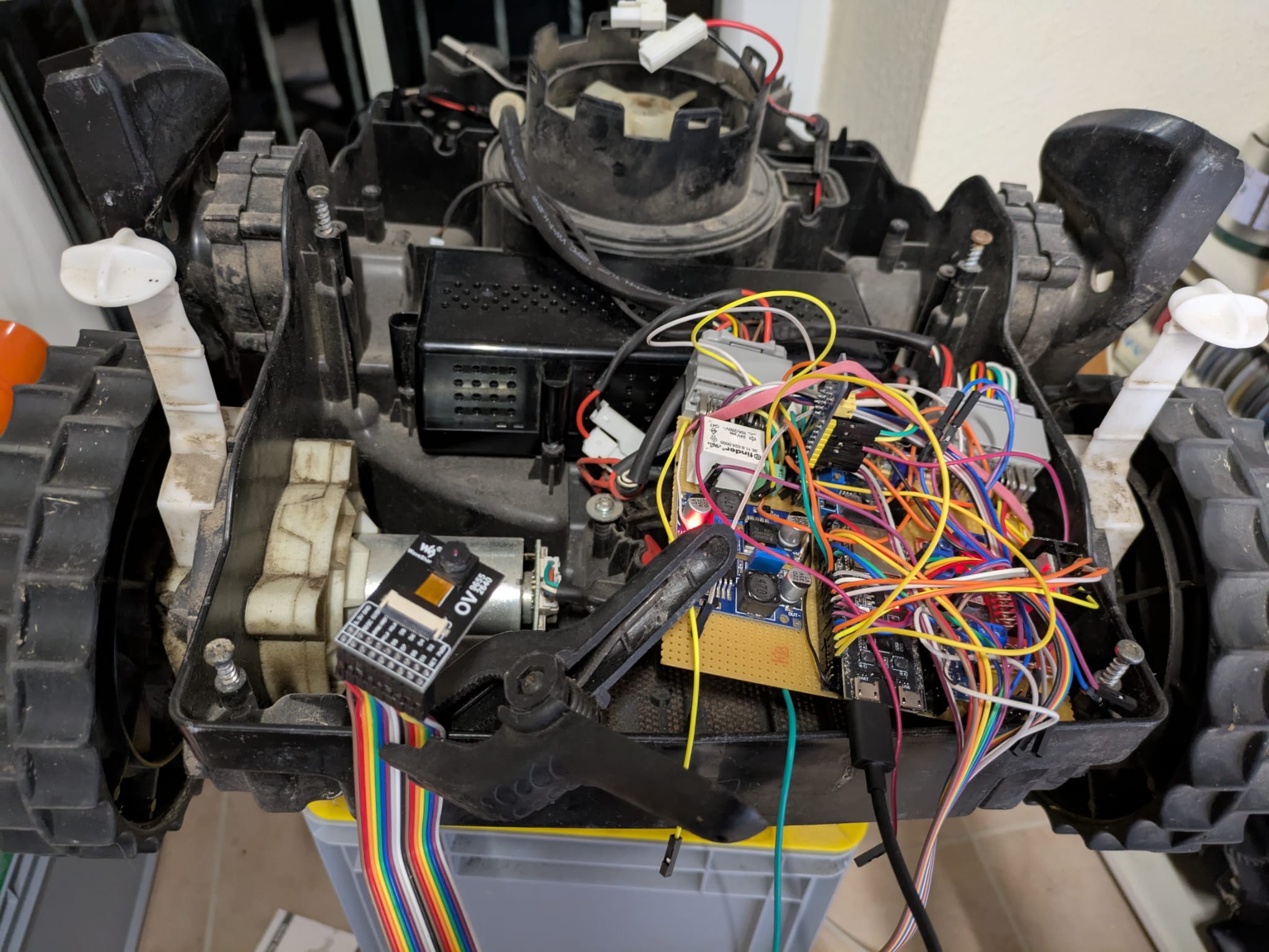

IndegoRover, from the project README
From the project README

Main components on the IndegoRover

IndegoRover bill of materials (BOM)

28 components, 22 distinct parts.

QtyPartRefs
1
26SHC-B-1A
U1
1
24SHC-B-1A
U2
1
ESP32-S3-WROOM-2 (-1)
U14
1
L298P
U18
1
RTK-1010
U19
1
MCP1700-3302E_SOT23
U20
1
RPi_GPIO
J1
1
AFC01-S24FCC-00
Conn_01x24_FFC_0.5mm_AFC01-S24FCC-00
JUSHUO
J2
1
USB_OTG
J5
1
BNO055
J6
1
OLED
J7
1
IPEX
J10
1
SMA
J11
1
4A
F_CHARGE1
2
6A
F_MAIN1, F_SEC1
1
SolderJumper_3_Open
JP25
1
~
J_MM1
3
P4SMAJ5.0CA
D5, D8, D20
1
1.2uH
L6
2
39nH
L7, L8
Show 2 more
QtyPartRefs
1
680uF / 63V
C49
3
100nF
C51, C52, C53

IndegoRover design files

The KiCad project lives in the MS71/IndegoRover repository on GitHub; these links point at the commit this page was built from.

IndegoRover: common questions

What microcontroller does the IndegoRover use?

The IndegoRover is built around the ESP32-S3-WROOM-2 (-1), from the ESP32 family.

How big is the IndegoRover PCB?

The IndegoRover measures 172 × 230 mm, has 2 copper layers and is 1.579 mm thick.

How many components are on the IndegoRover?

28 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the IndegoRover design files?

From the MS71/IndegoRover repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the IndegoRover design in my own project?

The repository has no license, so all rights stay with MS71. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the IndegoRover without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
