Rgb spot-10w

mylife-home·mylife-home-devices·rgb-spot-10w/v1/rgb-spot-10w.kicad_pcb

Rgb spot-10w PCB layout, top view — open source board by mylife-home

About the Rgb spot-10w PCB

Rgb spot-10w is an open source PCB design by mylife-home, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 45 × 45 mm, with 5 components from 4 distinct parts.

By type, the board carries 3 resistors, 1 connector and 1 diode.

From the project

MyLife Home devices

PCB pour remplacer le design IR existant: - qui tient dans le spot - soudé a la led RGB 10W - connecter les cables dessus - 2 spots outside + 1 inside existant (on peut prevoir au moins 5 pieces)

- Resistances: - Red: 10Ω 1W - Green, Blue: 5.1Ω 1W - TODO: - tester passage cable - dessouder led - design pour embarquer, avec si possible bornier (voir si on a assez de place dessous pour les pins, et dessus) sinon souder directement les cables dessus - Footprint https://forum.fritzing.org/t/power-led-10w-rgb/6441 - PCB 4.5 cm diametre - largeur entre pins : 2.1cm (carré) - +3 mm aux coins our…

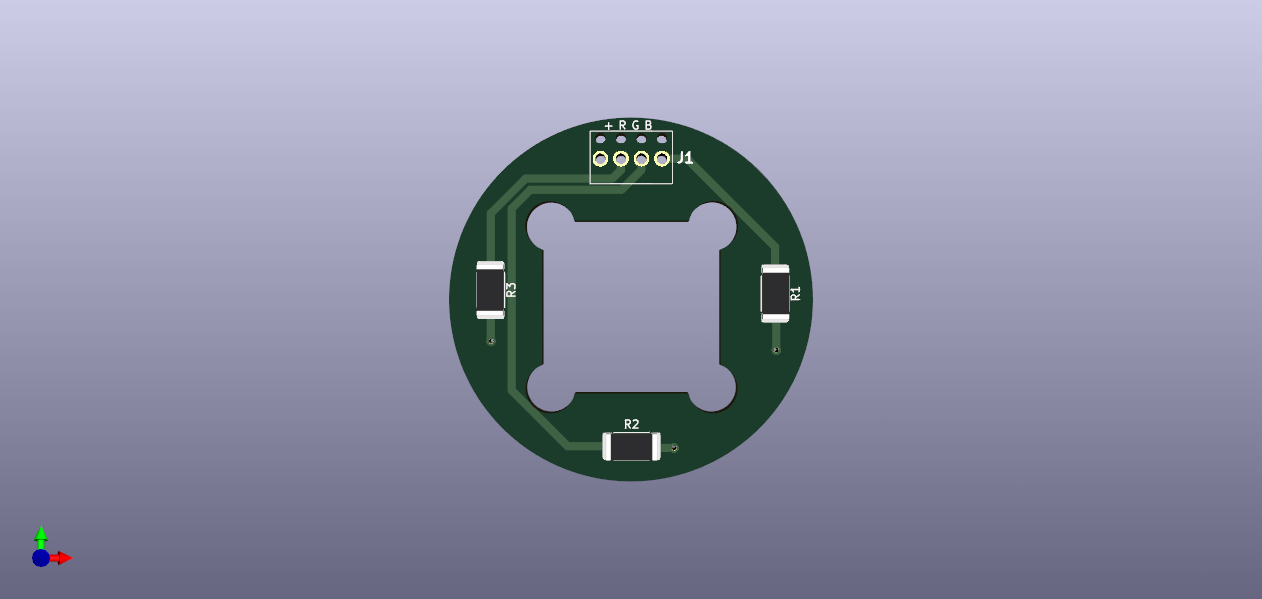

Rgb spot-10w, from the project README
From the project README

Rgb spot-10w bill of materials (BOM)

5 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SCREW_TERMINAL_01X04
Screw_Terminal_01x04
J1
1
LED_ARGB
D1
2
C514891
5.1Ω/1W
R1, R2
1
C137014
10Ω/1W
R3

Rgb spot-10w design files

The KiCad project lives in the mylife-home/mylife-home-devices repository on GitHub; these links point at the commit this page was built from.

Rgb spot-10w: common questions

How big is the Rgb spot-10w PCB?

The Rgb spot-10w measures 45 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rgb spot-10w?

5 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rgb spot-10w design files?

From the mylife-home/mylife-home-devices repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rgb spot-10w design in my own project?

Yes, under the terms of its GPL-3.0 license, which mylife-home chose for the repository.
