Rgb garden box

mylife-home·mylife-home-devices·rgb-garden-box/v1/rgb-garden-box.kicad_pcb

Rgb garden box PCB layout, top view — open source ESP32 board by mylife-home

About the Rgb garden box PCB

Rgb garden box is an open source ESP32 PCB design by mylife-home, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 149.3 × 102 mm, with 37 components from 16 distinct parts.

Its main chip is the ESP32-POE, from the ESP32 family. By type, the board carries 13 resistors, 8 transistors, 6 connectors, 4 diodes, 2 relays and 1 IC.

From the project

MyLife Home devices

- 4 spots 24V 0.6W IDTOLight Monte Carlo LO681004ABX - pinout : + Black commun - 2 spots 12V 10W - common + - étanche - ethernet - tient dans regard 19x19x19

- esp32 poe - petite alim pour ESP - grosse alim + relais pour spots - Mosfets: - IRLZ44N D2PAK - IRLZ44N TO220 https://fr.farnell.com/webapp/wcs/stores/servlet/ProductDisplay?catalogId=15001&productSeoURL=infineon&partNumber=8651418&storeId=10160 - résistance de 10k - 100k entre commande et gnd, évite que ça flotte - spot 12V 10W: - RGB spot 10W

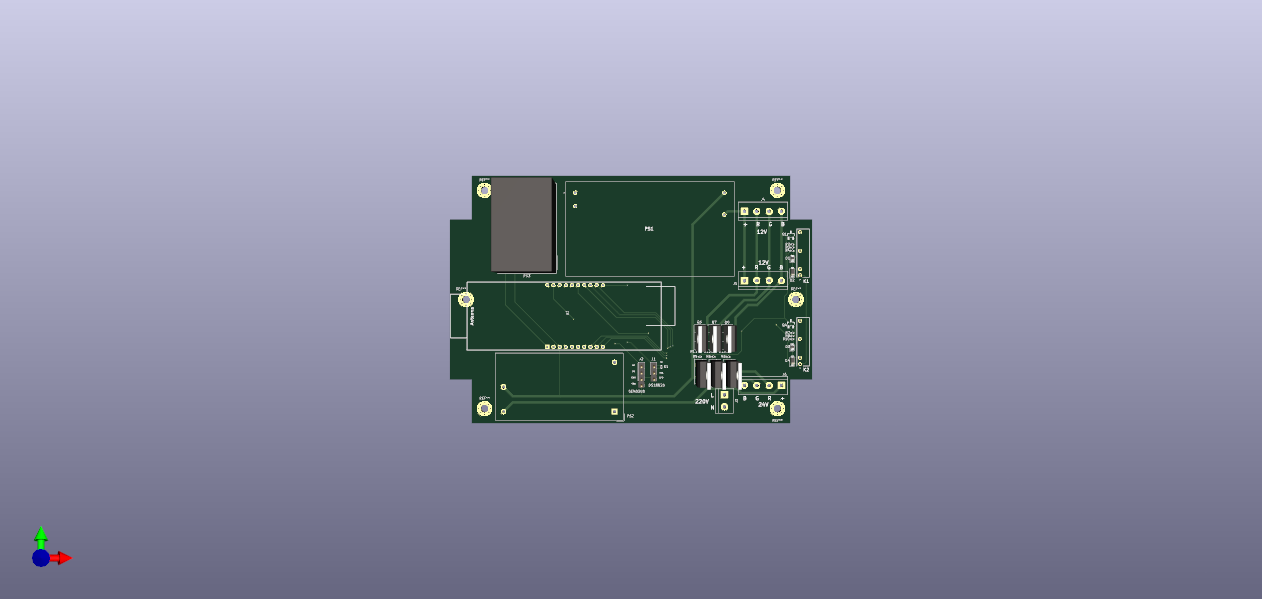

Rgb garden box, from the project README
From the project README

Main components on the Rgb garden box

ESP32-POE

Rgb garden box bill of materials (BOM)

37 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-POE
U1
2
2N3904
Q1, Q4
6
IRLZ44N
Q2, Q3, Q5, Q6, Q7, Q8
1
CONN_01X03_MALE
Conn_01x03_Male
J1
1
CONN_01X04_MALE
Conn_01x04_Male
J2
1
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
J3
3
SCREW_TERMINAL_01X04
Screw_Terminal_01x04
J4, J5, J6
2
G6DN-1A-L_DC5
K1, K2
1
Mean Well 12V 2.5A (30W)
PS1
1
RS PRO 24V 833mA (20W)
PS2
1
Alim RS PRO 5V 1A
PS3
2
LED
D1, D3
2
1N4148
D2, D4
1
4.7KΩ
R1
4
1KΩ
R2, R4, R7, R10
8
10KΩ
R3, R5, R6, R8, R9, R11, R12, R13

Rgb garden box design files

The KiCad project lives in the mylife-home/mylife-home-devices repository on GitHub; these links point at the commit this page was built from.

Rgb garden box: common questions

What microcontroller does the Rgb garden box use?

The Rgb garden box is built around the ESP32-POE, from the ESP32 family.

How big is the Rgb garden box PCB?

The Rgb garden box measures 149.3 × 102 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rgb garden box?

37 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rgb garden box design files?

From the mylife-home/mylife-home-devices repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rgb garden box design in my own project?

Yes, under the terms of its GPL-3.0 license, which mylife-home chose for the repository.

Can I test firmware for the Rgb garden box without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
