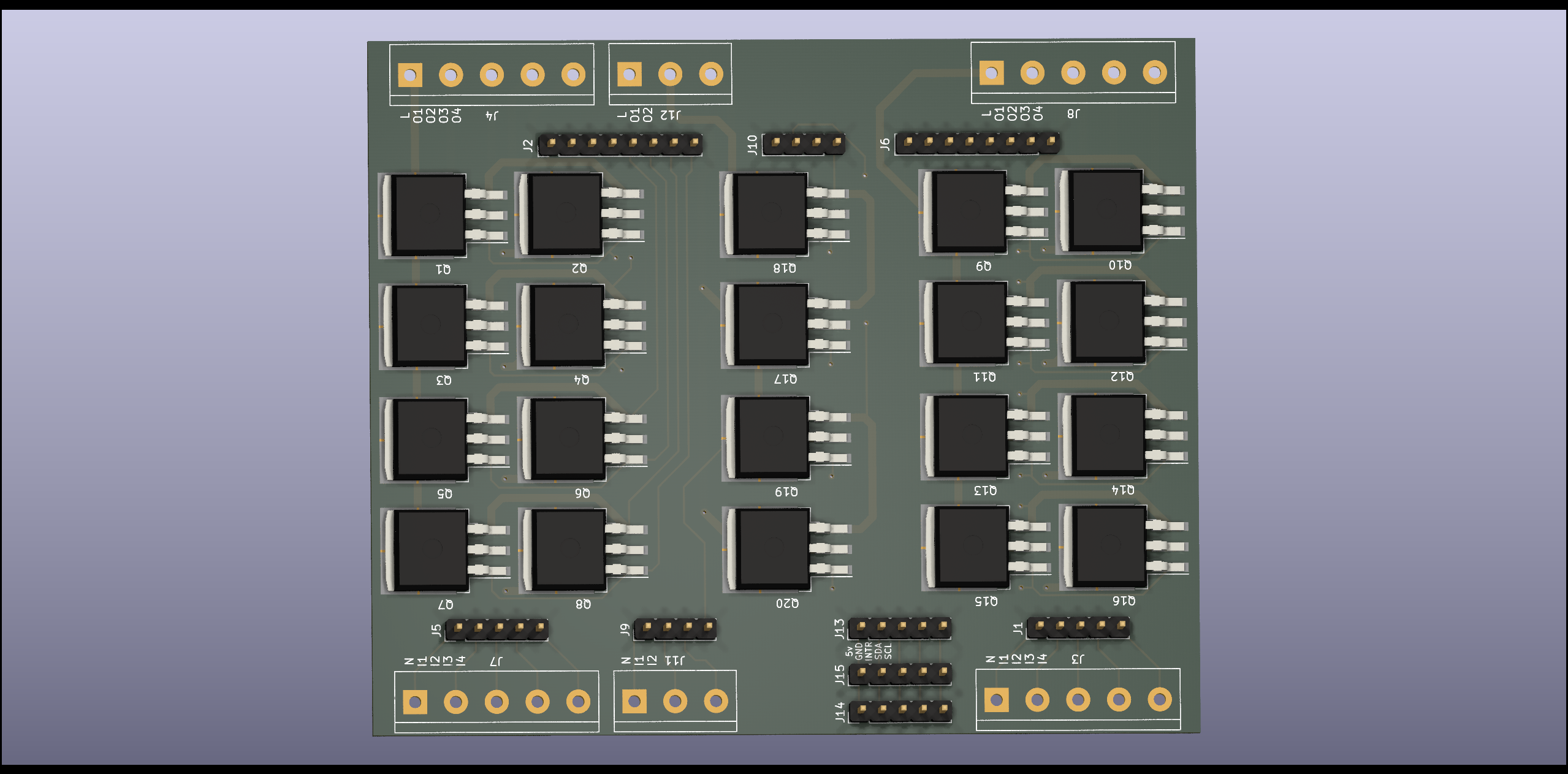

Prototype-2 PCB layout, top view — open source board by mylife-home

About the Prototype-2 PCB

Prototype-2 is an open source PCB design by mylife-home, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 87 × 68 mm, with 32 components from 15 distinct parts.

Other key parts include the 4N35 and H11AA1. By type, the board carries 15 resistors, 5 ICs, 4 connectors, 3 transistors, 3 diodes and 1 capacitor.

From the project

MyLife Home devices

- 20 IO au moins - mettre un Switch ou jumper pour relier les phases et neutres de 2 entrées sorties voisines (pour pouvoir relier ensemble ceux qui viennent du même disjoncteur)

- IO / disjoncteurs: - R1: 7 + 3 extension + escalier - RDC: 5 + porche - Dehors: terrasse (vers spa)

- Rpi pico: 2 modules with 10 I/O each with io port0 = Zc + power supply - Rpi pico + esp : jumper pour alim séparée => permet live debug usb + reboot ? - Borniers "détachables" ? - Noter sur le silkscreen a quoi correspondent les borniers/pin headers/jumpers - Grouper les IO 4 par 4 (1 phase et 1 neutre pour 4 IO)…

Prototype-2, from the project README
From the project README

Main components on the Prototype-2

4N35H11AA1

Prototype-2 bill of materials (BOM)

32 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
4N35
U2, U3
3
H11AA1
U4, U5, U6
3
IRF830
Q1, Q2, Q3
1
CONN_01X07_MALE
Conn_01x07_Male
J1
2
SCREW_TERMINAL_01X04
Screw_Terminal_01x04
J2, J3
1
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
J4
1
HLK-PM12
PS1
1
C169512
4* 1N5408
D1
1
10V/0.4W
D2
1
1N4007
D3
1
2.2UF/63V
2.2uF/63V
C1
2
330Ω
R1, R2
3
10KΩ
R3, R4, R5
2
22KΩ
R6, R7
8
C966118
33KΩ/0.5W
R8, R9, R10, R11, R12, R13, R14, R15
