Fairy lights
About the Fairy lights PCB

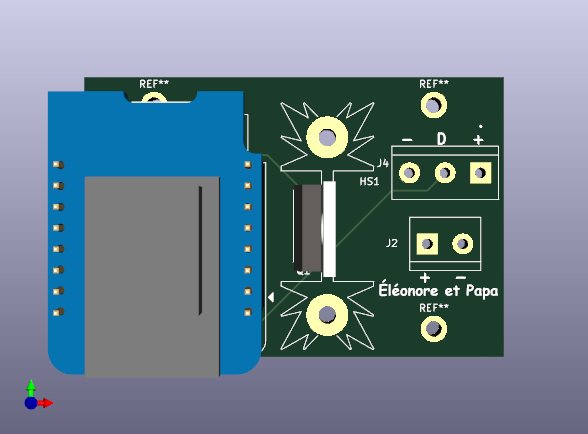

Fairy lights is an open source ESP8266 PCB design by mylife-home, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 60 × 40 mm, with 6 components from 6 distinct parts.
Its main chip is the WEMOS_D1_MINI, from the ESP8266 family. By type, the board carries 2 connectors, 1 IC, 1 transistor and 1 resistor.
It belongs with the iot & wireless designs in this gallery.
From the project
MyLife Home devices
- Avec Eléonore - Guirlande pour sapin - Intégré ESPHome
- Guirlande : - WS2812B - https://amzn.eu/d/6PvWFXF - ( https://www.adafruit.com/product/4917 ) - Contrôleur : - WeMos D1 mini, sur gpio3 pour DMA - config esphome dma -> GPIO3 - RX - Alimentation : - Puissance guirlande : Alim 5V 6A -> 60ma / led - ~alim 6A (69.5x39x24) : https://fr.rs-online.com/web/p/alimentations-a-decoupage/1358945~ - ~alim 8A (87x52x29.5) : https://fr.rs-online.com/web/p/alimentations-a-decoupage/1358955~ - alime externe 5V 8A : https://www.amazon.fr/dp/B088FBXTPS : + au milieu - à l'extérieur, 5.5mm - 2.5mm -…
Main components on the Fairy lights
Fairy lights bill of materials (BOM)
6 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WEMOS_D1_MINI WeMos_D1_mini | WEMOS_D1_mini_light | U1 |
| 1 | IRLZ44N | TO-220-3_Vertical | Q1 |
| 1 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | TerminalBlock_bornier-2_P5.08mm | J2 |
| 1 | SCREW_TERMINAL_01X03 Screw_Terminal_01x03 | TerminalBlock_bornier-3_P5.08mm | J4 |
| 1 | Heatsink | Heatsink_Fischer_SK104-STC-STIC_35x13mm_2xDrill2.5mm | HS1 |
| 1 | 10KΩ | R_Axial_DIN0207_L6.3mm_D2.5mm_P15.24mm_Horizontal | R1 |
Fairy lights design files
The KiCad project lives in the mylife-home/mylife-home-devices repository on GitHub; these links point at the commit this page was built from.
Fairy lights: common questions
What microcontroller does the Fairy lights use?
The Fairy lights is built around the WEMOS_D1_MINI, from the ESP8266 family.
How big is the Fairy lights PCB?
The Fairy lights measures 60 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Fairy lights?
6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Fairy lights design files?
From the mylife-home/mylife-home-devices repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Fairy lights design in my own project?
Yes, under the terms of its GPL-3.0 license, which mylife-home chose for the repository.
Can I test firmware for the Fairy lights without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
