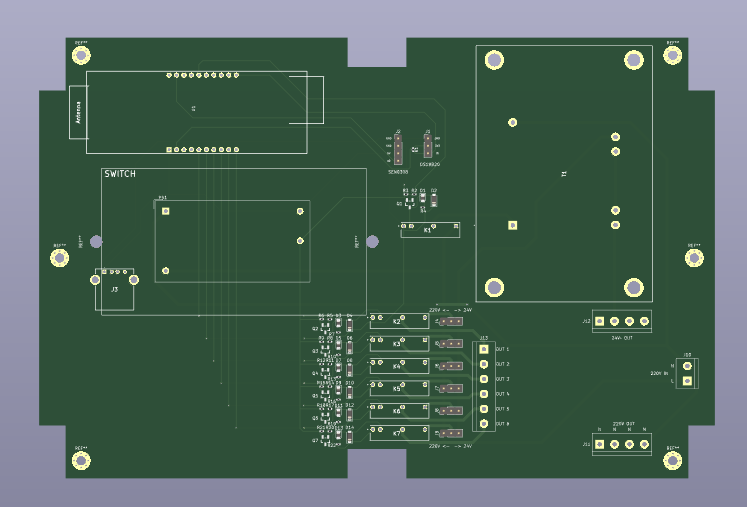

Prototype-1 PCB layout, top view — open source ESP32 board by mylife-home

About the Prototype-1 PCB

Prototype-1 is an open source ESP32 PCB design by mylife-home, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 230 × 150 mm, with 17 components from 15 distinct parts.

Its main chip is the ESP32-POE, from the ESP32 family. By type, the board carries 6 connectors, 4 resistors, 2 diodes, 1 IC, 1 transistor and 1 relay.

From the project

MyLife Home devices

- capteur températeur - capteur humidité sol - drivers électrovannes - driver lanterne/guirlande

- 1 place pour un switch - esp32 poe - convertisseur 12v -> 5v - 1 transfo 24v AC pour electrovannes (capable d'alimenter 3 ou 4 electrovannes), avec un relais - 6 sorties relais, switchable (par jumper) entre 220v et 24v - led en face de chaque relais (sortie + transfo 24v) - mettre un seul jumper pour choisir entre 220v et 24v - chaque relais a une seule sortie - mettre 6 screwterminals common 220v et 6 screwterminals common 24v. Cela permet de mettre qu'un seul cable common vers les…

Prototype-1, from the project README
From the project README

Main components on the Prototype-1

ESP32-POE

Prototype-1 bill of materials (BOM)

17 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-POE
U1
1
2N3904
Q1
1
USB_A
J1
1
CONN_01X03_MALE
Conn_01x03_Male
J2
1
CONN_01X04_MALE
Conn_01x04_Male
J3
3
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
J4, J5, J6
1
G6DN-1A-L_DC5
K1
1
RS PRO 5V 2A
PS1
1
TRANSFORMER_1P_2S
Transformer_1P_2S
T1
1
LED
D1
1
1N4148
D2
1
4.7KΩ
R1
1
1KΩ
R2
1
10KΩ
R3
1
330Ω
R4

Prototype-1 design files

The KiCad project lives in the mylife-home/mylife-home-devices repository on GitHub; these links point at the commit this page was built from.

Prototype-1: common questions

What microcontroller does the Prototype-1 use?

The Prototype-1 is built around the ESP32-POE, from the ESP32 family.

How big is the Prototype-1 PCB?

The Prototype-1 measures 230 × 150 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Prototype-1?

17 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Prototype-1 design files?

From the mylife-home/mylife-home-devices repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Prototype-1 design in my own project?

Yes, under the terms of its GPL-3.0 license, which mylife-home chose for the repository.

Can I test firmware for the Prototype-1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
