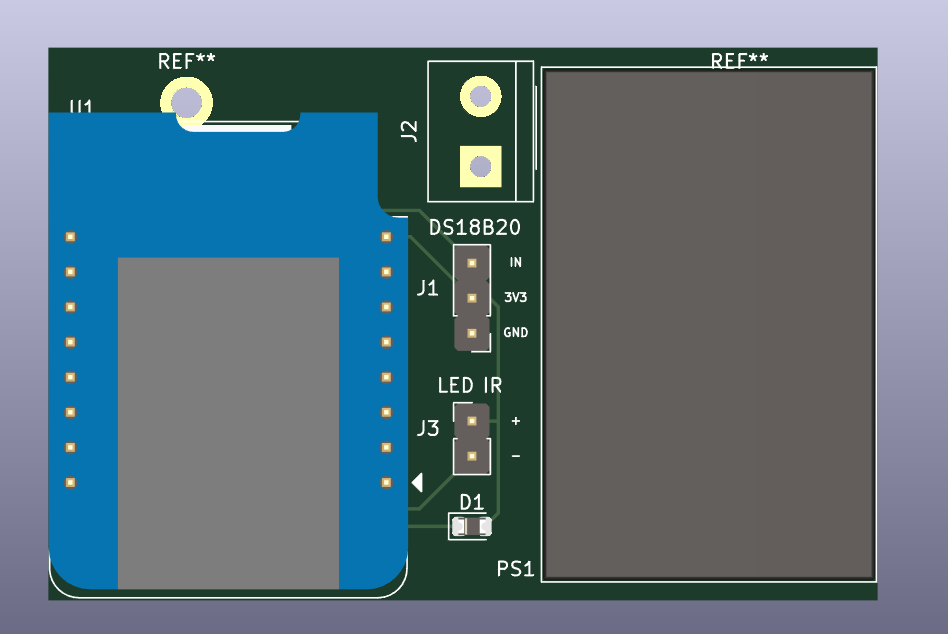

Clim driver
About the Clim driver PCB
Clim driver is an open source ESP8266 PCB design by mylife-home, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 60 × 40 mm, with 10 components from 10 distinct parts.
Its main chip is the WEMOS_D1_MINI, from the ESP8266 family. By type, the board carries 3 connectors, 3 resistors, 1 IC, 1 transistor and 1 diode.
It belongs with the iot & wireless designs in this gallery.
From the project
MyLife Home devices
- Wifi - doit tenir dans le boitier de clim directement - alimenté par la clim - le plus de contrôle possible - ajouter un capteur de température
- RDC: Toshiba air conditioner RAS-13BKV-E1 - R1: 4x Toshiba air conditioner RAS-05BKV-E - Telecommande : Toshiba WH-UA01NE - place derriere capot : 70x15x25 - place pompe relevage : - https://www.manomano.fr/p/pompe-relevage-climatisation-mini-orange-230v-aspen-3124579 - 39x34x80, prévoir sortie cable dans facade 39x34
Main components on the Clim driver
Clim driver bill of materials (BOM)
10 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WEMOS_D1_MINI WeMos_D1_mini | WEMOS_D1_mini_light | U1 |
| 1 | BSS138 | SOT-23 | Q1 |
| 1 | CONN_01X03_MALE Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | SCREW_TERMINAL_01X02 Screw_Terminal_01x02 | TerminalBlock_bornier-2_P5.08mm | J2 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | Alim RS PRO 5V 1A | Converter_ACDC_MeanWell_IRM-03-xx_THT | PS1 |
| 1 | LED | D_0805_2012Metric | D1 |
| 1 | 4.7KΩ | R_0402_1005Metric | R1 |
| 1 | 1KΩ | R_0603_1608Metric | R2 |
| 1 | C333138 18Ω/0.5W | R_1210_3225Metric | R3 |
Clim driver design files
The KiCad project lives in the mylife-home/mylife-home-devices repository on GitHub; these links point at the commit this page was built from.
Clim driver: common questions
What microcontroller does the Clim driver use?
The Clim driver is built around the WEMOS_D1_MINI, from the ESP8266 family.
How big is the Clim driver PCB?
The Clim driver measures 60 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Clim driver?
10 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Clim driver design files?
From the mylife-home/mylife-home-devices repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Clim driver design in my own project?
Yes, under the terms of its GPL-3.0 license, which mylife-home chose for the repository.
Can I test firmware for the Clim driver without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
