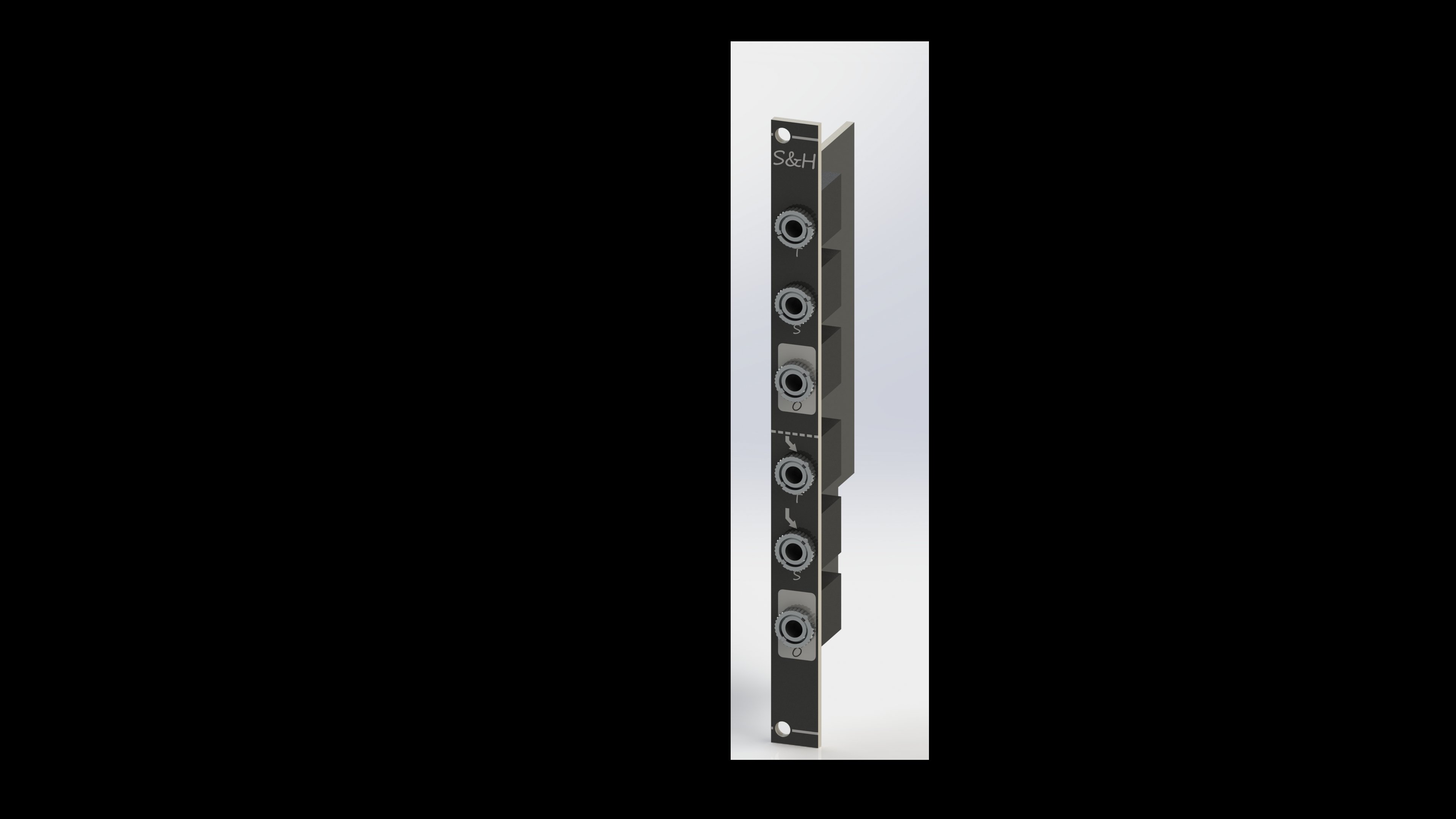

Sample and Hold SMD Main
mzuelch·CATs-Eurosynth·Modules/Slim Line/Sample&Hold SMD/Electronics/Main/Sample_and_Hold SMD Main.kicad_pcb
About the Sample and Hold SMD Main PCB
Sample and Hold SMD Main is an open source PCB design by mzuelch, published on GitHub under the MIT license. It is a 2-layer board measuring 38.1 × 101.6 mm, with 41 components from 18 distinct parts.
Other key parts include the OP07CDR and LF398. By type, the board carries 14 capacitors, 12 resistors, 7 connectors, 4 ICs and 4 diodes.
It belongs with the audio designs in this gallery.
From the project
Analog Synth Eurorack Modules

Main components on the Sample and Hold SMD Main
Sample and Hold SMD Main bill of materials (BOM)
41 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | OP07CDR | SOIC-8_3.9x4.9mm_P1.27mm | U1, U4 |
| 2 | LF398 | DIP-8_W7.62mm_LongPads | U2, U3 |
| 1 | Trigger 2 | PJ-324M-3 | J1 |
| 1 | In 2 | PJ-324M-3 | J2 |
| 1 | Trigger 1 | PJ-324M-3 | J3 |
| 1 | In 1 | PJ-324M-3 | J4 |
| 1 | Power | Power_2x8_Horizontal | J5 |
| 1 | Out 2 | PJ-324M-3 | J6 |
| 1 | Out 1 | PJ-324M-3 | J7 |
| 2 | 1N4148WS | D_SOD-323 | D1, D2 |
| 2 | 1N5819WS | D_SOD-323 | D3, D4 |
| 2 | 1NF 1nF | C_0402_1005Metric | C1, C2 |
| 8 | 100NF 100nF | C_0402_1005Metric | C3, C8, C9, C10, C11, C12, C13, C14 |
| 2 | 10µF | CP_EIA-3216-18_Kemet-A | C4, C5 |
| 2 | 10NF 10nF | C_0402_1005Metric | C6, C7 |
| 9 | 100K 100k | R_0402_1005Metric | R1, R2, R3, R4, R5, R6, R9, R11 +1 |
| 1 | 1k | R_0402_1005Metric | R8 |
| 2 | 1k | R_1206_3216Metric | R13, R14 |
Sample and Hold SMD Main design files
The KiCad project lives in the mzuelch/CATs-Eurosynth repository on GitHub; these links point at the commit this page was built from.
- LayoutModules/Slim Line/Sample&Hold SMD/Electronics/Main/Sample_and_Hold SMD Main.kicad_pcb
- SchematicModules/Slim Line/Sample&Hold SMD/Electronics/Main/Sample_and_Hold SMD Main.kicad_sch
- BOMModules/Slim Line/Sample&Hold SMD/Electronics/Main/production/Sample_and_Hold_SMD_Main_2024-01-10_16-55-45/bom.csv
Sample and Hold SMD Main: common questions
How big is the Sample and Hold SMD Main PCB?
The Sample and Hold SMD Main measures 38.1 × 101.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sample and Hold SMD Main?
41 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sample and Hold SMD Main design files?
From the mzuelch/CATs-Eurosynth repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Sample and Hold SMD Main design in my own project?
Yes, under the terms of its MIT license, which mzuelch chose for the repository.
