Xiao led module-

n2048-creative-technology·xiao-led-module-

Xiao led module- layout, top view — open source ESP32 board by n2048-creative-technology

About the Xiao led module-

Xiao led module- is an open source ESP32 PCB design by n2048-creative-technology, published on GitHub. It is a 2-layer board measuring 44 × 21 mm, with 52 components from 3 distinct parts.

Its main chip is the XIAO-ESP32-C3-DIP, from the ESP32 family. By type, the board carries 50 diodes, 1 IC and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

2 sided addressable LED matrix module for Xiao ESP32-C3

A 44 x 21 mm addressable-LED panel built around a Seeed Studio XIAO ESP32-C3, driving 50 WS2812B-compatible RGB LEDs (2020 package) arranged as two 25-LED daisy chains, plus a 4-pin JST-PH connector for external power/data breakout.

Full-resolution vector version: docs/images/schematic.pdf

Copper (F.Cu / B.Cu), silkscreen, and solder mask layers, board outline shown.

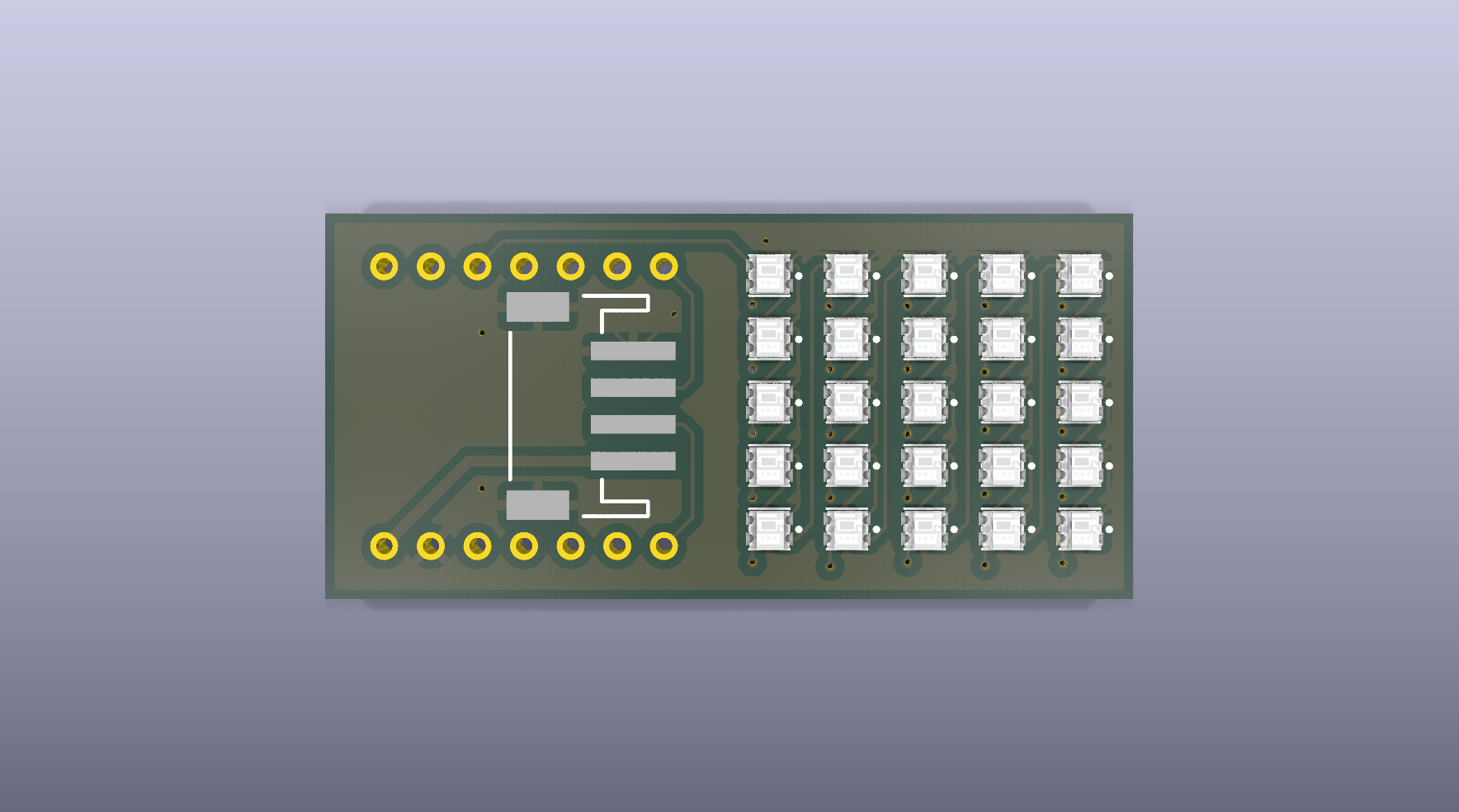

Xiao led module-, from the project README
From the project README

Main components on the Xiao led module-

XIAO-ESP32-C3-DIP

Xiao led module- bill of materials (BOM)

52 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DNP - hand-solder 2x 1x7 2.54mm female headers post-assembly
XIAO-ESP32-C3-DIP
U1
1
WAFER-PH2.0-4PWB
Conn_01x04
J2
50
XL-2020RGBC-2812B
WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +42

Xiao led module- design files

The KiCad project lives in the n2048-creative-technology/xiao-led-module- repository on GitHub; these links point at the commit this page was built from.

Xiao led module-: common questions

What microcontroller does the Xiao led module- use?

The Xiao led module- is built around the XIAO-ESP32-C3-DIP, from the ESP32 family.

How big is the Xiao led module-?

The Xiao led module- measures 44 × 21 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Xiao led module-?

52 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Xiao led module- design files?

From the n2048-creative-technology/xiao-led-module- repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Xiao led module- design in my own project?

The repository has no license, so all rights stay with n2048-creative-technology. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Xiao led module- without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
