Kicad tugas akhir

nanangcreacoll·kicad-tugas-akhir

Kicad tugas akhir PCB layout, top view — open source ESP32 board by nanangcreacoll

About the Kicad tugas akhir PCB

Kicad tugas akhir is an open source ESP32 PCB design by nanangcreacoll, published on GitHub. It is a 2-layer board measuring 120 × 100 mm, with 31 components from 22 distinct parts.

Its main chip is the ESP32-DEVKIT-V1, from the ESP32 family. Other key parts include the DCDC_StepDown_LM2596 and TMC2208_SILENTSTEPSTICK. By type, the board carries 6 diodes, 6 resistors, 5 ICs, 4 switches, 3 modules and 3 capacitors.

It belongs with the iot & wireless designs in this gallery.

From the project

Repository untuk file kicad tugas akhir.

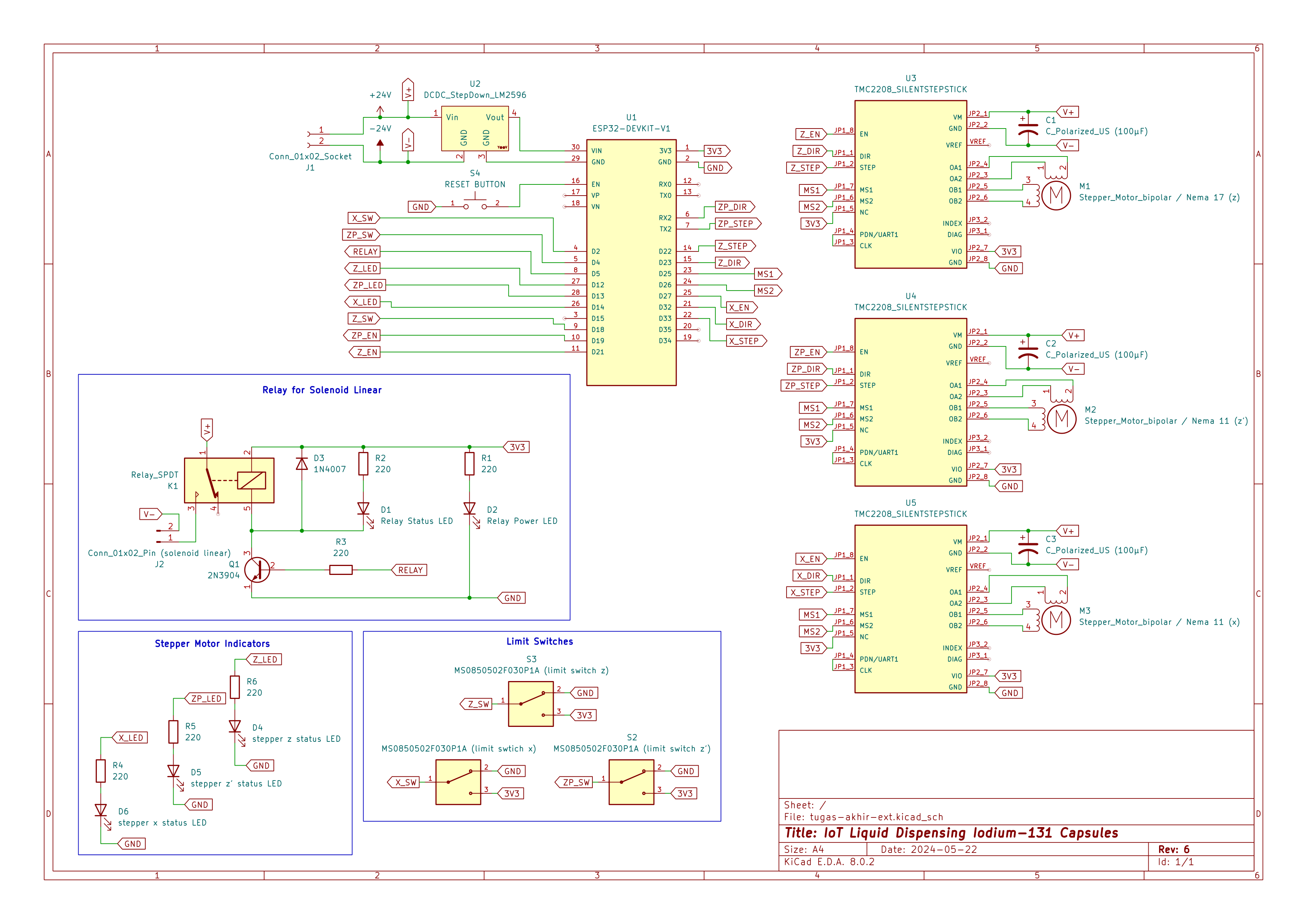

Kicad tugas akhir, from the project README
From the project README

Main components on the Kicad tugas akhir

ESP32-DEVKIT-V1DCDC_StepDown_LM2596TMC2208_SILENTSTEPSTICK

Kicad tugas akhir bill of materials (BOM)

31 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-DEVKIT-V1
U1
1
DCDC_StepDown_LM2596
U2
3
TMC2208_SILENTSTEPSTICK
U3, U4, U5
1
Stepper_Motor_bipolar / Nema 17 (z)
M1
1
Stepper_Motor_bipolar / Nema 11 (z')
M2
1
Stepper_Motor_bipolar / Nema 11 (x)
M3
1
2N3904
Q1
1
Conn_01x02_Socket
J1
1
Conn_01x02_Pin (solenoid linear)
J2
1
Relay_SPDT
K1
1
MS0850502F030P1A (limit swtich x)
S1
1
MS0850502F030P1A (limit switch z')
S2
1
MS0850502F030P1A (limit switch z)
S3
1
RESET BUTTON
S4
1
Relay Status LED
D1
1
Relay Power LED
D2
1
1N4007
D3
1
stepper z status LED
D4
1
stepper z' status LED
D5
1
stepper x status LED
D6
Show 2 more
QtyPartRefs
3
C_Polarized_US (100μF)
C1, C2, C3
6
220
R1, R2, R3, R4, R5, R6

Kicad tugas akhir design files

The KiCad project lives in the nanangcreacoll/kicad-tugas-akhir repository on GitHub; these links point at the commit this page was built from.

Kicad tugas akhir: common questions

What microcontroller does the Kicad tugas akhir use?

The Kicad tugas akhir is built around the ESP32-DEVKIT-V1, from the ESP32 family.

How big is the Kicad tugas akhir PCB?

The Kicad tugas akhir measures 120 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad tugas akhir?

31 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Kicad tugas akhir design files?

From the nanangcreacoll/kicad-tugas-akhir repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Kicad tugas akhir design in my own project?

The repository has no license, so all rights stay with nanangcreacoll. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Kicad tugas akhir without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
