Lueftermonster

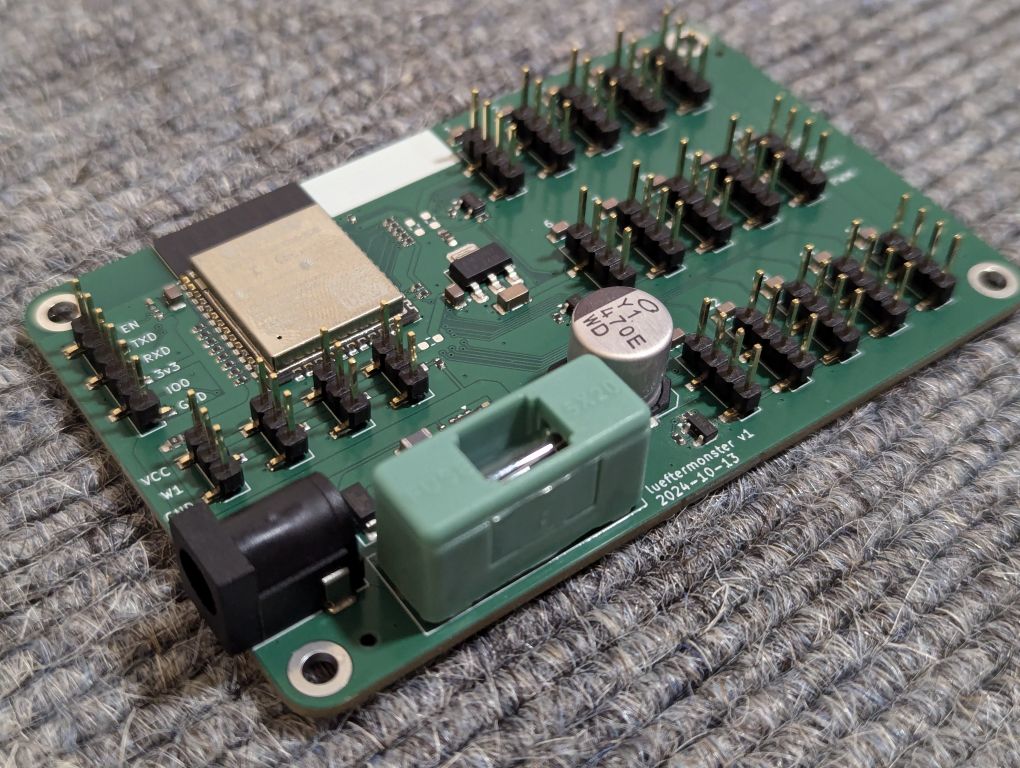

About the Lueftermonster PCB
Lueftermonster is an open source ESP32 PCB design by Nebukadneza, published on GitHub. It is a 2-layer board measuring 94 × 60 mm, with 92 components from 26 distinct parts.
Its main chip is the C701342, from the ESP32 family. Other key parts include the AOZ1280CI and AMS1117-5.0. By type, the board carries 33 resistors, 25 capacitors, 21 connectors, 4 transistors, 3 ICs and 3 inductors.
It belongs with the iot & wireless, sensors and usb & debug tools designs in this gallery.
From the project
Radiators can only radiate a certain amount of heat defined by their construction and size - unless we force some air through them! This can be done passively by building a "chimney" around them and using the chimney-effect, and/or by attaching fans. Many commercially available f
Radiators can only radiate a certain amount of heat defined by their construction and size - unless we force some air through them! This can be done passively by building a "chimney" around them and using the chimney-effect, and/or by attaching fans. Many commercially available fan-retrofitting kits or even radiators with fans included use noisy low quality fans, don´t allow for a lot of control, and are often very expensive. So you might want to add your own.
Main components on the Lueftermonster
Lueftermonster bill of materials (BOM)
92 components, 26 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C701342 ESP32-WROOM-32E | ESP32-WROOM-32D | U1 |
| 1 | AOZ1280CI Alpha & Omega Semiconductor Inc. | SOT-23-6 | U2 |
| 1 | AMS1117-5.0 Advanced Monolithic Systems | SOT-223-3_TabPin2 | U3 |
| 1 | DMP4025SFG-13 Q_PMOS_GSD Diodes Incorporated | Diodes_PowerDI3333-8 | Q1 |
| 3 | AO3400A Q_NMOS_GSD Alpha & Omega Semicon | SOT-23 | Q2, Q3, Q4 |
| 1 | DC-005-A200 Barrel_Jack XUNPU | XUNPU_DC-005-A200 | J1 |
| 15 | X6511WVS-04H-C60D48R1 Fan XKB Connection | PinHeader_1x04_P2.54mm_Vertical_SMD_Pin1Right | J2, J3, J4, J5, J6, J7, J8, J9 +7 |
| 1 | X6511WVS-06H-C60D48R2 PROG XKB Connection | PinHeader_1x06_P2.54mm_Vertical_SMD_Pin1Left | J17 |
| 4 | X6511WVS-03H-C60D48R2 W1 XKB Connection | PinHeader_1x03_P2.54mm_Vertical_SMD_Pin1Left | J18, J19, J20, J21 |
| 1 | PTF-77 Holder XFCN | XFCN_PTF-77 | F1 |
| 1 | SMAJ12CA 12V MDD(Microdiode Electronics) | D_SMA | D1 |
| 1 | B5819W SL SS15 Jiangsu Changjing Electronics Technology Co., Ltd. | D_SOD-123F | D2 |
| 2 | BLM31KN121SN1L 120R @ 100MHz Murata Electronics | L_1206_3216Metric | FB1, FB2 |
| 1 | DFE252012F-2R2M=P2 2u2 Murata Electronics | L_1008_2520Metric | L1 |
| 2 | CL21B104KCFNNNE 100n Samsung Electro-Mechanics | C_0805_2012Metric | C1, C3 |
| 3 | GRM21BR61H106KE43L 10u Murata Electronics | C_0805_2012Metric | C2, C8, C10 |
| 2 | CL05B103KB5NNNC 10n Samsung Electro-Mechanics | C_0402_1005Metric | C4, C9 |
| 1 | UWD1E471MCL1GS 470u Nichicon | CP_Elec_10x10 | C5 |
| 2 | 1206B475K500NT 4u7 FH (Guangdong Fenghua Advanced Tech) | C_1206_3216Metric | C6, C7 |
| 15 | 0805B105K500NT 1u FH (Guangdong Fenghua Advanced Tech) | C_0805_2012Metric | C11, C12, C13, C14, C15, C16, C17, C18 +7 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 22 | 0402WGF1002TCE 10k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R1, R2, R5, R14, R15, R16, R17, R18 +14 |
| 1 | 0402WGF4992TCE 49k9 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R3 |
| 1 | 0402WGF1582TCE 15k8 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R4 |
| 3 | 0402WGF100KTCE 1R UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R6, R7, R8 |
| 1 | 0402WGF4701TCE TBD UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R9 |
| 5 | 0603WAF0000T5E 0R UNI-ROYAL(Uniroyal Elec) | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10, R11, R12, R13, R32 |
Lueftermonster design files
The KiCad project lives in the Nebukadneza/lueftermonster repository on GitHub; these links point at the commit this page was built from.
Lueftermonster: common questions
What microcontroller does the Lueftermonster use?
The Lueftermonster is built around the C701342, from the ESP32 family.
How big is the Lueftermonster PCB?
The Lueftermonster measures 94 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Lueftermonster?
92 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Lueftermonster design files?
From the Nebukadneza/lueftermonster repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Lueftermonster design in my own project?
The repository has no license, so all rights stay with Nebukadneza. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Lueftermonster without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
