About the 4IN14NixieShield PCB

4IN14NixieShield is an open source PCB design by NEONTEC75, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 98.8 × 53.6 mm, with 43 components from 28 distinct parts.

Other key parts include the TLP627, K155ID1 and DS3231. By type, the board carries 11 resistors, 8 connectors, 6 ICs, 5 diodes, 5 capacitors and 3 switches.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

A minimalist nixie clock shield for Arduino Uno

The library with some examples: https://github.com/NEONTEC75/NixieLib

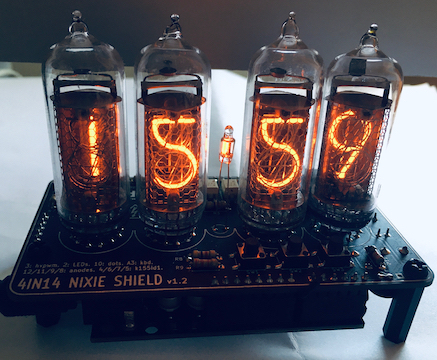

4IN14NixieShield, from the project README — From the project README

Main components on the 4IN14NixieShield

TLP627 K155ID1 DS3231

4IN14NixieShield bill of materials (BOM)

43 components, 28 distinct parts.

Qty	Part	Footprint	Refs
5	TLP627	TLP627	U1, U2, U3, U4, U5
1	K155ID1	DIP-16_W7.62mm	U6
1	DS3231	DS3231	A1
1	IRFD220	DIP-4_FET	Q1
1	I2C	PinSocket_1x05_P2.54mm_Vertical	J1
1	13	PinHeader_1x01_P2.54mm_Vertical	J3
1	EXT2	PinHeader_1x02_P2.54mm_Vertical	J4
1	UNO3	PinHeader_1x10_P2.54mm_Vertical	J5
1	UNO4	PinHeader_1x08_P2.54mm_Vertical	J6
1	UNO1	PinHeader_1x08_P2.54mm_Vertical	J7
1	UNO2	PinHeader_1x06_P2.54mm_Vertical	J8
1	EXT1	PinHeader_1x03_P2.54mm_Vertical	J9
1	1A	Fuse_Bourns_MF-RG300	F1
1	IN-3	NeonLamp	NL1
3	SW_Push	SW_PUSH_6mm_H4.3mm	S1, S2, S3
1	HER106	D_DO-41_SOD81_P3.81mm_Vertical_AnodeUp	D1
4	WS2812B	WS2812B	D2, D3, D4, D5
1	470uH	L_Radial_D7.8mm_P5.00mm_Fastron_07HCP	L1
1	4.7uF*350V	CP_Radial_D8.0mm_P3.50mm	C1
4	100n	C_0805_2012Metric	C2, C3, C4, C5

Show 8 more

Qty	Part	Footprint	Refs
1	300k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R1
1	22	R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical	R2
1	100k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R3
2	4k7	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R4, R8
3	10k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R5, R6, R7
1	100	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R9
1	2k2	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R10
1	470	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R11

4IN14NixieShield design files

The KiCad project lives in the NEONTEC75/4IN14NixieShield repository on GitHub; these links point at the commit this page was built from.

Layout4IN14NixieShield.kicad_pcb

4IN14NixieShield: common questions

How big is the 4IN14NixieShield PCB?

The 4IN14NixieShield measures 98.8 × 53.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 4IN14NixieShield?

43 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the 4IN14NixieShield design files?

From the NEONTEC75/4IN14NixieShield repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 4IN14NixieShield design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
